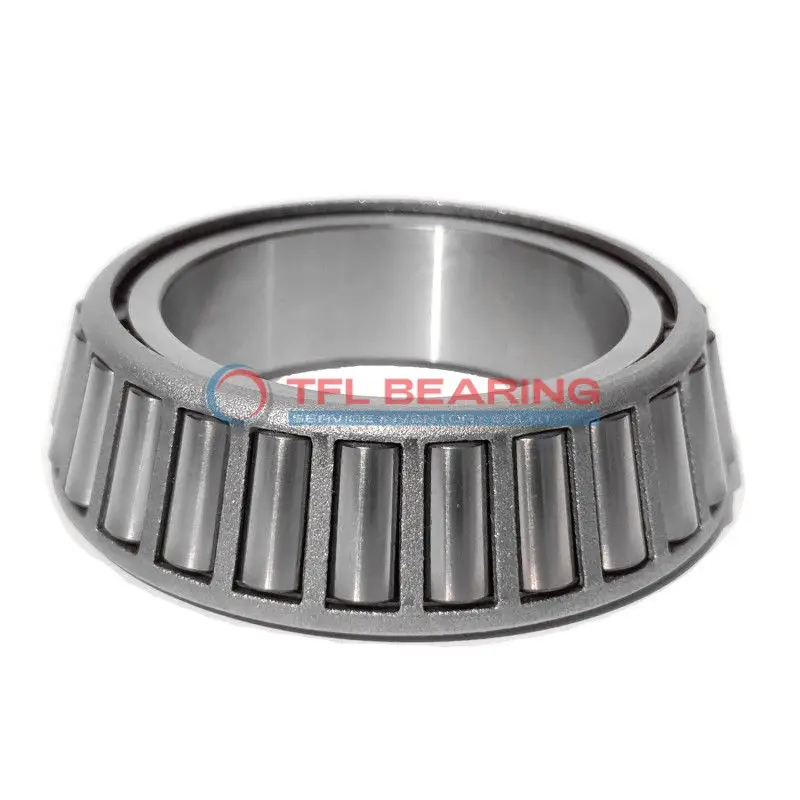

26126X Single Cones (Imperial)

26126X Single Cones (Imperial)

The 26126X is a single-row tapered roller bearing with a 1.26″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 13200 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures reliable performance. The bearing is part of the 26000 series and is interchangeable with Timken models, making it a practical choice for replacements.

With standard radial clearance and ABEC-1 rating, it suits various industrial applications. Ideal for use in gearboxes, axles, or machinery where combined loads are common. Compliant with RoHS and REACH standards for safe use.

The cone width of 0.745″ and effective center location of -0.16″ provide stable performance. Its robust construction ensures long service life even under demanding conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 26126X
  • Brand TFL
  • Interchangeable Brand Timken
  • System of Measurement Inch
  • Type Cones
  • Bearing Part Number 26126X-26274 , 26126X-26283 , 26126X-26300 , 26126X-26334
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Series 26000
  • Bore Dia 1.2598"
  • Bore Dia Tolerance +0.005" to 0
  • Cone Width 0.745"
  • Cone Width Tolerance +0.003" to -0.01
  • Cone Backface ToClear Radius 0.080"
  • Cone Frontface Backing Diameter 1.48"
  • Cone Backface Backing Diameter 1.59"
  • Cage Cone Frontface Clearance 0.09"
  • Cage Cone Backface Clearance 0"
  • Effective Center Location -0.16"
  • Ring Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 13200 lbf
  • Static Radial Load 13500 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3420 lbf
  • Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 23000 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2110 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 5960 lbf
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 26126X Bearing

26126X Bearing is crafted from chrome steel, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 13,200 lbf, ensuring reliable performance in various applications.

The tapered roller design of 26126X Bearing provides smooth operation and efficient load distribution.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

26126X Bearing’s steel cage keeps rollers aligned, reducing wear and extending service life.
Its standard radial clearance ensures compatibility with different operational requirements.

Application

Industrial Uses of 26126X Bearing
26126X Bearing is commonly used in heavy machinery like construction equipment and agricultural tractors, where its tapered roller design handles combined loads effectively. The open seal type allows for easy lubrication, extending service life in dusty environments.

Where Is 26126X Bearing Used?
You’ll often find 26126X Bearing in automotive wheel hubs and axle systems, thanks to its robust chrome steel construction. Its inch sizing makes it a seamless fit for American and British vehicle models.

Built for Heavy-Duty Use: 26126X Bearing
26126X Bearing excels in conveyor systems and mining equipment, where its high dynamic radial load capacity ensures reliable performance. The steel cage adds durability, even under continuous operation.

Automotive vs Aerospace: Applications of 26126X Bearing
In automotive applications, 26126X Bearing supports heavy axle loads, while in aerospace, its precision fits landing gear mechanisms. The ABEC-1 rating balances cost and performance for both sectors.

Perfect Fit for Automation: 26126X Bearing
26126X Bearing works well in robotic arms and assembly line machinery, where its tapered rollers provide smooth motion control. The standard radial clearance offers flexibility for various precision needs.
