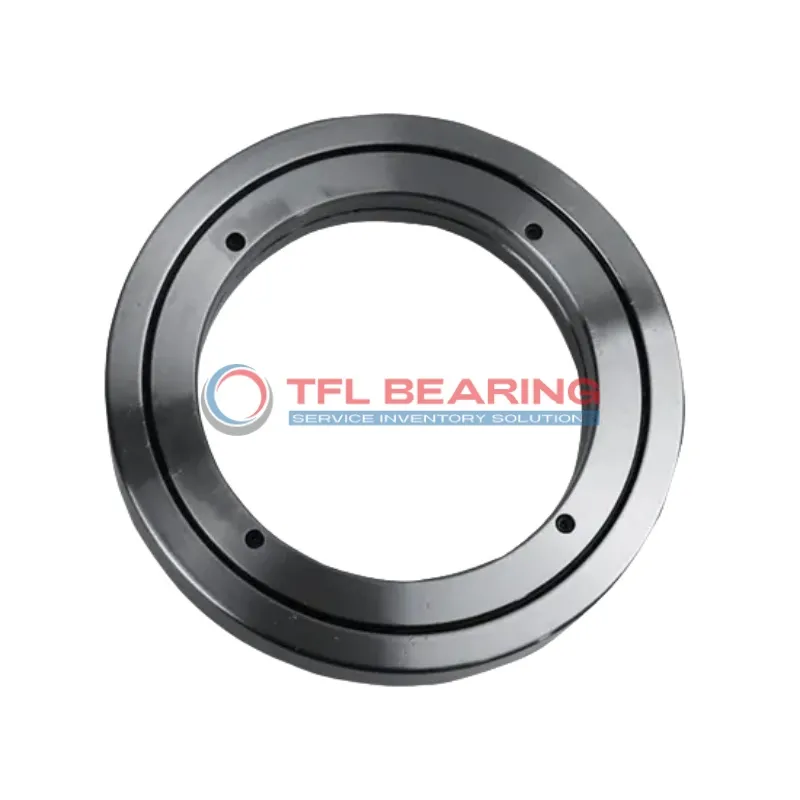

RE Crossed Roller Bearings RE10016

RE Crossed Roller Bearings RE10016

The RE10016 is a crossed roller bearing with a 100mm bore and 140mm outer diameter, designed for combined loads. Its compact 16mm width makes it suitable for tight spaces, while the steel construction ensures durability.

This bearing handles loads up to 31.7 kN and operates smoothly in temperatures from 0°C to 110°C. The open design allows easy lubrication through the 3mm and 1.6mm greasing holes.

Its press-fit shaft mount provides a secure installation, and the ABEC5 rating ensures reliable precision. The bearing is also available in higher ABEC7/9 grades for more demanding applications.

Ideal for rotary tables or industrial automation, this model is RoHS and REACH compliant. Weighing just 0.83kg, it balances strength and portability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RE10016
  • Brand TFL
  • Size 100 mm x 140 mm x 16 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 100 mm
  • Outer Dia 140 mm
  • Width 16 mm
  • Greasing Hole(a) 3 mm
  • Greasing Hole(b) 1.6 mm
  • R(min) 1 mm
  • Shoulder Height Ds(max) 109 mm
  • Shoulder Height Dh(min) 131 mm
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 31.7 kN
  • Basic Load Rating Co 48.6 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.83 Kg

Features

Performance Features of RE10016 Bearing

RE10016 Bearing is built with steel rings and rollers, offering strong resistance to combined loads.
Its basic load rating of 31.7 kN ensures reliable performance in various applications.
The crossed roller design provides high precision and stability, even under heavy loads.
With a temperature range of 0 to 230°F, it performs well in diverse operating conditions.

How Does RE10016 Bearing Reduce Friction?

RE10016 Bearing’s crossed roller design minimises friction, ensuring smooth and efficient operation.
The steel rollers and rings are precision-engineered to reduce wear and extend service life.
Lubrication is required to maintain optimal performance and reduce maintenance needs.
Its press-fit shaft mount type simplifies installation, saving time and effort.

Engineered for Precision: RE10016 Bearing

RE10016 Bearing is designed for high-precision applications with its ABEC5 rating.
The single-row construction and crossed roller arrangement enhance stability and accuracy.
With a width of just 16 mm, it fits into compact spaces without compromising performance.
Its basic load rating Co of 48.6 kN ensures durability under heavy loads.

Steel vs Ceramic Bearings: Strengths of RE10016 Bearing

RE10016 Bearing uses high-quality steel for both rings and rollers, ensuring durability.
The steel construction provides excellent load-bearing capacity and resistance to wear.
Unlike ceramic bearings, it is more cost-effective while still delivering reliable performance.
Its press-fit design and required lubrication make it easy to maintain and install.

Application

Industrial Uses of RE10016 Bearing
RE10016 Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The open seal type allows for easy lubrication, extending service life in demanding conditions.

What Makes RE10016 Bearing a Preferred Choice?
In robotics, RE10016 Bearing ensures smooth movement in articulated arms due to its high load capacity and compact width. The steel construction handles combined loads efficiently, making it ideal for automated systems.

Perfect Fit for Automation: RE10016 Bearing
RE10016 Bearing works well in 3D printers, where its ABEC5 precision supports accurate layer deposition. The press-fit mounting simplifies installation in tight spaces common in additive manufacturing equipment.

Automotive vs Aerospace: Applications of RE10016 Bearing
For automotive testing rigs, RE10016 Bearing offers reliable performance under dynamic loads. In aerospace applications, its temperature range suits auxiliary equipment like actuator mechanisms.

Essential Roles of RE10016 Bearing
Medical imaging devices benefit from RE10016 Bearing’s low vibration during gantry rotation. The steel rollers maintain consistent performance even after repeated sterilization cycles.
