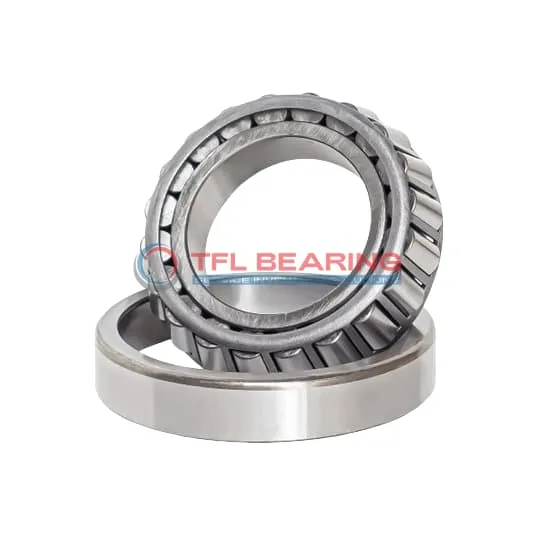

TS (Single Row Tapered Roller Bearings) (Imperial) 29685-29624

TS (Single Row Tapered Roller Bearings) (Imperial) 29685-29624

The 29685-29624 is a single-row tapered roller bearing with a 2.875″ bore and 4.5″ outer diameter, made from sturdy chrome steel. It handles combined loads up to 24800 lbf radially and 5370 lbf thrust, suitable for heavy-duty applications.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures from -30°C to 110°C.

This model is interchangeable with Timken bearings, making it a practical choice for replacements. Ideal for use in gearboxes, axles, or industrial machinery where combined loads are common.

Weighing 2.2 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29685-29624
  • Brand TFL
  • Interchangeable Timken
  • Size 2.875" x 4.5" x 1.0937"
  • Bore Dia 2.875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.5"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.875"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.0937"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.130"
  • Cone Frontface Backing Diameter 3.82"
  • Cone Backface Backing Diameter 3.39"
  • Cup Frontface Backing Diameter 4.33"
  • Cup Backface Backing Diameter 4.06"
  • Cage Cone Frontface Clearance 0.08"
  • Cage Cone Backface Clearance 0.08"
  • Effective Center Location 0.04"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 29685
  • Cup Part Number 29624
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 29600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24800 lbf
  • Static Radial Load 37200 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6440 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5370 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.2 lb

Features

Performance Features of 29685-29624 Bearing

29685-29624 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24,800 lbf, making it suitable for heavy-duty applications.
The steel cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Why Choose 29685-29624 Bearing for Precision Tasks?

29685-29624 Bearing features precise tolerances, ensuring accurate performance in demanding settings.
The tapered roller design distributes loads evenly, improving efficiency and reducing friction.
Its ABEC-1 rating guarantees consistent quality for industrial applications.
The standard radial clearance allows for smooth operation under varying load conditions.

Engineered for Reliability: 29685-29624 Bearing

29685-29624 Bearing’s single-row construction provides stability and strength in combined load scenarios.
The chrome steel materials resist wear, extending the bearing’s service life.
With a static radial load capacity of 37,200 lbf, it handles high-stress environments effectively.
Regular lubrication ensures optimal performance and longevity.

Steel vs Ceramic Bearings: Strengths of 29685-29624 Bearing

29685-29624 Bearing uses chrome steel for both rings and rollers, balancing cost and performance.
This material choice ensures durability and resistance to heavy loads in industrial applications.
The steel cage maintains roller alignment, contributing to smooth operation.
Its compliance with RoHS and REACH standards makes it an environmentally friendly option.

Application

Industrial Uses of 29685-29624 Bearing
29685-29624 Bearing is commonly used in heavy machinery like construction equipment, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in rugged environments.

Where Is 29685-29624 Bearing Used?
You’ll often find 29685-29624 Bearing in agricultural machinery, supporting axles and gearboxes with its reliable performance. Its inch sizing makes it a good fit for North American equipment standards.

Built for Heavy-Duty Use: 29685-29624 Bearing
29685-29624 Bearing excels in mining applications, where its high dynamic radial load capacity keeps operations running smoothly. The open design allows for easy lubrication, extending service life.

Automotive vs Aerospace: Applications of 29685-29624 Bearing
In automotive systems, 29685-29624 Bearing is ideal for wheel hubs and transmissions, thanks to its robust design. While not typically used in aerospace, it’s a workhorse in industrial settings.

Key Fields for 29685-29624 Bearing
29685-29624 Bearing is a solid choice for conveyor systems, where its tapered rollers manage both radial and thrust loads. The steel cage adds stability, even in high-temperature environments.
