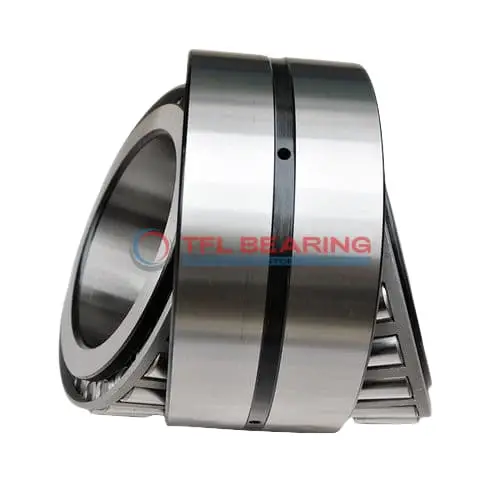

567A-562DS TDO (Two-Row Double-Outer Race) (Imperial)

567A-562DS TDO (Two-Row Double-Outer Race) (Imperial)

The 567A-562DS is a two-row tapered roller bearing with a 2.8125″ bore and 5.4375″ outer diameter, built from sturdy chrome steel for heavy-duty use. It handles combined loads with a dynamic radial capacity of 76,900 lbf and operates smoothly in temperatures from -30°C to 110°C.

Its double-row design offers stability under high radial and thrust loads, while the open seal allows easy lubrication. The steel cage ensures durability, making it suitable for long-term industrial applications.

This bearing is ideal for machinery requiring robust performance, such as construction equipment or heavy vehicles. Its standard radial clearance and ABEC-1 rating provide reliable precision for general industrial use.

Weighing 11.040 lb, it’s a solid choice for applications demanding strength and endurance. Compliant with RoHS and REACH standards, it’s a safe and dependable option for various settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 567A-562DS
  • Brand TFL
  • Size 2.8125" x 5.4375" x 1.424"
  • Bore Dia 2.8125"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 5.4375"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 2.5625"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 1.424"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 3.1874"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.06"
  • Cone Backface Backing Diameter 3.39"
  • Cup Frontface Backing Diameter 4.80"
  • Cage Cone Backface Clearance 0.1"
  • Dynamic Radial Load 76900 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 567A
  • Cup Part Number 562DS
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 565
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 7130 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 19900 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 11.040 lb

Features

Performance Features of 567A-562DS Bearing

567A-562DS Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 76,900 lbf, ensuring reliable performance in heavy-duty applications.

The double-row tapered roller design enhances stability and load distribution.
This construction allows 567A-562DS Bearing to handle both radial and thrust loads efficiently.

With a temperature range of -30° to 110°C, it performs well in various environments.
The steel cage maintains roller alignment, reducing wear and extending service life.

567A-562DS Bearing requires regular lubrication for optimal performance.
Its standard radial clearance ensures smooth operation in most industrial applications.

Application

Industrial Uses of 567A-562DS Bearing
The 567A-562DS Bearing is commonly used in heavy machinery, such as construction equipment and mining tools, where its double-row design handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability in demanding environments.

Where Is 567A-562DS Bearing Used?
You’ll often find 567A-562DS Bearing in automotive applications like truck wheel hubs, where its tapered roller design provides stability under heavy loads. The inch sizing makes it a fit for many North American vehicle models.

Built for Heavy-Duty Use: 567A-562DS Bearing
In industrial gearboxes, 567A-562DS Bearing offers reliable performance thanks to its robust steel cage and high dynamic load capacity. Its open design simplifies lubrication, extending service life in continuous operation.

Automotive vs Aerospace: Applications of 567A-562DS Bearing
While 567A-562DS Bearing excels in truck and bus axles, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance in both high-stress environments.

Key Fields for 567A-562DS Bearing
567A-562DS Bearing is ideal for agricultural machinery, where its tapered rollers handle uneven loads in tractors and harvesters. The standard radial clearance allows for smooth operation in varying temperatures.
