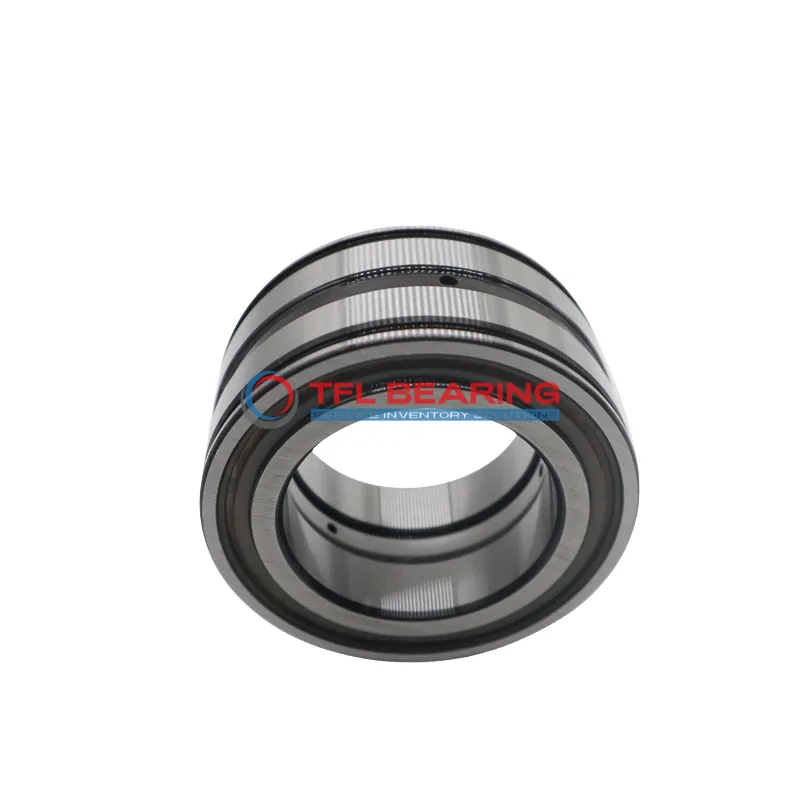

Double Row Full Complement Cylindrical Roller Bearings NNCF 4872 CV

Double Row Full Complement Cylindrical Roller Bearings NNCF 4872 CV

The NNCF 4872 CV is a double-row cylindrical roller bearing with a 360mm bore and 440mm outer diameter, built for heavy loads. Its full-complement design (no cage) boosts radial load capacity up to 210375 lbf, while handling combined loads smoothly.

Made from durable 52100 chrome steel, it withstands temperatures from -30°C to 110°C and speeds up to 1000 RPM. The open seal allows flexible lubrication with grease or oil, making maintenance straightforward.

With a compact width of 80mm and chamfered edges (2.1mm), it fits snugly in tight spaces. Ideal for industrial gearboxes or heavy machinery where high radial loads and axial displacement (up to 6mm) are common.

This model is interchangeable with SKF bearings and complies with RoHS and REACH standards, ensuring reliable performance and safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NNCF 4872 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 360 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 440 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 80 mm
  • Width Tolerance -0.40mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Chamfer Dimension r3,4(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 6 mm
  • Ring Material 52100 Chrome Steel
  • Roller Material 52100 Chrome Steel
  • Cage Material Full complement (no cage)
  • Dynamic Radial Load 210375 lbf
  • Static Radial Load 573750 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant

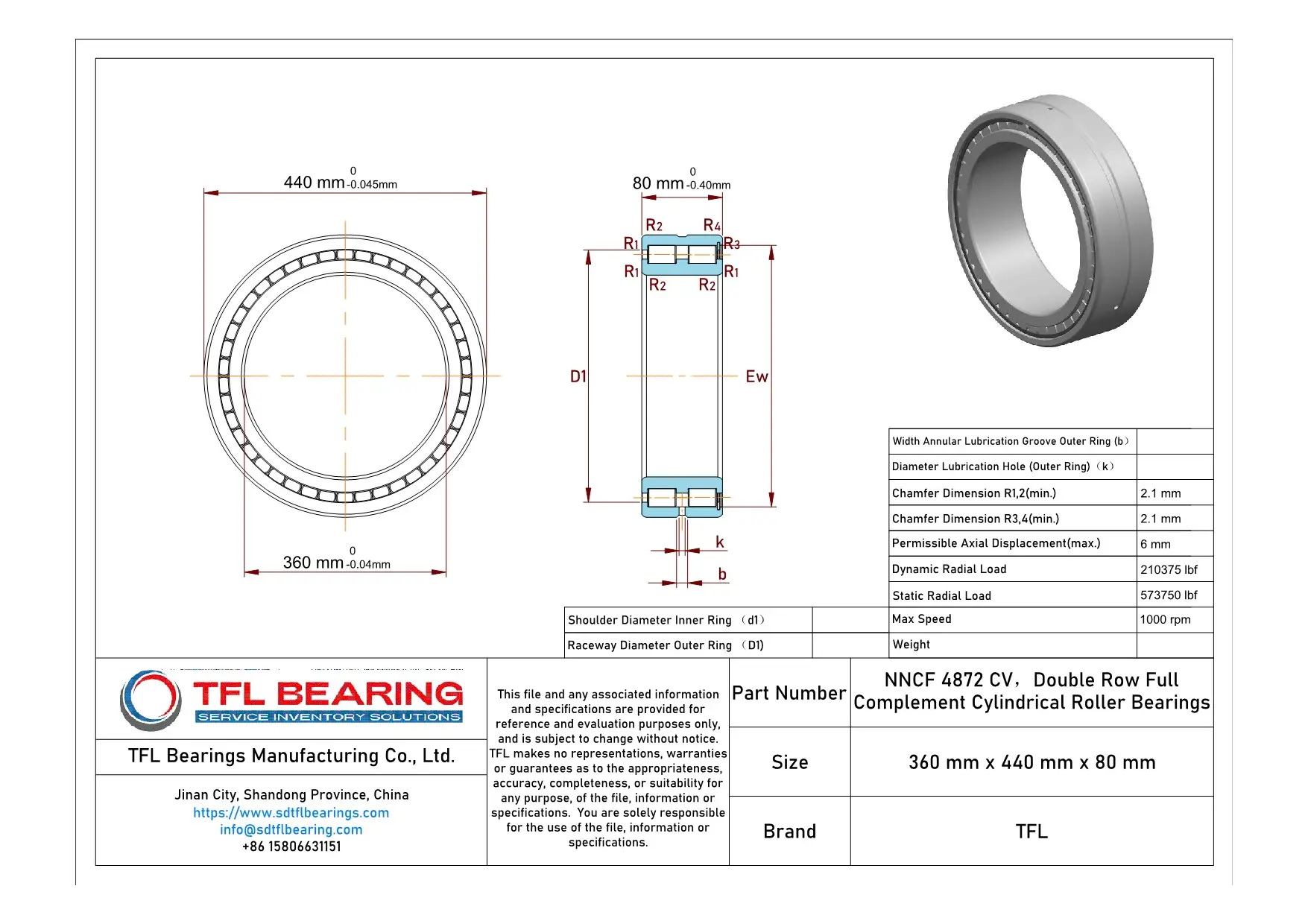

Double Row Full Complement Cylindrical Roller Bearings NNCF 4872 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NNCF 4872 CV Bearing

NNCF 4872 CV Bearing is constructed with double-row full complement cylindrical rollers, enhancing its load-bearing capacity.
Its dynamic radial load rating reaches 210375 lbf, making it suitable for heavy-duty applications.

The absence of a cage allows for maximum roller count, improving load distribution and durability.
Made from 52100 chrome steel, NNCF 4872 CV Bearing resists wear and maintains performance under stress.

With a maximum speed of 1000 rpm, it balances efficiency and reliability in demanding conditions.
The open design simplifies lubrication, whether using grease or oil, for smooth operation.

NNCF 4872 CV Bearing operates in temperatures from -30° to 110°C, adapting to various environments.
Its robust construction ensures long service life, reducing the need for frequent replacements.

Application

Industrial Uses of NNCF 4872 CV Bearing
NNCF 4872 CV Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity without a cage, making it suitable for slow-speed, high-load applications.

In wind turbine systems, NNCF 4872 CV Bearing supports the main shaft, providing stability under varying wind conditions. Its chrome steel construction offers durability in harsh outdoor environments, while the open seal design allows for easy lubrication.

For industrial presses, NNCF 4872 CV Bearing’s combined load capability ensures smooth operation during high-pressure cycles. The metric dimensions and grease/oil compatibility make it a versatile choice for global equipment standards.
