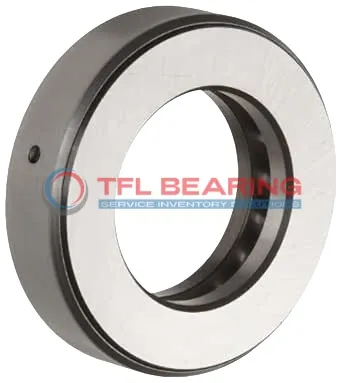

Thrust Ball Bearing With Outside Band T-100-25

Thrust Ball Bearing With Outside Band T-100-25

The T-100-25 is a thrust ball bearing with a 1.81-inch bore and 2.75-inch outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 4820 lbf and performs well in temperatures from -30°C to 110°C.

Its design includes an outside band for added stability, and it requires regular lubrication for optimal performance. The bearing can manage varying loads, from 3175 lbf at 100 RPM to 1405 lbf at 1500 RPM.

With 22 balls measuring 5/16-inch each, it ensures smooth operation under thrust conditions. Weighing 0.24kg, it’s a sturdy yet manageable choice for industrial applications.

Ideal for machinery where thrust loads are common, this bearing is RoHS and REACH compliant, making it safe and reliable for various uses. Its inch measurements make it suitable for equipment requiring imperial-sized components.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-25
  • Brand TFL
  • Bore Dia 1.812500"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.843750"
  • Outer Dia 2.75"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.687500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 5/16"
  • Ball Qty 22
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 4820 lbf
  • Dynamic Thrust Load(100 RPM) 3175 lbf
  • Dynamic Thrust Load(500 RPM) 1955 lbf
  • Dynamic Thrust Load(1500 RPM) 1405 lbf
  • Static Thrust Load 19196 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.24 kg
Thrust Ball Bearing With Outside Band T-100-25 dimension drawing
Download DWG Download PDF

Features

How Does T-100-25 Bearing Handle Heavy Loads?

T-100-25 Bearing is built with 52100 chrome steel rings and balls, offering robust resistance to high thrust loads.
Its static thrust load capacity reaches 19196 lbf, ensuring dependable performance in heavy-duty applications.

The bearing’s design includes 22 balls, each 5/16″ in diameter, providing balanced load distribution.
This configuration helps reduce wear and extends operational life under varying speeds.

T-100-25 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its inch-based measurements ensure compatibility with systems requiring precise imperial sizing.

Application

Industrial Uses of T-100-25 Bearing
T-100-25 Bearing is commonly used in industrial machinery, especially in applications that require handling axial loads, such as heavy-duty presses and conveyor systems. Its inch sizing makes it a good fit for equipment designed to imperial specifications.

What Makes T-100-25 Bearing a Preferred Choice?
In automotive applications, T-100-25 Bearing works well in gearboxes and clutch assemblies, where its high static thrust load capacity ensures durability. The chrome steel construction also helps it withstand demanding conditions.

Built for Heavy-Duty Use: T-100-25 Bearing
For automation systems, T-100-25 Bearing provides reliable performance in robotic arms and assembly line equipment. Its precise tolerances contribute to smooth operation in repetitive tasks.

Medical vs Industrial: Where T-100-25 Bearing Excels
While not typically used in medical devices, T-100-25 Bearing is ideal for industrial settings like pumps and compressors. Its robust design handles high loads without compromising performance.

Practical Applications of T-100-25 Bearing
In household appliances like washing machines, T-100-25 Bearing supports rotating parts that require consistent thrust load handling. The lubrication requirement ensures long-term reliability in everyday use.
