Thrust Ball Bearing With Outside Band T-100-24

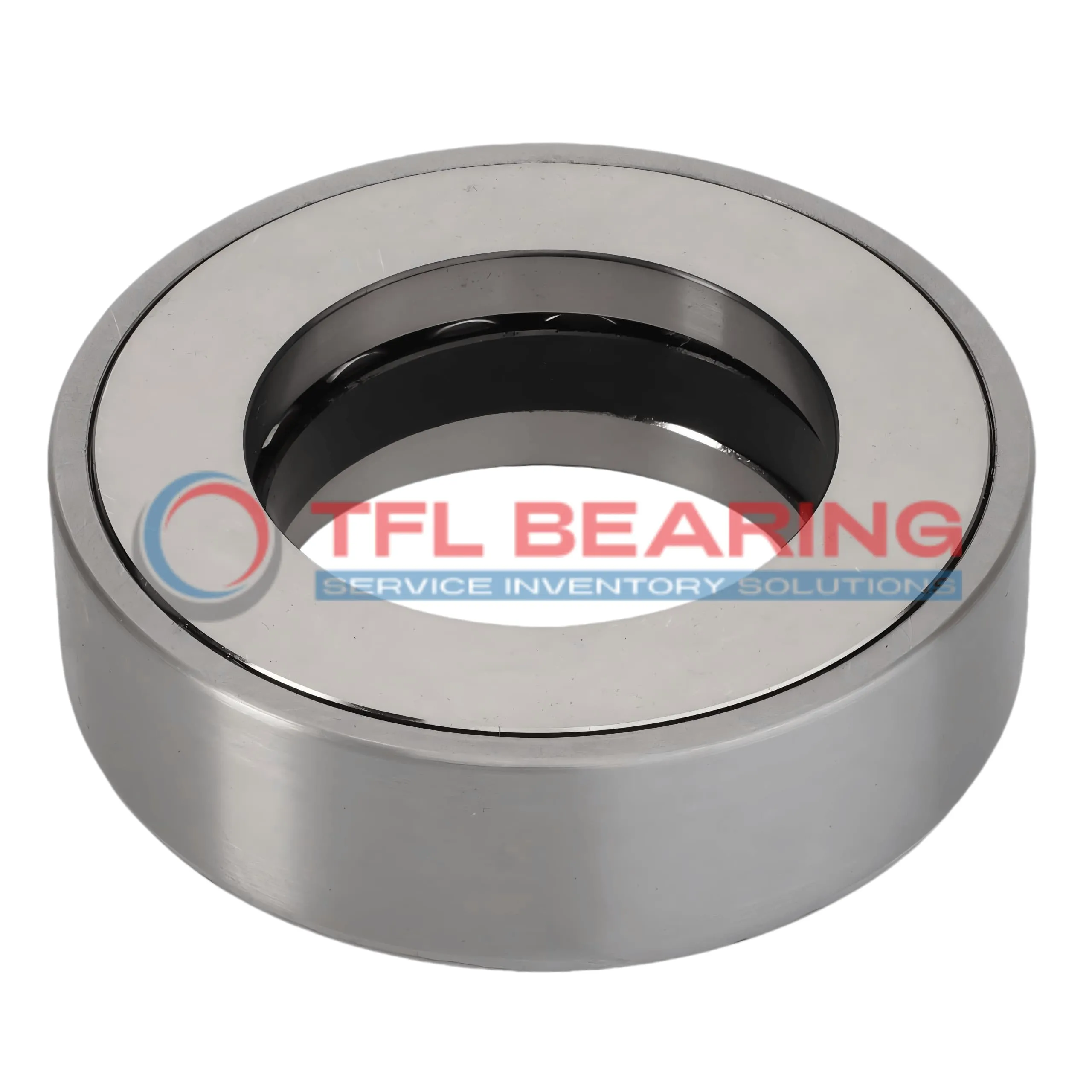

Thrust Ball Bearing With Outside Band T-100-24

The T-100-24 is a thrust ball bearing measuring 1.69″ by 2.59″ by 0.69″, designed to handle heavy thrust loads up to 4750 lbf. Made from durable 52100 chrome steel, it offers reliable performance in temperatures from -30°C to 110°C.

With a bore diameter of 1.69″ and an outer diameter of 2.59″, this bearing fits snugly in various setups. Its 21 steel balls, each 5/16″ in size, ensure smooth rotation under pressure.

The bearing requires regular lubrication for optimal performance. It’s suitable for applications like heavy machinery or industrial equipment where thrust loads are common.

Compliant with RoHS and REACH standards, it’s a safe and dependable choice. Weighing just 0.21kg, it’s lightweight yet built to last.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number T-100-24
  • Brand TFL
  • Bore Dia 1.687500"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.718750"
  • Outer Dia 2.593750"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.687500"
  • Width Tolerance -0.005" to +0.005"
  • Ball Dia 5/16"
  • Ball Qty 21
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 4750 lbf
  • Dynamic Thrust Load(100 RPM) 3130 lbf
  • Dynamic Thrust Load(500 RPM) 1930 lbf
  • Dynamic Thrust Load(1500 RPM) 1385 lbf
  • Static Thrust Load 18323 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.21 kg
Thrust Ball Bearing With Outside Band T-100-24 dimension drawing
Download DWG Download PDF

Features

How Does T-100-24 Bearing Handle Heavy Loads?

T-100-24 Bearing is built with 52100 chrome steel rings and balls, offering strong resistance to high thrust loads.
Its static thrust load capacity reaches 18323 lbf, making it suitable for demanding industrial applications.

The bearing’s precise ball alignment ensures smooth operation even under heavy stress.
With a temperature range of -30° to 110°C, it performs reliably in various environments.

T-100-24 Bearing requires lubrication to maintain optimal performance over time.
Its durable construction reduces maintenance needs while ensuring long service life.

Application

Industrial Uses of T-100-24 Bearing
T-100-24 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gear reducers, where its inch sizing fits standard American equipment. The chrome steel construction ensures it can handle substantial thrust loads without compromising performance.

Where Is T-100-24 Bearing Used?
You’ll find T-100-24 Bearing in automotive applications like steering systems, where its precise tolerances and high static thrust load capacity provide reliable support. Its durability makes it a go-to for long-term use in demanding conditions.

Built for Heavy-Duty Use: T-100-24 Bearing
T-100-24 Bearing excels in industrial fans and compressors, thanks to its robust design and ability to operate under varying speeds. The required lubrication ensures smooth performance even in high-temperature environments.

Automotive vs Aerospace: Applications of T-100-24 Bearing
In automotive settings, T-100-24 Bearing supports clutch mechanisms, while in aerospace, it’s used in auxiliary equipment due to its reliable thrust handling. The inch measurements make it versatile for different industry standards.

Perfect Fit for Automation: T-100-24 Bearing
T-100-24 Bearing is ideal for robotic arms and conveyor systems, where its consistent performance under dynamic loads keeps operations running smoothly. The stainless steel components add to its longevity in high-use scenarios.
