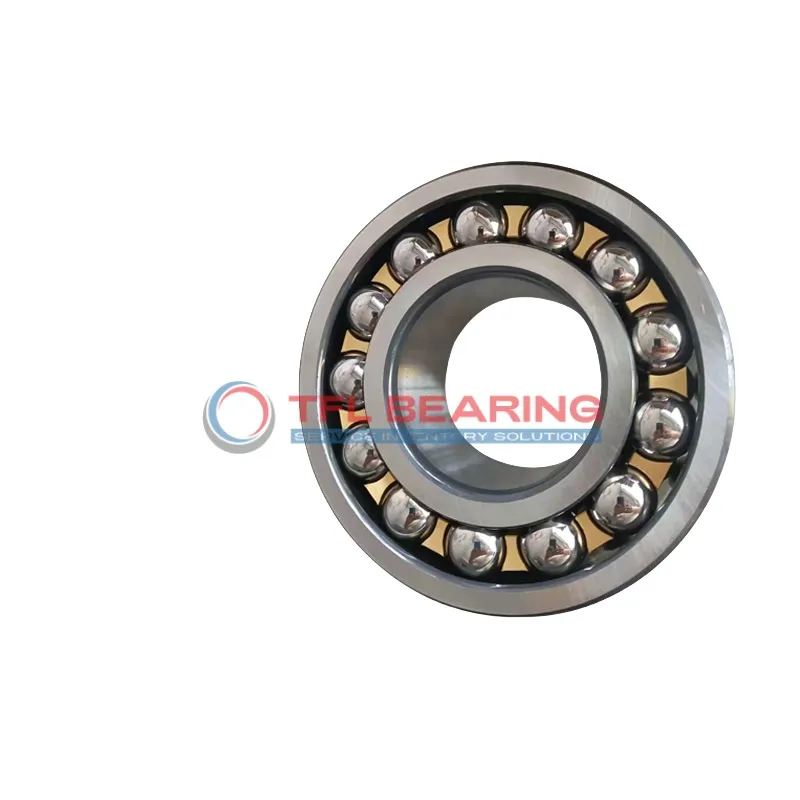

Self Aligning Ball Bearings 2318 M C/3

Brand: TFL Bearing Interchangeable: SKF 2318 M C/3 90 mm × 190 mm × 64 mm Metric Open
Part number: 2318 M C/3
Self Aligning Ball Bearings 2318 M C/3
In Stock
US$730.32 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia190 mm
Outer Dia Tolerance-0.03mm to 0
Width64 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring121 mm
Internal Diameter On Outer Ring162.2 mm
Chamfer Dimension3 mm
Performance
Dynamic Radial Load33,975 lbf
Static Radial Load12,825 lbf
Temperature Range-30° to 110 °C
Max Speed4,500 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeCylindrical
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceCN
Weight8.45 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 2318 M C/3 is a self-aligning ball bearing with a 90mm bore and 190mm outer diameter, built to handle heavy radial loads up to 33975 lbf. Its double-row design and chrome steel construction ensure durability and smooth operation.

The open seal type allows for easy lubrication, while the brass cage reduces friction for quieter performance. It can handle speeds up to 4500 RPM and operates in temperatures from -30°C to 110°C.

With a CN radial clearance, it accommodates minor misalignments, making it ideal for applications like conveyor systems or industrial fans. Weighing 8.45kg, it’s a sturdy choice for heavy-duty machinery.

This model is interchangeable with SKF bearings and complies with RoHS and REACH standards, ensuring safety and reliability.

Features

Performance Features of 2318 M C/3 Bearing

2318 M C/3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 33975 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 4,500 rpm, it balances durability and efficiency.

2318 M C/3 Bearing operates smoothly in temperatures from -30° to 110°C, adapting to various environments.
Its double-row construction enhances load distribution, improving stability under stress.

The open design simplifies maintenance, while the cylindrical bore ensures easy installation.
This bearing is ideal for applications requiring precision and long service life.

Application

Industrial Uses of 2318 M C/3 Bearing
2318 M C/3 Bearing is commonly used in heavy machinery like conveyor systems and industrial fans, where its double-row design handles radial loads with ease. The brass cage ensures smooth rotation even under continuous operation.

In automotive applications, 2318 M C/3 Bearing fits well in gearboxes and drivetrains, providing reliable performance under varying loads. Its metric dimensions make it a versatile choice for European and Asian vehicle models.

For automation equipment, 2318 M C/3 Bearing’s self-aligning feature compensates for minor misalignments in robotic arms. The chrome steel construction offers durability in high-precision tasks.

Where Is 2318 M C/3 Bearing Used?
You’ll often find 2318 M C/3 Bearing in industrial pumps, where its radial load capacity and brass cage reduce friction. The open seal design allows for easy lubrication maintenance.

In wind turbines, 2318 M C/3 Bearing supports rotor shafts, handling both radial and slight axial loads. Its temperature range makes it suitable for outdoor applications in varying climates.

Built for Heavy-Duty Use: 2318 M C/3 Bearing
2318 M C/3 Bearing excels in mining equipment, where its robust construction withstands harsh conditions. The double-row design distributes loads evenly, extending service life.

For construction machinery, 2318 M C/3 Bearing’s self-aligning capability adapts to dynamic loads. The chrome steel rings and balls ensure consistent performance under stress.

Automotive vs Aerospace: Applications of 2318 M C/3 Bearing
In automotive systems, 2318 M C/3 Bearing is ideal for wheel hubs and transmissions, offering durability and load capacity. Its brass cage reduces noise and vibration.

For aerospace applications, 2318 M C/3 Bearing’s precision and reliability make it suitable for auxiliary systems. The metric sizing ensures compatibility with international standards.
