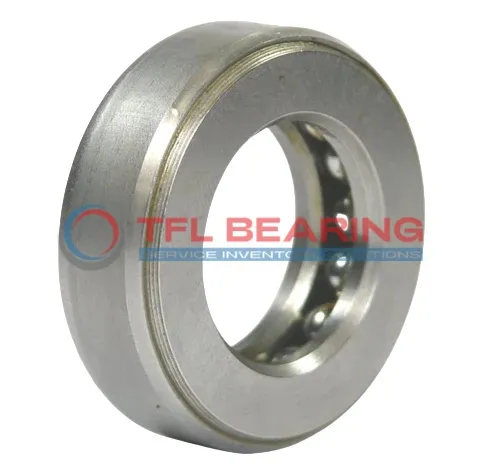

Thrust Ball Bearing With Outside Band D35

Thrust Ball Bearing With Outside Band D35

The D35 is a thrust ball bearing with a 2.625-inch bore and 4.344-inch outer diameter, crafted from durable 52100 chrome steel. It handles thrust loads up to 18100 lbf and operates smoothly at speeds up to 1600 RPM.

Its sturdy design includes an outside band for added stability, making it reliable under heavy loads. The bearing requires regular lubrication to maintain optimal performance.

Suitable for temperatures from -30°C to 110°C, it’s ideal for industrial machinery or automotive applications. Compliant with RoHS and REACH standards, it’s a safe and dependable choice.

Weighing 1.95 lbs, it’s robust yet manageable for its size. Perfect for equipment where high thrust loads are common.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D35
  • Brand TFL
  • Bore Dia 2.625"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 2.656"
  • Outer Dia 4.344"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 1"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 18100 lbf
  • Static Thrust Load 49000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1600 rpm
  • Weight 1.95 lbs
Thrust Ball Bearing With Outside Band D35 dimension drawing
Download DWG Download PDF

Features

Why Choose D35 Bearing for Precision Tasks?

D35 Bearing is crafted from 52100 chrome steel, offering strong resistance to thrust loads up to 18100 lbf.
Its precise bore diameter of 2.625″ with tight tolerance ensures accurate fitment in various applications.

The bearing operates smoothly within a temperature range of -30° to 110°C, making it versatile for different environments.
With a maximum speed of 1,600 rpm, it balances performance and durability.

D35 Bearing’s inch-based measurements provide compatibility with systems requiring imperial units.
Its static thrust load capacity of 49000 lbf ensures reliability under heavy loads.

The design requires lubrication, which helps maintain smooth operation over time.
This makes D35 Bearing a practical choice for machinery needing consistent performance.

Application

Ideal for Precision: D35 Bearing
D35 Bearing is commonly used in industrial settings, such as heavy machinery and hydraulic systems, where its inch sizing fits standard equipment perfectly. The chrome steel construction ensures it can handle significant thrust loads without compromising performance.

In automotive applications, D35 Bearing is often found in gearboxes and drivetrains, providing reliable support under high-pressure conditions. Its precise tolerances make it a dependable choice for maintaining smooth operation in demanding environments.

For automation systems, D35 Bearing’s durability and load capacity make it suitable for robotic arms and conveyor belts. The need for regular lubrication ensures long-term reliability in continuous-use scenarios.

Medical devices like diagnostic equipment benefit from D35 Bearing’s consistent performance and resistance to wear. Its compliance with RoHS and REACH standards makes it safe for use in sensitive environments.

In household appliances, D35 Bearing can be found in heavy-duty fans and power tools, where its robust design ensures longevity. The inch measurements make it easy to replace in existing systems.
