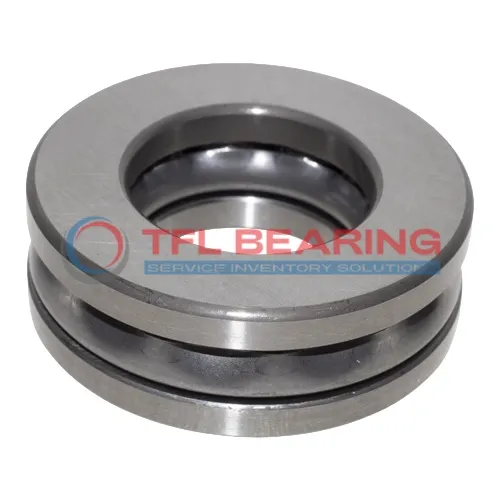

Thrust Ball Bearing With Outside Band B41

Thrust Ball Bearing With Outside Band B41

The B41 thrust ball bearing measures 3.25″ in bore diameter and 4.969″ in outer diameter, with a width of 1.125″. Made from durable 52100 chrome steel, it’s built to handle heavy thrust loads up to 62,000 lbf.

Its outside band design provides stability during operation, while the inch measurements make it compatible with machinery using imperial units. The bearing requires regular lubrication for optimal performance.

Suitable for moderate-speed applications up to 1500 RPM, it performs well in temperatures from -30°C to 110°C. Ideal for industrial equipment where space is limited but high thrust capacity is needed.

Weighing 1.22kg, it’s robust yet manageable for installation. Compliant with RoHS and REACH standards, ensuring safe use in various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number B41
  • Brand TFL
  • Bore Dia 3.25"
  • Bore Dia Tolerance +0.002" to +0.004"
  • Inner Dia Housing Washer 3.281"
  • Outer Dia 4.969"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 1.125"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 2.2300 lbf
  • Static Thrust Load 62000 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1500 rpm
  • Weight 1.22 kg
Thrust Ball Bearing With Outside Band B41 dimension drawing
Download DWG Download PDF

Features

How Is B41 Bearing Engineered for Reliability?

B41 Bearing features 52100 chrome steel rings and balls, offering strong resistance to high thrust loads.
Its static thrust load capacity reaches 62,000 lbf, making it suitable for heavy-duty applications.
The inch-sized design ensures compatibility with various industrial equipment.
With a temperature range of -30° to 110°C, it performs reliably in diverse conditions.

Application

Industrial Uses of B41 Bearing
B41 Bearing is commonly used in heavy machinery, such as hydraulic presses and industrial pumps, where its inch sizing fits standard equipment. The chrome steel construction ensures it handles high thrust loads reliably.

What Makes B41 Bearing a Preferred Choice?
In automotive applications, B41 Bearing works well in gearboxes and steering systems, thanks to its precise tolerances. Its durability makes it suitable for both light and heavy vehicles.

Perfect Fit for Automation: B41 Bearing
For automated systems, B41 Bearing supports robotic arms and conveyor belts, providing smooth movement under load. The required lubrication ensures long-term performance in continuous operations.

Medical vs Industrial: Where B41 Bearing Excels
In medical devices, B41 Bearing offers stability for imaging equipment, while in industrial settings, it excels in high-load scenarios. Its temperature range suits various environments.

Where to Use B41 Bearing
B41 Bearing is ideal for household appliances like washing machines, where its thrust load capacity ensures quiet operation. The inch measurements make it easy to replace in older models.
