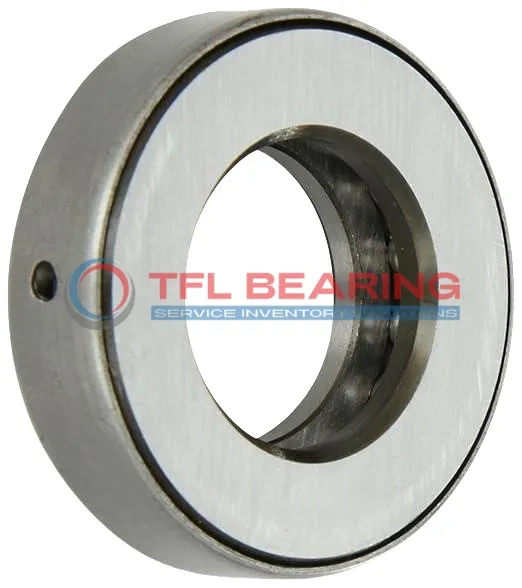

Thrust Ball Bearing With Outside Band B17

Thrust Ball Bearing With Outside Band B17

The B17 is a thrust ball bearing with a 1.5-inch bore and 2.594-inch outer diameter, crafted from sturdy 52100 chrome steel. It handles thrust loads up to 9800 lbf and operates smoothly at speeds up to 2800 RPM.

Its compact design, measuring 0.75 inches in width, fits snugly in tight spaces while maintaining durability. The bearing requires regular lubrication for optimal performance and works in temperatures from -30°C to 110°C.

This model is ideal for applications with moderate thrust loads, such as automotive components or industrial machinery. Its robust construction ensures reliability under demanding conditions.

Weighing just 0.25kg, it’s easy to handle and install. Compliant with RoHS and REACH standards, it’s a safe choice for various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number B17
  • Brand TFL
  • Bore Dia 1.5"
  • Bore Dia Tolerance +0.001" to +0.003"
  • Inner Dia Housing Washer 1.531"
  • Outer Dia 2.594"
  • Outer Dia Tolerance -0.015" to +0.015"
  • Width 0.75"
  • Width Tolerance -0.005" to +0.005"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Thrust
  • Ring Material 52100 Chrome Steel
  • Ball Material 52100 Chrome Steel
  • Dynamic Thrust Load 9800 lbf
  • Static Thrust Load 21400 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 2800 rpm
  • Weight 0.25 kg

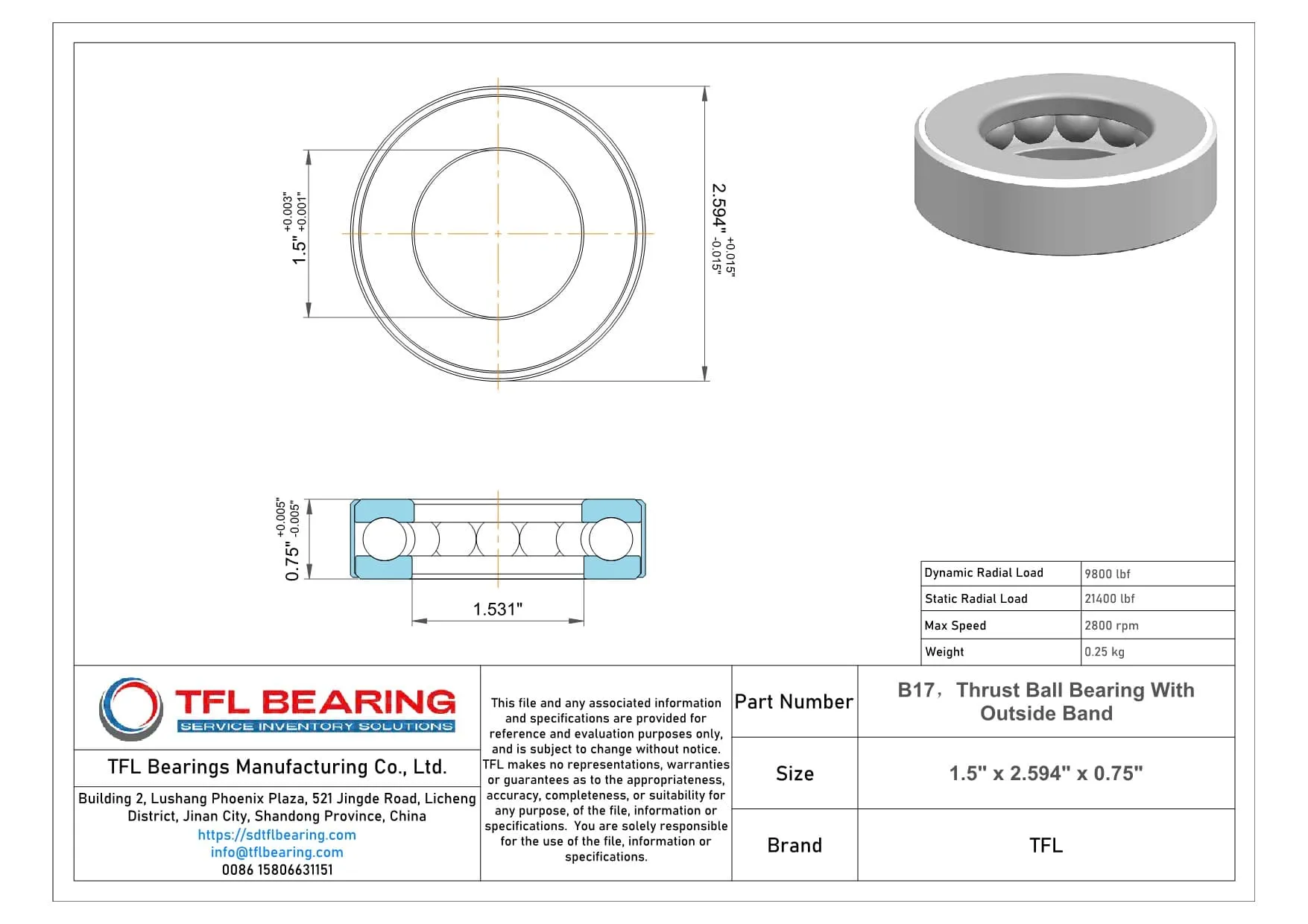

Thrust Ball Bearing With Outside Band B17 dimension drawing
Download DWG Download PDF

Features

Performance Features of B17 Bearing

B17 Bearing is crafted from 52100 chrome steel, offering strong resistance to wear and high thrust loads.

Its dynamic thrust load capacity reaches 9800 lbf, making it suitable for demanding industrial applications.

The bearing operates efficiently within a temperature range of -30° to 110°C, ensuring reliability in various conditions.

With a maximum speed of 2,800 rpm, B17 Bearing balances performance and durability.

Application

Industrial Uses of B17 Bearing
B17 Bearing is commonly used in heavy machinery, such as hydraulic pumps and gear reducers, where its inch sizing fits standard industrial equipment. The chrome steel construction ensures it handles thrust loads effectively in demanding environments.

What Makes B17 Bearing a Preferred Choice?
In automotive applications, B17 Bearing works well in clutch assemblies and steering systems, thanks to its balanced load capacity. The precise tolerances make it reliable for consistent performance under stress.

Built for Heavy-Duty Use: B17 Bearing
For automation systems, B17 Bearing supports robotic arms and conveyor belts, where its durability reduces maintenance needs. The wide temperature range also makes it suitable for varied operating conditions.

Medical vs Industrial: Where B17 Bearing Excels
While B17 Bearing isn’t typically used in medical devices, it shines in industrial settings like presses and lathes. Its static thrust load capacity ensures stability in high-force applications.
