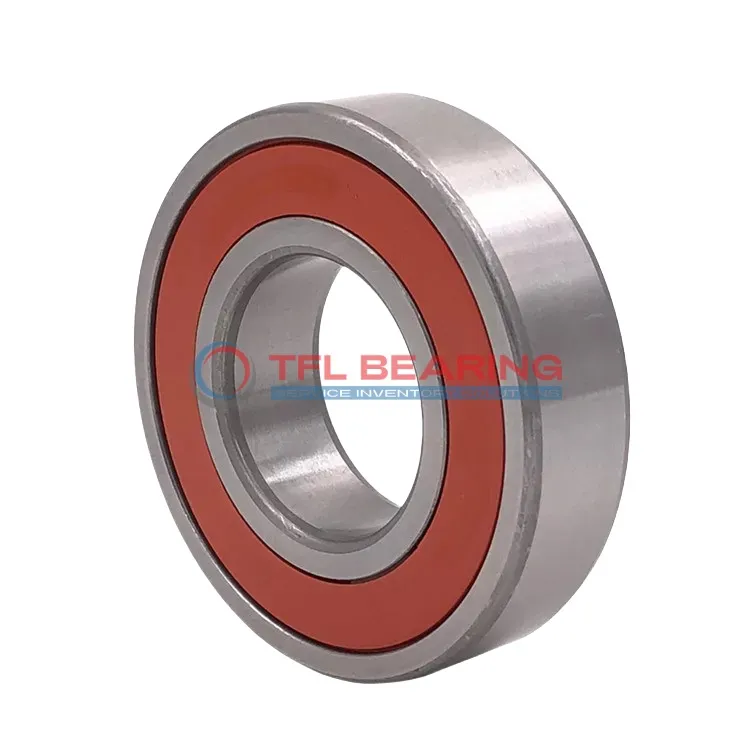

Single Row Deep Groove Ball Bearings 6013-2RS1/MTVM121

Single Row Deep Groove Ball Bearings 6013-2RS1/MTVM121

The 6013-2RS1/MTVM121 is a single-row deep groove ball bearing with a 65mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6857 lbf and operates smoothly at speeds up to 6700 RPM.

Sealed on both sides, it keeps dirt out and grease in, making it low-maintenance. The chrome steel cage adds durability, ensuring reliable performance over time.

With a temperature range of -30°C to 120°C, it’s suitable for various environments. This model is interchangeable with SKF bearings, offering a cost-effective replacement option.

Weighing 430g, it’s a solid choice for applications like electric motors or pumps where radial loads are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6013-2RS1/MTVM121
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.150mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 6857 lbf
  • Static Radial Load 5665 lbf
  • Max Speed 6700 rpm
  • Weight 430 g
  • price（$） 19.53
Single Row Deep Groove Ball Bearings 6013-2RS1/MTVM121 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6013-2RS1/MTVM121 Bearing

6013-2RS1/MTVM121 Bearing is designed for radial loads, with a dynamic radial load capacity of 6857 lbf.
Its sealed construction helps keep out contaminants, ensuring smooth operation in various environments.

The chrome steel rings and balls provide durability, while the cage maintains proper ball alignment.
This reduces friction and extends the bearing’s service life.

With a maximum speed of 6,700 rpm, 6013-2RS1/MTVM121 Bearing offers reliable performance.
It operates efficiently within a temperature range of -30°C to 120°C.

The sealed design of 6013-2RS1/MTVM121 Bearing requires minimal maintenance.
Its compact size and robust construction make it suitable for a variety of applications.

Application

Common Applications of 6013-2RS1/MTVM121 Bearing
6013-2RS1/MTVM121 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The chrome steel construction ensures durability in demanding environments.

In automotive applications, 6013-2RS1/MTVM121 Bearing fits well in wheel hubs and alternators, providing reliable radial load support. Its metric sizing makes it a versatile choice for various vehicle models.

For home appliances like washing machines, 6013-2RS1/MTVM121 Bearing offers smooth operation and long service life. The sealed design also reduces maintenance needs, making it ideal for everyday use.

In automation systems, 6013-2RS1/MTVM121 Bearing supports robotic arms and conveyor belts, where precision and reliability are key. Its ABEC 1 tolerance ensures consistent performance in repetitive tasks.
