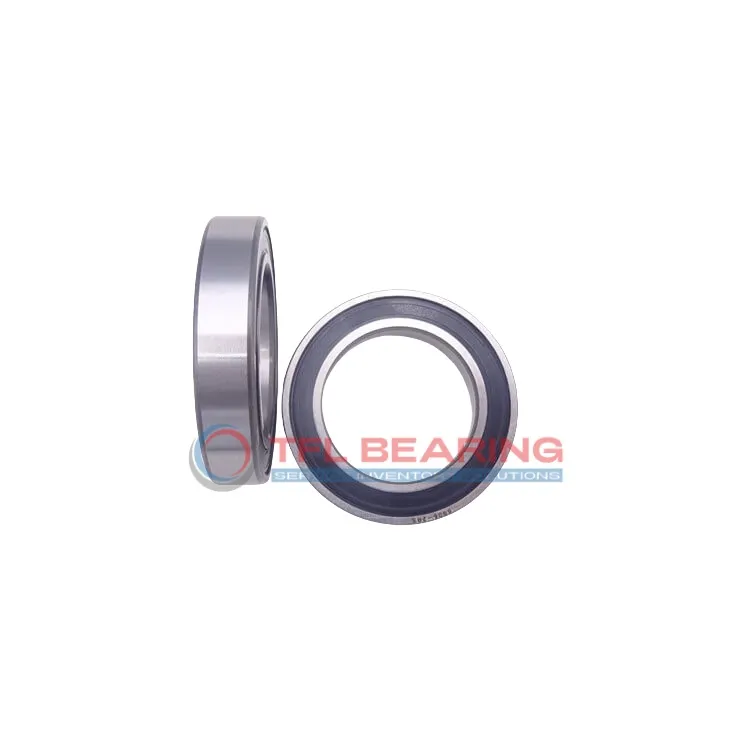

Thin Section Ball Bearings SET2216 2RS

Thin Section Ball Bearings SET2216 2RS

The SET2216 2RS is a compact thin-section ball bearing measuring 16mm by 22mm by 4mm, crafted entirely from stainless steel for durability. It handles radial loads up to 196 lbf and spins smoothly at speeds up to 9000 RPM.

Its sealed design keeps out dust and dirt, making it low-maintenance, while the stainless steel cage ensures reliable performance. The bearing operates well in temperatures from -86°F to 230°F.

With ABEC-1 precision and C0 radial clearance, it offers smooth rotation for small spaces. Ideal for applications like robotics or medical devices where space is limited.

Weighing just 3.7g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SET2216 2RS
  • Brand TFL
  • Bore Dia 16 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 4 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 196 lbf
  • Static Radial Load 125 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9000 rpm
  • Weight 3.7 g
  • Price（$） 2
Thin Section Ball Bearings SET2216 2RS dimension drawing
Download DWG Download PDF

Features

Performance Features of SET2216 2RS Bearing

SET2216 2RS Bearing is crafted with stainless steel rings and balls, offering reliable radial load support.
Its compact 4 mm width makes it ideal for space-constrained applications while maintaining durability.
The sealed design protects against contaminants, ensuring smooth operation in various environments.
With a maximum speed of 9,000 rpm, it delivers consistent performance without compromising efficiency.

Application

Industrial Uses of SET2216 2RS Bearing
SET2216 2RS Bearing is commonly used in compact machinery, such as small conveyor systems and precision instruments, where space is limited but performance is key. Its sealed design helps keep contaminants out, ensuring smooth operation in dusty environments.

How Does SET2216 2RS Bearing Improve Performance?
In automation setups like robotic arms, SET2216 2RS Bearing offers reliable radial load support with minimal friction. The stainless steel construction also makes it suitable for applications requiring corrosion resistance.

Built for Versatility: SET2216 2RS Bearing
This bearing fits well in consumer electronics, such as printers and small fans, thanks to its lightweight and slim profile. The ABEC-1 tolerance ensures consistent performance without unnecessary complexity.

Medical vs Industrial: Where SET2216 2RS Bearing Excels
In medical devices like lab equipment, SET2216 2RS Bearing provides quiet and precise movement. For industrial uses, its durability makes it a go-to for light-duty machinery with high-speed requirements.
