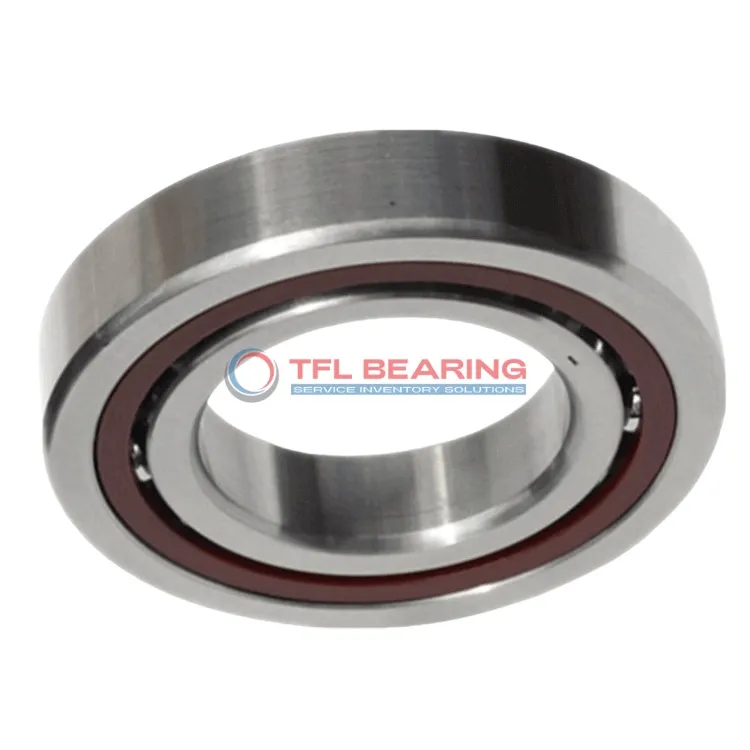

Super Precision Angular Contact Ball Bearings 71805 CDGA/HCP4

Brand: TFL Bearing Interchangeable: SKF 71805 CDGA/HCP4 25 mm × 37 mm × 7 mm Metric Open
Part number: 71805 CDGA/HCP4
Super Precision Angular Contact Ball Bearings 71805 CDGA/HCP4
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia25 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia37 mm
Outer Dia Tolerance-0.004mm to 0
Width7 mm
Width Tolerance-0.2mm to 0
Ball Dia3.175 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load936 lbf
Static Radial Load720 lbf
Temperature Range- 30°C to 110 °C
Max Speed103,000 rpm
Characteristics
Ball Qty20
Contact Angle15°
Tolerance ClassP4
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.019 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71805 CDGA/HCP4 is a super precision angular contact ball bearing with a 25mm bore and 37mm outer diameter, crafted from chrome steel for durability. Its compact 7mm width makes it suitable for tight spaces, while the ceramic balls ensure smooth operation.

With a 15° contact angle, it handles radial loads up to 936 lbf and spins at speeds up to 103,000 RPM. The phenolic cage provides stability, and the extra light preload ensures minimal friction during use.

This bearing is ideal for high-speed applications like spindles or precision tools, operating in temperatures from -30°C to 110°C. It’s interchangeable with SKF bearings and comes lubricated for immediate use.

Weighing just 0.019kg, it’s lightweight yet robust. The P4 tolerance class guarantees high precision, making it a reliable choice for demanding setups.

Features

Performance Features of 71805 CDGA/HCP4 Bearing

71805 CDGA/HCP4 Bearing is designed with a 15° contact angle, offering precise angular contact performance.

Its chrome steel rings and ceramic balls ensure smooth operation even at high speeds up to 103,000 rpm.

The phenolic cage provides excellent durability and reduces friction for extended service life.

With a dynamic radial load capacity of 936 lbf, it handles demanding applications with ease.

Application

Common Applications of 71805 CDGA/HCP4 Bearing
71805 CDGA/HCP4 Bearing is widely used in high-speed machine tools, where its ceramic balls and phenolic cage reduce friction and heat buildup. The P4 tolerance ensures precision in demanding industrial environments.

In robotics, 71805 CDGA/HCP4 Bearing supports articulated arms, providing smooth movement with minimal vibration. Its angular contact design handles combined radial and axial loads effectively.

For medical imaging devices, 71805 CDGA/HCP4 Bearing’s chrome steel rings offer durability, while the ceramic balls maintain quiet operation. The extra-light preload enhances accuracy in sensitive applications.

Automotive applications include electric vehicle motors, where 71805 CDGA/HCP4 Bearing’s high-speed capability and low weight contribute to efficiency. The open design allows for easy lubrication and maintenance.

In aerospace systems, 71805 CDGA/HCP4 Bearing’s temperature stability and precision make it suitable for flight control mechanisms. The matched arrangement options provide flexibility for various load configurations.
