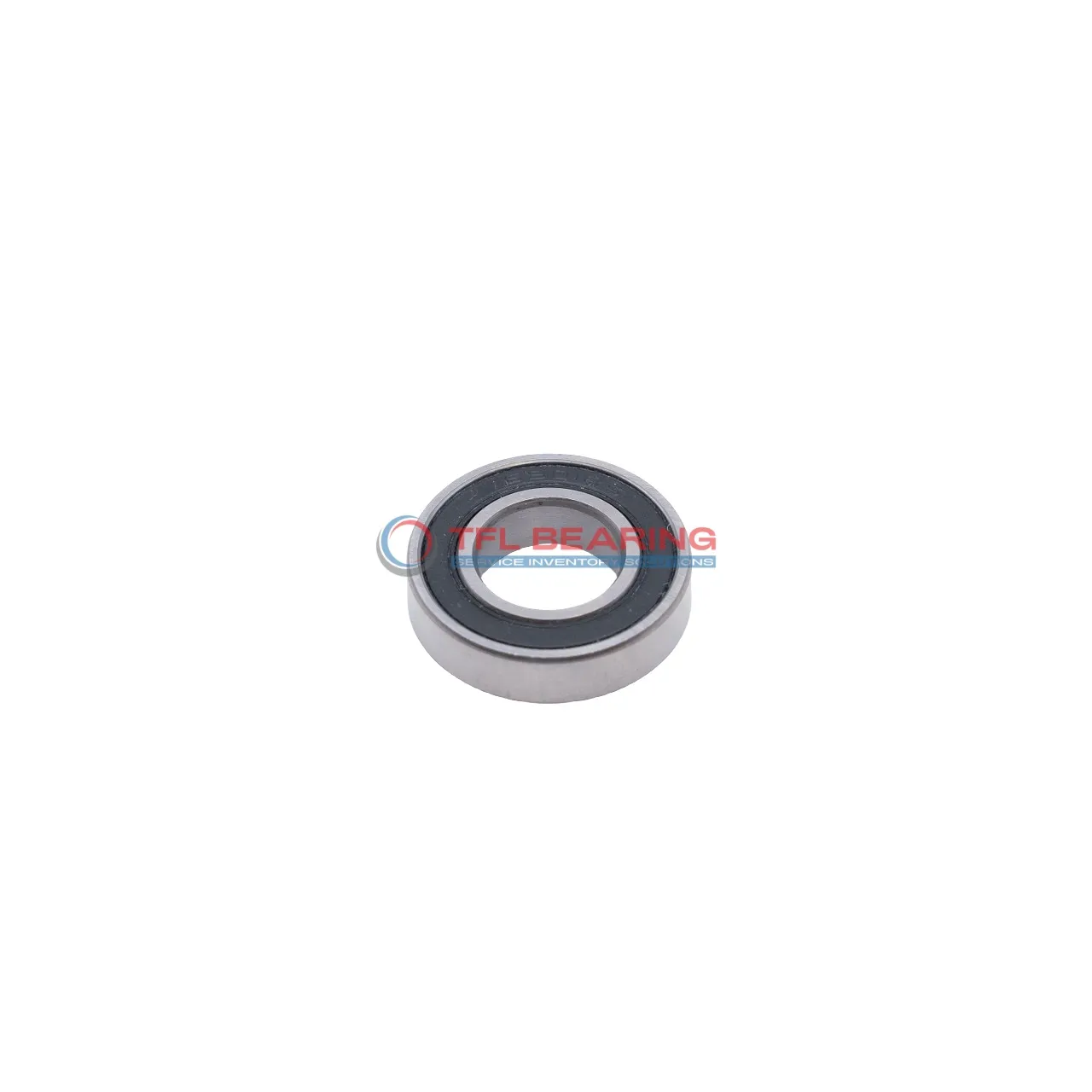

Single Row Deep Groove Ball Bearings 6301-2RSH/C3G5N

The 6301-2RSH/C3G5N is a compact single-row deep groove ball bearing, measuring 12mm in bore and 37mm in outer diameter. Its sealed design keeps dirt out and grease in, making it low-maintenance.

Made from durable chrome steel, it handles radial loads up to 2181 lbf and spins smoothly at speeds up to 20,000 RPM. The C3 clearance allows for slight expansion under heat or heavy loads.

This bearing works well in temperatures from -30°C to 120°C, suitable for various industrial uses. Its sealed construction makes it ideal for dusty or wet environments like electric motors or small machinery.

Weighing just 60g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, being interchangeable with SKF models.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6301-2RSH/C3G5N
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Bore Dia 12 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 37 mm
Outer Dia Tolerance -0.011mm to 0
Width 12 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
ROHS Compliant
REACH Compliant
Temperature Range -30°to 120 °C
Dynamic Radial Load 2181 lbf
Static Radial Load 944 lbf
Max Speed 20000 rpm
Weight 60 g
price（$） 3.762

Single Row Deep Groove Ball Bearings 6301-2RSH/C3G5N dimension drawing

Download DWG Download PDF

Features

Performance Features of 6301-2RSH/C3G5N Bearing

6301-2RSH/C3G5N Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2181 lbf, ensuring reliable performance in various applications.
The sealed design protects against dust and moisture, making it suitable for harsh environments.
With a maximum speed of 20,000 rpm, it delivers both durability and efficiency.

Application

Common Applications of 6301-2RSH/C3G5N Bearing
In industrial settings, 6301-2RSH/C3G5N Bearing works well in conveyor systems and small electric motors, thanks to its sealed design that keeps dust out. The C3 clearance ensures smooth operation even with slight misalignments.

Where Is 6301-2RSH/C3G5N Bearing Used?
You’ll often find 6301-2RSH/C3G5N Bearing in automotive applications like alternators and water pumps, where its radial load capacity handles constant motion. The chrome steel construction also resists wear over time.

Ideal for Precision: 6301-2RSH/C3G5N Bearing
For medical devices like dental drills, 6301-2RSH/C3G5N Bearing offers reliable performance due to its low noise and vibration. The sealed design helps maintain hygiene in sensitive environments.

Automotive vs Industrial: Applications of 6301-2RSH/C3G5N Bearing
In cars, 6301-2RSH/C3G5N Bearing supports auxiliary units like fans, while in factories, it’s used in small gearboxes. Its versatility comes from the balanced radial load handling and durability.

Practical Applications of 6301-2RSH/C3G5N Bearing
For home appliances like washing machines, 6301-2RSH/C3G5N Bearing ensures quiet operation and long life. The sealed design protects against moisture and detergent ingress.
