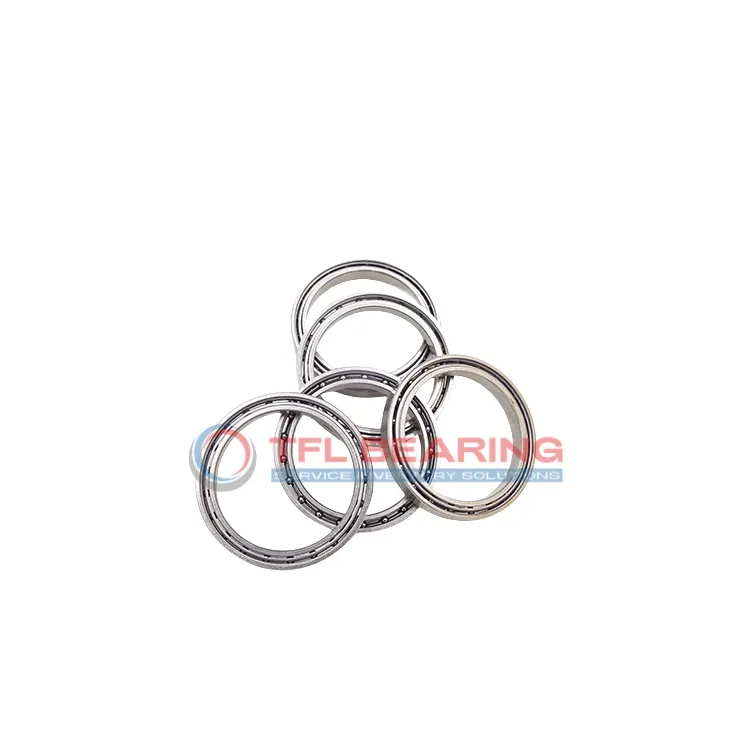

Thin Section Ball Bearings S6815

Thin Section Ball Bearings S6815

The S6815 is a slim, single-row ball bearing with a 75mm bore and 95mm outer diameter, crafted entirely from stainless steel for corrosion resistance. It supports radial loads up to 2489 lbf and operates smoothly at speeds reaching 6840 RPM.

With an open design and ABEC-1 tolerance, it offers reliable performance while allowing easy lubrication. The bearing’s thin 10mm profile makes it ideal for space-constrained applications.

It handles temperatures from -86°F to 230°F, suitable for varied environments. The stainless steel construction ensures durability in demanding conditions.

Perfect for precision equipment like medical devices or optical instruments where compact size and reliability matter. Compliant with RoHS and REACH standards, it weighs just 142g for easy handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6815
  • Brand TFL
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 10 mm
  • Width Tolerance -0.150mm to 0
  • Radial Clearance 0.01mm to 0.03mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2489 lbf
  • Static Radial Load 2590 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6840 rpm
  • Weight 142 g
  • Price（$） 2.9
Thin Section Ball Bearings S6815 dimension drawing
Download DWG Download PDF

Features

How Does S6815 Bearing Reduce Friction?

S6815 Bearing features a single-row design with stainless steel rings and balls, ensuring smooth radial load handling.
Its precision construction with ABEC-1 tolerance minimises friction, promoting efficient operation.

The open seal type allows for easy lubrication, further reducing wear and extending service life.
With a dynamic radial load capacity of 2489 lbf, it performs reliably in various applications.

S6815 Bearing operates in temperatures from -86 to 230°F, making it versatile for different environments.
Its lightweight design at 142g ensures easy handling without compromising durability.

Application

Industrial Uses of S6815 Bearing
S6815 Bearing is commonly used in industrial machinery where space is limited but precision is key, such as in packaging equipment and textile machines. Its thin section design allows for efficient operation without compromising on load capacity.

Where Is S6815 Bearing Used?
In robotics, S6815 Bearing fits perfectly into articulated arms and joints, providing smooth movement with minimal friction. The stainless steel construction ensures durability even in demanding automated environments.

Built for Versatility: S6815 Bearing
For medical imaging devices, S6815 Bearing offers reliable performance due to its consistent radial clearance and stainless steel components. It’s also a great fit for laboratory equipment where precision matters.

Automotive vs Aerospace: Applications of S6815 Bearing
In automotive applications, S6815 Bearing can be found in steering systems and small gearboxes, thanks to its compact size. Meanwhile, aerospace applications benefit from its lightweight design and resistance to temperature fluctuations.

Perfect Fit for Automation: S6815 Bearing
S6815 Bearing works well in 3D printers and CNC machines, where its thin profile and high-speed capabilities are ideal. The open seal design allows for easy lubrication, extending its service life in continuous operations.
