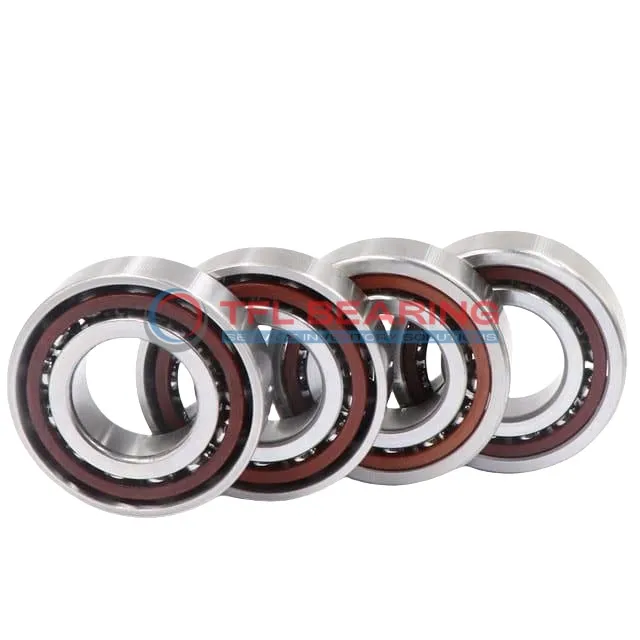

Super Precision Angular Contact Ball Bearings 71913 ACDGA/P4A

Brand: TFL Bearing Interchangeable: SKF 71913 ACDGA/P4A 65 mm × 90 mm × 13 mm Metric Open
Part number: 71913 ACDGA/P4A
Super Precision Angular Contact Ball Bearings 71913 ACDGA/P4A
In Stock
US$12.24 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia65 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia90 mm
Outer Dia Tolerance-0.004mm to 0
Width13 mm
Width Tolerance-0.2mm to 0
Ball Dia7.938 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load4,388 lbf
Static Radial Load3,600 lbf
Temperature Range- 30°C to 110 °C
Max Speed36,000 rpm
Characteristics
Ball Qty26
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementNo
Number Of Bearings In Matched Set3
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.21 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71913 ACDGA/P4A is a super precision angular contact ball bearing with a 65mm bore and 90mm outer diameter, crafted from durable chrome steel. It features a 25° contact angle and handles radial loads up to 4388 lbf, spinning smoothly at speeds up to 36,000 RPM.

Its open design and phenolic cage ensure low friction and long service life, even in demanding conditions. The bearing operates efficiently in temperatures ranging from -30°C to 110°C.

This model is suitable for high-precision applications like machine tool spindles or robotics, where accuracy and speed are crucial. It comes pre-lubricated for immediate use and is interchangeable with SKF bearings.

Weighing just 0.21kg, it’s lightweight yet robust, making it easy to handle during installation. The P4A tolerance class guarantees exceptional performance for precision engineering needs.

Features

Performance Features of 71913 ACDGA/P4A Bearing

71913 ACDGA/P4A Bearing is crafted with a 25° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and noise.

With a dynamic radial load capacity of 4388 lbf, it performs reliably in high-speed applications.
The P4A tolerance class guarantees precision, making it suitable for demanding tasks.

71913 ACDGA/P4A Bearing operates smoothly at speeds up to 36,000 rpm, thanks to its balanced design.
Its temperature range of -30°C to 110°C ensures consistent performance in various environments.

The open seal type allows for easy lubrication, extending the bearing’s service life.
Its universal matching capability makes it versatile for different mounting arrangements.

Application

Industrial Uses of 71913 ACDGA/P4A Bearing
71913 ACDGA/P4A Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate performance. The open seal type allows for efficient lubrication, making it suitable for continuous operation.

What Makes 71913 ACDGA/P4A Bearing a Preferred Choice?
In automotive applications, 71913 ACDGA/P4A Bearing is ideal for gearboxes and electric motors, thanks to its extra light preload and high-speed capability. The chrome steel construction adds durability, even under heavy loads.

Perfect Fit for Automation: 71913 ACDGA/P4A Bearing
For robotic arms and automated systems, 71913 ACDGA/P4A Bearing offers smooth movement and reliability. Its phenolic cage reduces friction, enhancing efficiency in repetitive tasks.

Medical vs Industrial: Where 71913 ACDGA/P4A Bearing Excels
In medical imaging devices, 71913 ACDGA/P4A Bearing provides quiet and precise operation. Its P4A tolerance class ensures consistent performance in sensitive environments.

Key Fields for 71913 ACDGA/P4A Bearing
71913 ACDGA/P4A Bearing is also found in aerospace applications, where its high-speed and load-handling capabilities are crucial. The universal matching feature allows for flexible configurations in complex machinery.
