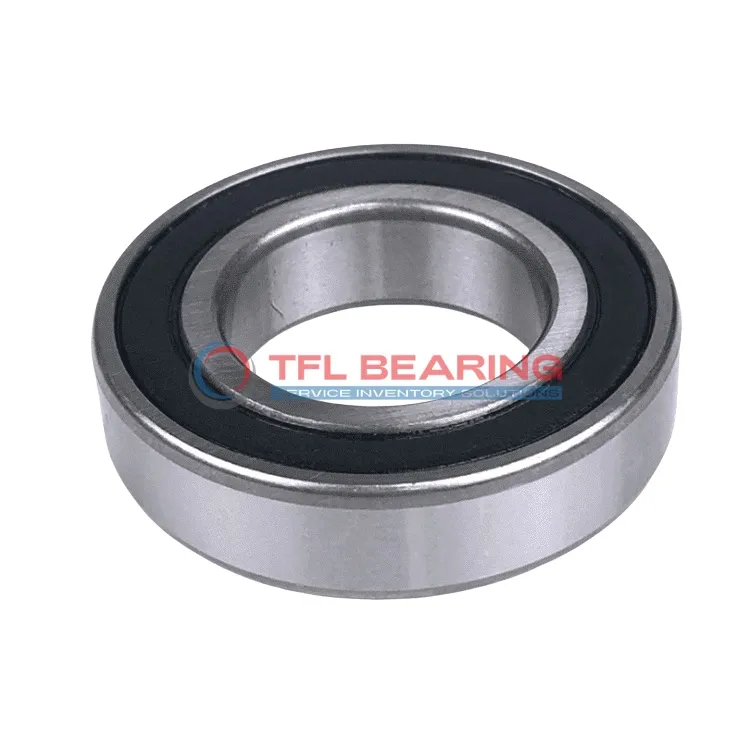

Single Row Deep Groove Ball Bearings 6004-2RSH/C3W64E

Single Row Deep Groove Ball Bearings 6004-2RSH/C3W64E

The 6004-2RSH/C3W64E is a compact single-row deep groove ball bearing, measuring 20mm by 42mm by 12mm. Made from chrome steel, it’s built to handle radial loads up to 2113 lbf and spins smoothly at speeds up to 17,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance without frequent maintenance. The bearing operates well in temperatures from -30°C to 120°C.

With a C3 radial clearance, it’s suitable for applications where slight expansion or misalignment might occur. Ideal for electric motors, pumps, or small machinery where reliability is key.

Weighing just 69g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s a safe choice for various industries. Interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6004-2RSH/C3W64E
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 42 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 2113 lbf
  • Static Radial Load 1135 lbf
  • Max Speed 17000 rpm
  • Weight 69 g
Single Row Deep Groove Ball Bearings 6004-2RSH/C3W64E dimension drawing
Download DWG Download PDF

Features

How Does 6004-2RSH/C3W64E Bearing Reduce Friction?

6004-2RSH/C3W64E Bearing features a sealed design with solid oil lubrication, ensuring smooth operation and reduced friction.
The chrome steel construction enhances durability, making it suitable for radial loads up to 2113 lbf.
Its ABEC 1 tolerance class and C3 radial clearance provide reliable performance in various applications.
With a maximum speed of 17,000 rpm, it balances efficiency and longevity.

Application

Industrial Uses of 6004-2RSH/C3W64E Bearing
This bearing is commonly used in conveyor systems and small electric motors, where its sealed design keeps out dust and debris. The solid oil lubrication ensures smooth operation even in demanding environments.

Where Is 6004-2RSH/C3W64E Bearing Used?
You’ll often find it in household appliances like washing machines and fans, thanks to its reliable radial load handling. The chrome steel construction offers durability for everyday use.

Built for Heavy-Duty Use: 6004-2RSH/C3W64E Bearing
It’s a great fit for industrial pumps and compressors, where the C3 clearance allows for thermal expansion. The sealed design also makes it low-maintenance for long-term use.

Automotive vs Industrial: Applications of 6004-2RSH/C3W64E Bearing
In cars, it works well in alternators and small gearboxes, while in factories, it’s ideal for light machinery. The metric sizing ensures compatibility across various equipment types.
