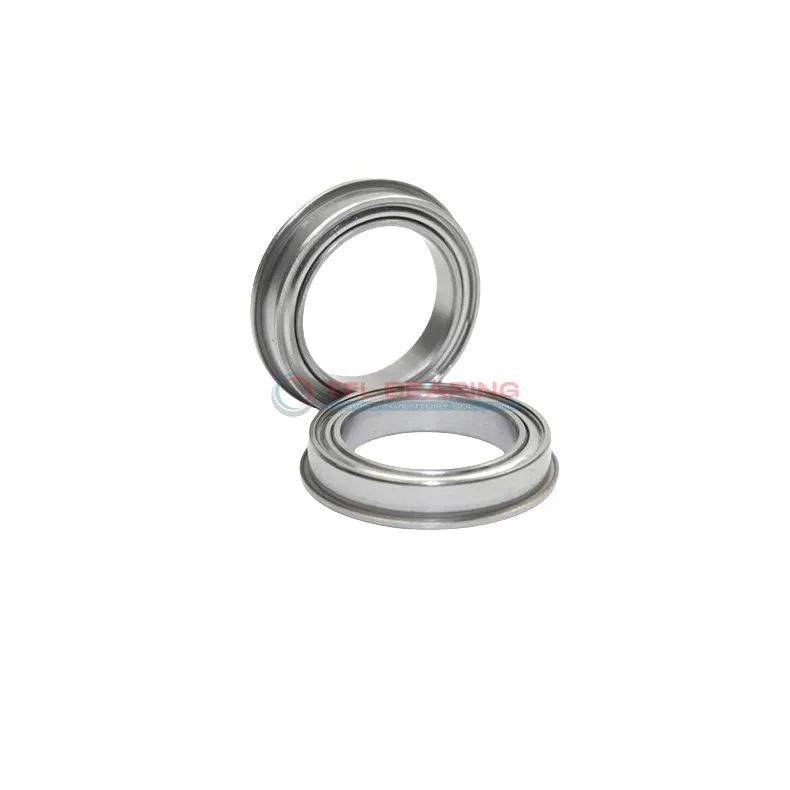

Metric Size Miniature Flanged Ball Bearings SF627zz

Metric Size Miniature Flanged Ball Bearings SF627zz

The SF627zz is a compact, shielded ball bearing with a 7mm bore and 22mm outer diameter, crafted entirely from stainless steel for durability. It supports radial loads up to 566 lbf and spins smoothly at speeds up to 27,000 RPM.

Its shielded design helps keep dirt out while retaining lubrication, making it low-maintenance. The stainless steel cage and balls ensure long life even in demanding conditions.

With a flange outer diameter of 25mm, it stays securely in place during operation. Ideal for small motors, fans, or precision instruments where space is limited.

Weighing just 14.4g, it’s lightweight yet robust. Suitable for temperatures from -30°C to 110°C and compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SF627zz
  • Brand TFL
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Dia 7 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 22 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • Flange Outer Dia 25 mm
  • Flange Thickness 1.5 mm
  • Radial Clearance 0.002mm to 0.013mm
  • Ball Qty 7
  • Ball Dia 3.9690 mm
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Standard
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 566 lbf
  • Static Radial Load 223 lbf
  • Max Speed 27000 rpm
  • Temperature Range -30° to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Weight 14.40 g
  • Shield Material 300 Series Stainless Steel
  • Price（$） 1.62
Metric Size Miniature Flanged Ball Bearings SF627zz dimension drawing
Download DWG Download PDF

Features

How Does SF627zz Bearing Reduce Friction?

SF627zz Bearing features stainless steel construction, reducing friction and ensuring smooth radial movement.
Its shielded design protects against contaminants while maintaining low resistance during operation.
With a dynamic radial load capacity of 566 lbf, it handles moderate loads efficiently.
The ABEC1 tolerance class ensures consistent performance for everyday applications.

Application

Where Is SF627zz Bearing Used?
SF627zz Bearing is commonly found in small electric motors, such as those used in cooling fans or power tools. Its shielded design helps keep out dust while maintaining smooth rotation at high speeds.

In automation systems, SF627zz Bearing works well in compact robotic arms and 3D printer components. The stainless steel construction ensures durability even with frequent movement and light loads.

For consumer electronics, SF627zz Bearing fits nicely into devices like printers or small kitchen appliances. The metric sizing makes it easy to replace in many European and Asian-made products.

The ABEC1 tolerance of SF627zz Bearing provides reliable performance without needing ultra-precise alignment. This makes it a cost-effective choice for general machinery applications.
