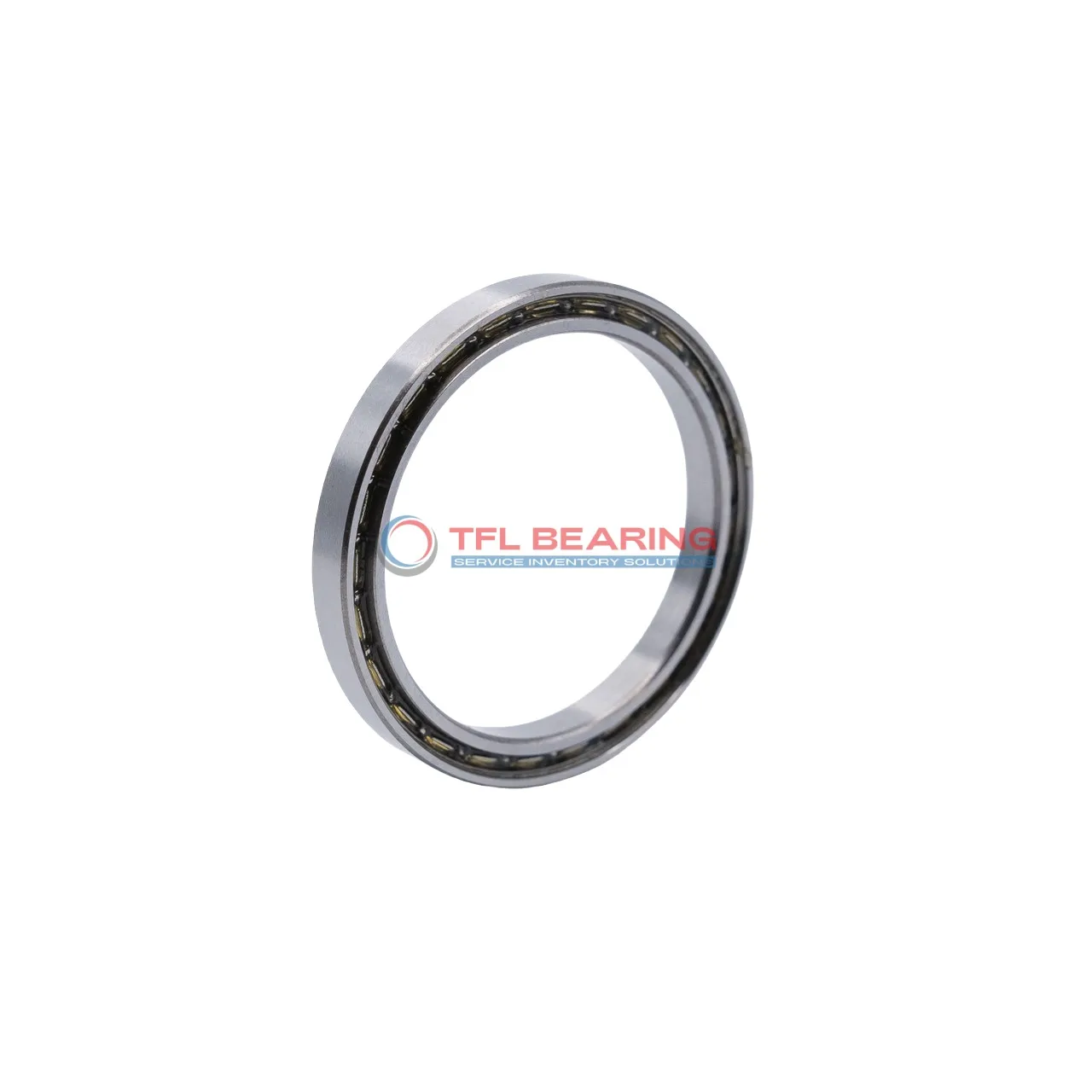

Thin Section Ball Bearings S6706

Thin Section Ball Bearings S6706

The S6706 is a slim, single-row ball bearing with a 30mm bore and 37mm outer diameter, crafted entirely from stainless steel for durability. Its compact 4mm width makes it ideal for tight spaces while handling radial loads up to 231 lbf.

Designed for smooth operation at speeds up to 5000 RPM, it features an open seal for easy lubrication. The bearing works reliably in temperatures ranging from -86°F to 230°F, suitable for various environments.

With ABEC-1 precision and C0 radial clearance, it offers consistent performance without being overly sensitive to alignment. Perfect for applications like small motors or precision instruments where space is limited.

Weighing just 8.3 grams, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, ensuring safe use across different industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6706
  • Brand TFL
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 37 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 4 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 231 lbf
  • Static Radial Load 192 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 8.3 g
  • Price（$） 1.5
Thin Section Ball Bearings S6706 dimension drawing
Download DWG Download PDF

Features

Why Choose S6706 Bearing for Precision Tasks?

S6706 Bearing is crafted with stainless steel rings and balls, ensuring smooth radial load handling.
Its slim 4mm width and ABEC-1 tolerance class make it ideal for compact, precision applications.

The open design allows easy lubrication, maintaining performance in temperatures from -86 to 230°F.
With a dynamic radial load capacity of 231 lbf, it balances strength and efficiency.

S6706 Bearing’s C0 radial clearance ensures consistent operation, reducing friction and wear.
Its lightweight 8.3g design suits applications where space and weight are critical.

Application

Common Applications of S6706 Bearing
S6706 Bearing is widely used in industrial automation, particularly in robotic arms and precision machinery, where its slim profile and stainless steel construction offer reliable performance. The open design simplifies lubrication, ensuring smooth operation in continuous-use environments.

Where Is S6706 Bearing Used?
In medical devices like surgical instruments, S6706 Bearing provides quiet and precise movement, thanks to its ABEC-1 tolerance. Its compact size makes it ideal for space-constrained applications without compromising durability.

Optimized for Performance: S6706 Bearing
For consumer electronics such as high-end printers, S6706 Bearing ensures minimal friction and long service life. The stainless steel materials resist corrosion, making it suitable for humid or demanding conditions.

Automotive vs Aerospace: Applications of S6706 Bearing
In automotive systems, S6706 Bearing supports small actuators and sensors, while in aerospace, its lightweight design is valued for instrumentation. The wide temperature range ensures reliability across diverse operating conditions.
