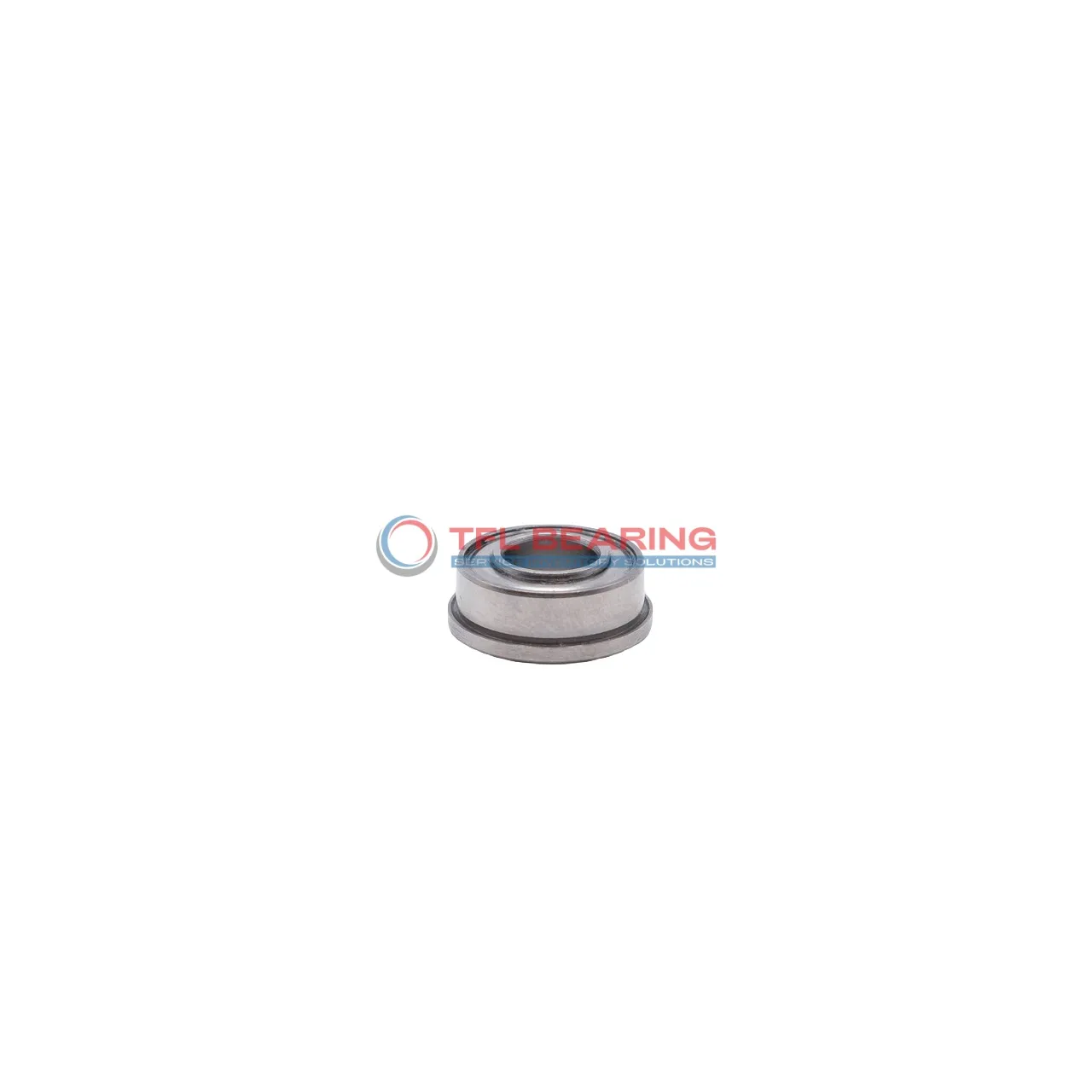

Miniature Flanged Ball Bearings With Extended Inner Ring FRW2zz

Miniature Flanged Ball Bearings With Extended Inner Ring FRW2zz

The FRW2zz is a compact flanged ball bearing with a 0.125″ bore and 0.375″ outer diameter, crafted from sturdy chrome steel. Its extended inner ring and shielded design offer added protection and ease of mounting.

This bearing handles radial loads up to 121 lbf and spins smoothly at speeds up to 110,000 RPM. The stainless steel cage ensures durability, while the MC3 radial clearance provides reliable performance.

The flange design helps keep the bearing securely in place, making it ideal for small spaces. It works well in temperatures ranging from -86°F to 230°F.

Perfect for miniature applications like small motors or precision instruments, this lightweight bearing weighs just 0.20g. It meets RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number FRW2zz
  • Brand TFL
  • Interchangeable EZO
  • System of Measurement Inch
  • Bore Dia 0.125"
  • Bore Dia Tolerance -0.0003" to 0"
  • Outer Dia 0.375"
  • Outer Dia Tolerance -0.0003" to 0"
  • Width 0.1562"
  • Width Tolerance -0.005" to 0"
  • Flange Outer Dia 0.44"
  • Flange Thickness 0.03"
  • External Diameter On Inner Ring 0.2"
  • Inner Ring Width 0.1875"
  • Ball Qty 7
  • Ball Dia 0.0625"
  • Radial Clearance 0.00008" to 0.0005"
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Inner Ring Type Extended
  • Seal Type Shielded
  • Tolerance Class ABEC1
  • Radial Clearance Trade No MC3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Shield Material 300 Series Stainless Steel
  • Dynamic Radial Load 121 lbf
  • Static Radial Load 39 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 110000 rpm
  • Weight 0.20 g
  • Price（$） 3.285

Features

How Does FRW2zz Bearing Reduce Friction?

FRW2zz Bearing features a chrome steel construction, ensuring smooth operation with minimal friction.
Its shielded design helps keep contaminants out, maintaining consistent performance over time.

The stainless steel cage ensures proper ball alignment, reducing wear and extending the bearing’s lifespan.
With a maximum speed of 110,000 rpm, it is ideal for high-speed applications.

FRW2zz Bearing operates efficiently in temperatures ranging from -86 to 230 °F.
Its compact size and flanged design make it easy to install in tight spaces.

Application

Industrial Uses of FRW2zz Bearing
FRW2zz Bearing is commonly used in small industrial equipment like precision drills and miniature conveyor systems. Its shielded design helps keep out dust and debris, ensuring smooth operation in tight spaces.

Where Is FRW2zz Bearing Used?
You’ll often find FRW2zz Bearing in automotive applications such as small electric motors and dashboard components. Its extended inner ring makes it easy to install and align in compact assemblies.

Perfect Fit for Automation: FRW2zz Bearing
FRW2zz Bearing works well in robotic arms and 3D printers, where its high-speed capability and small size are ideal. The stainless steel cage adds durability for continuous use in automated systems.

Medical vs Industrial: Where FRW2zz Bearing Excels
In medical devices like dental tools, FRW2zz Bearing provides reliable performance due to its precision and cleanliness. Industrial applications benefit from its ability to handle radial loads in confined spaces.

Light-Duty vs Heavy-Duty: Best Uses for FRW2zz Bearing
FRW2zz Bearing is great for light-duty tasks in consumer electronics like cooling fans or small printers. Its chrome steel construction ensures it can handle frequent use without wearing out quickly.
