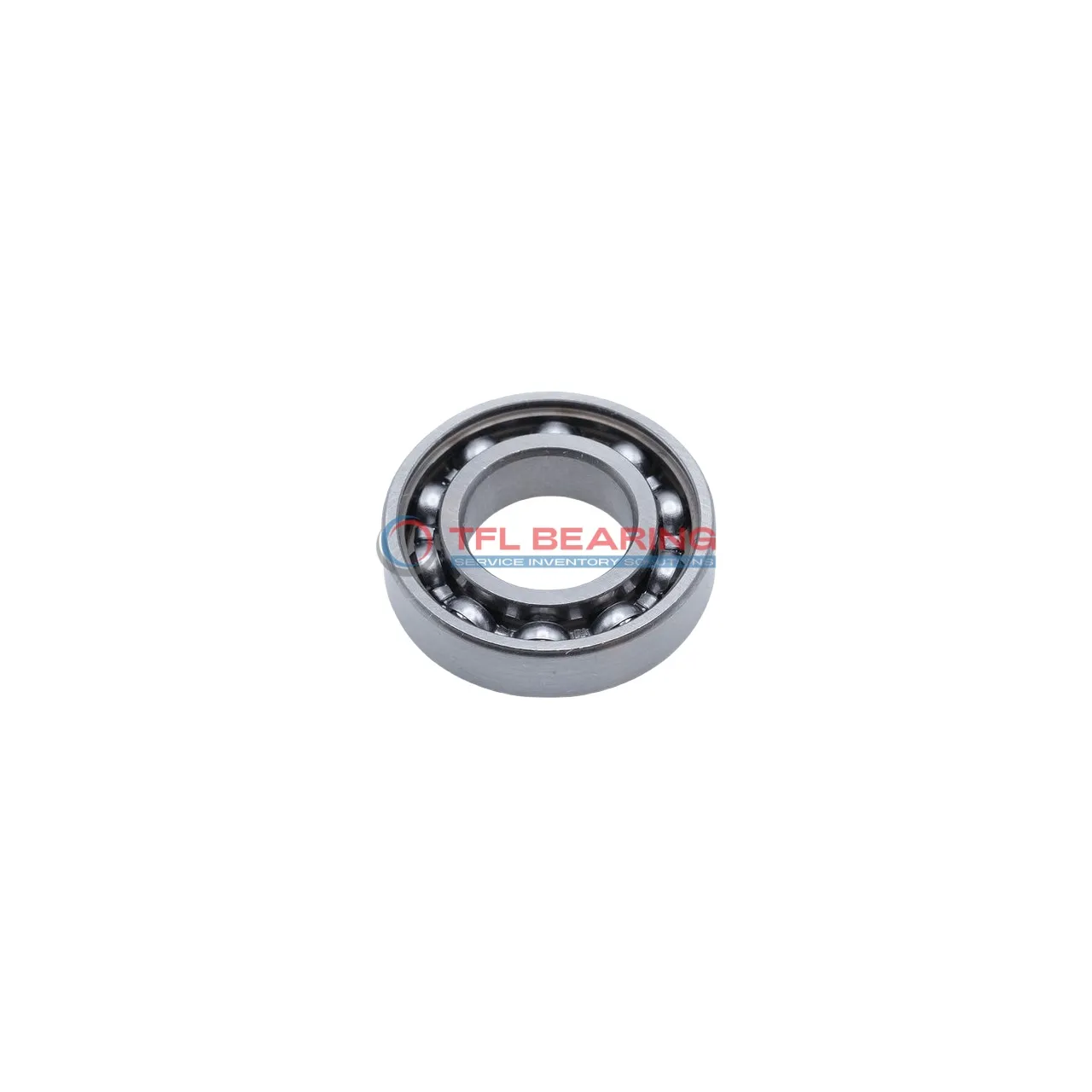

Single Row Deep Groove Ball Bearings 6209/40/VT125C

Single Row Deep Groove Ball Bearings 6209/40/VT125C

The 6209/40/VT125C is a single-row deep groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures reliable performance under stress. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 407g, it’s a robust yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209/40/VT125C
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Max Speed 7700 rpm
  • Weight 407 g
Single Row Deep Groove Ball Bearings 6209/40/VT125C dimension drawing
Download DWG Download PDF

Features

Why Choose 6209/40/VT125C Bearing for Precision Tasks?

6209/40/VT125C Bearing is built with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load rating of 7351 lbf makes it suitable for demanding applications.

The single-row deep groove design allows smooth operation at speeds up to 7,700 rpm.
With an ISO P0 tolerance class, it offers reliable performance for precision tasks.

The open seal design simplifies maintenance while the chrome steel cage enhances durability.
It operates efficiently within a temperature range of -30°C to 120°C.

Application

Industrial Uses of 6209/40/VT125C Bearing
This bearing is commonly used in conveyor systems and industrial fans, where its radial load capacity ensures smooth operation. The open design allows for easy lubrication, extending service life in dusty environments.

Where Is 6209/40/VT125C Bearing Used?
You’ll often find it in electric motors and pumps, thanks to its balanced performance under moderate speeds. The chrome steel construction provides reliable durability in everyday industrial settings.

Built for Heavy-Duty Use: 6209/40/VT125C Bearing
It handles radial loads well in agricultural machinery like harvesters and tractors. The ABEC 1 tolerance makes it a cost-effective choice for general-purpose applications.

Automotive vs Industrial: Applications of 6209/40/VT125C Bearing
In cars, it supports auxiliary components like alternators, while in factories, it’s trusted for machinery requiring consistent radial load support. The metric sizing ensures broad compatibility.

Perfect Fit for Automation: 6209/40/VT125C Bearing
This model works nicely in robotic arms and packaging equipment, where its 19mm width fits compact designs. The temperature range suits most indoor automation environments.
