Stainless Steel Deep Groove Ball Bearings D/W R0-2Z

Stainless Steel Deep Groove Ball Bearings D/W R0-2Z

The D/W R0-2Z is a small stainless steel deep groove ball bearing, measuring just 0.04689″ by 0.15618″ by 0.0937″. It handles radial loads up to 14 lbf and spins smoothly at speeds up to 110,000 RPM.

Its shielded design keeps dirt out while the stainless steel construction resists corrosion. The bearing comes pre-greased for easy use and works in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a handy replacement option. Ideal for small devices like precision instruments or miniature motors where space is limited.

Weighing only 0.000103kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number D/W R0-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 0.04689"
  • Bore Dia Tolerance -0.00019" to 0.00019"
  • Outer Dia 0.15618"
  • Outer Dia Tolerance -0.0007" to -0.00031"
  • Width 0.0937"
  • Width Tolerance -0.005" to 0"
  • System of Measurement Inch
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 14 lbf
  • Static Radial Load 4 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 110000 rpm
  • Weight 0.000103 kg

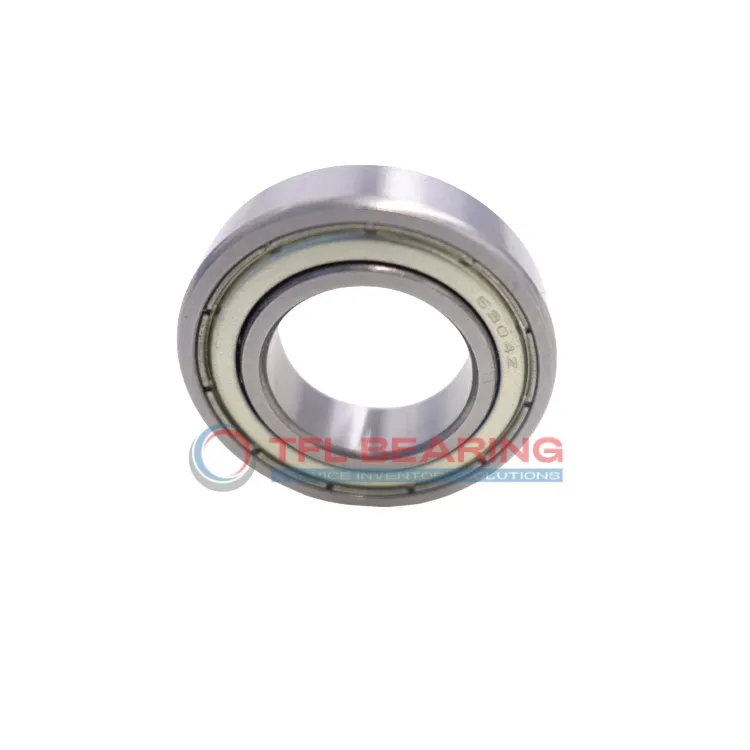

Stainless Steel Deep Groove Ball Bearings D/W R0-2Z dimension drawing
Download DWG Download PDF

Features

Performance Features of D/W R0-2Z Bearing

D/W R0-2Z Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its shielded design helps keep contaminants out, ensuring smooth operation in various environments.
With a dynamic radial load capacity of 14 lbf, it handles moderate loads efficiently.
The bearing’s high-speed capability of 110,000 rpm makes it suitable for precision applications.

Application

Key Fields for D/W R0-2Z Bearing
D/W R0-2Z Bearing is commonly used in small industrial equipment where corrosion resistance is essential, such as food processing machinery or marine applications. Its stainless steel construction ensures long-term reliability even in damp or harsh environments.

How Does D/W R0-2Z Bearing Support High-Speed Operations?
With a maximum speed of 110,000 rpm, D/W R0-2Z Bearing is ideal for precision instruments like dental drills or small electric motors. The shielded design helps keep contaminants out while maintaining smooth rotation.

Perfect Fit for Automation: D/W R0-2Z Bearing
In robotic arms and miniature automation systems, D/W R0-2Z Bearing provides consistent radial load support due to its single-row design. The inch sizing makes it compatible with many North American-made components.

Consumer Electronics vs Industrial: Where D/W R0-2Z Bearing Excels
D/W R0-2Z Bearing works well in both consumer gadgets like cooling fans and industrial sensors, thanks to its compact size and grease lubrication. The P0 tolerance ensures reliable performance across different applications.
