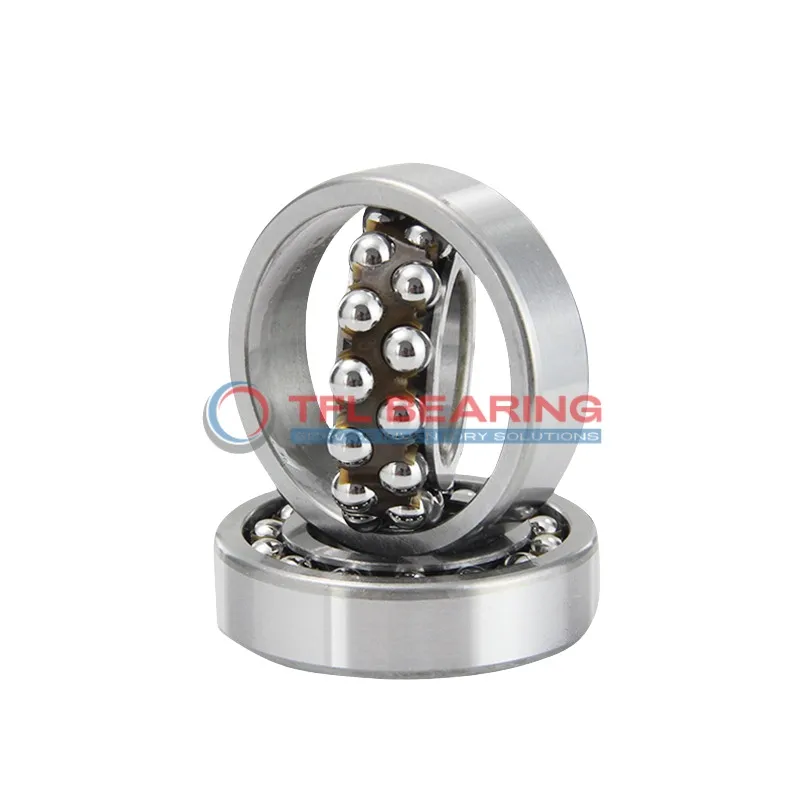

Self Aligning Ball Bearings 2308-K-TVH-C3

The 2308-K-TVH-C3 is a self-aligning ball bearing with a 40mm tapered bore and 90mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 7605 lbf and runs smoothly at speeds up to 4800 RPM.
Its double-row design and sealed construction help it stay aligned in uneven setups, while the nylon cage reduces noise. The bearing comes pre-lubricated for easy installation.
With a C3 radial clearance, it accommodates slight misalignments in shafts or housings. Ideal for industrial machinery, conveyors, or agricultural equipment where flexibility is needed.
Weighing 0.96kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 2308-K-TVH-C3
Brand TFL & OEM
Interchangeable SKF
Bore Dia 40 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 90 mm
Outer Dia Tolerance -0.015mm to 0
Width 33 mm
Width Tolerance -0.12mm to 0
External Diameter On Inner Ring 55.4 mm
Internal Diameter On Outer Ring 81.8 mm
Chamfer Dimension 1.5 mm
System of Measurement Metric
Bearing Type Ball
Bore Type Taper 1:12
For Load Direction Radial
Construction Double Row
Seal Type Sealed
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Nylon
Dynamic Radial Load 7605 lbf
Static Radial Load 2520 lbf
Lubrication Lubricated
Temperature Range -30° to 110 °C
Radial Clearance C3
RoHS Compliant
REACH Compliant
Max Speed 4800 rpm
Weight 0.96 kg
Price（$） 88.79

Self Aligning Ball Bearings 2308-K-TVH-C3 dimension drawing

Download DWG Download PDF

Features

How Is 2308-K-TVH-C3 Bearing Engineered for Reliability?

2308-K-TVH-C3 Bearing features a double-row design with chrome steel rings and balls, ensuring strong radial load capacity.
Its dynamic radial load reaches 7605 lbf, making it suitable for demanding applications.

The sealed construction and nylon cage help maintain lubrication and reduce wear.
This design ensures smooth operation even at speeds up to 4,800 rpm.

2308-K-TVH-C3 Bearing works well in temperatures ranging from -30° to 110°C.
Its tapered bore design simplifies installation and enhances stability.

Application

Common Applications of 2308-K-TVH-C3 Bearing
In industrial settings, 2308-K-TVH-C3 Bearing is a go-to for conveyor systems and pumps, thanks to its self-aligning feature that compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

Where Is 2308-K-TVH-C3 Bearing Used?
You’ll often spot 2308-K-TVH-C3 Bearing in agricultural machinery, where its double-row construction handles heavy radial loads with ease. The nylon cage reduces friction, making it a quiet and efficient choice for tractors and harvesters.

Built for Heavy-Duty Use: 2308-K-TVH-C3 Bearing
In construction equipment like cranes and excavators, 2308-K-TVH-C3 Bearing’s tapered bore ensures a secure fit, even under intense vibration. Its C3 radial clearance allows for thermal expansion, perfect for high-temperature operations.

Automotive vs Industrial: Applications of 2308-K-TVH-C3 Bearing
While 2308-K-TVH-C3 Bearing excels in industrial gearboxes, it’s also reliable in automotive wheel hubs, where its sealed design protects against road debris. The chrome steel construction offers consistent performance in both scenarios.

Perfect Fit for Automation: 2308-K-TVH-C3 Bearing
In robotic arms and automated assembly lines, 2308-K-TVH-C3 Bearing’s self-aligning capability ensures smooth movement. The lubricated design minimizes maintenance, ideal for high-uptime production environments.
