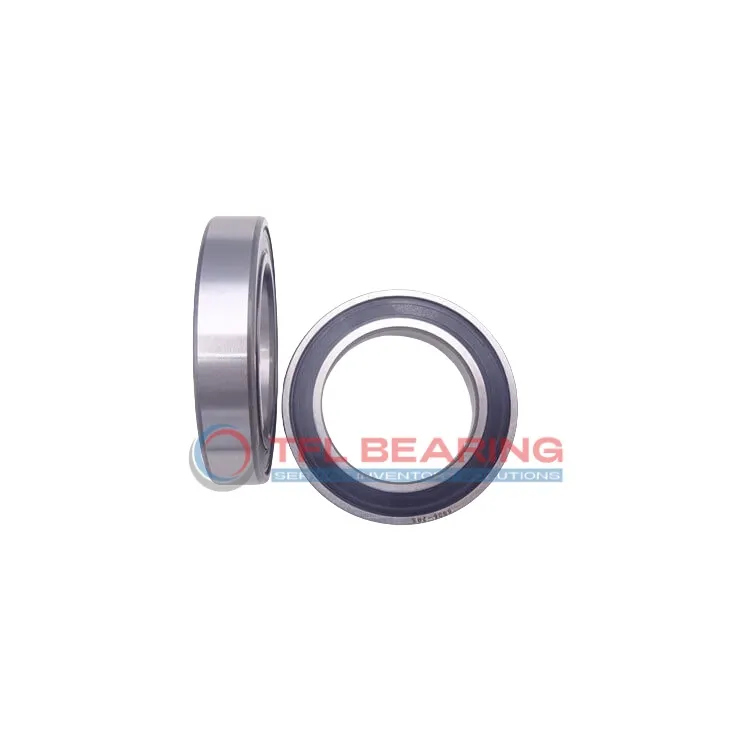

Thin Section Ball Bearings S6705 2rs

Thin Section Ball Bearings S6705 2rs

The S6705 2RS is a slim, sealed ball bearing measuring 25mm by 32mm by 4mm, crafted entirely from stainless steel for durability. It handles radial loads up to 223 lbf and spins smoothly at speeds of 6300 RPM.

Its sealed design keeps out dust and moisture, making it low-maintenance, while the stainless steel cage ensures long life. The bearing operates in temperatures from -86°F to 230°F, suitable for various environments.

With a C0 radial clearance, it offers reliable performance in precision applications. Ideal for small machinery or instruments where space is limited but smooth rotation is needed.

Weighing just 7.1g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for most industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6705 2rs
  • Brand TFL
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 4 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.006mm to 0.020mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 223 lbf
  • Static Radial Load 170 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 7.1 g
  • Price（$） 2.8
Thin Section Ball Bearings S6705 2rs dimension drawing
Download DWG Download PDF

Features

How Does S6705 2rs Bearing Reduce Friction?

S6705 2rs Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.

Its sealed design helps retain lubrication, further reducing wear and enhancing performance.

With a dynamic radial load capacity of 223 lbf, it handles moderate loads efficiently.

The bearing operates smoothly up to 6,300 rpm, making it suitable for various applications.

Application

Common Applications of S6705 2RS Bearing
S6705 2RS Bearing is a great fit for small automation systems, like robotic arms, where its thin section design saves space without compromising performance. The sealed construction keeps out dust and debris, ideal for environments where cleanliness matters.

In consumer electronics, S6705 2RS Bearing works well in devices like printers and small fans, thanks to its smooth operation and low noise. Its stainless steel build also resists corrosion, making it durable for everyday use.

For medical equipment, S6705 2RS Bearing’s precision and reliability shine in applications like lab instruments or diagnostic tools. The ABEC-1 tolerance ensures consistent performance, even in sensitive settings.

Automotive enthusiasts might spot S6705 2RS Bearing in compact electric motors or gear mechanisms, where its radial load handling keeps things running smoothly. The wide temperature range means it adapts well to varying conditions.
