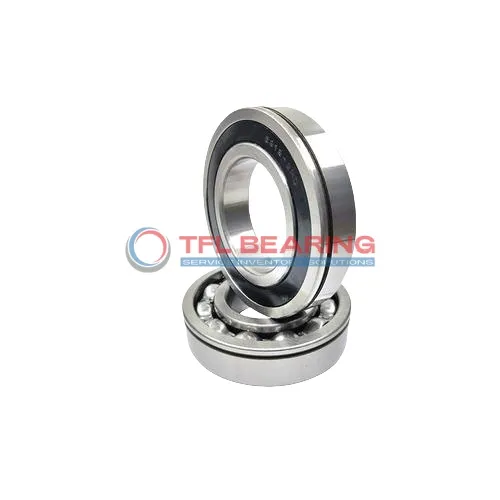

Snap Ring Groove Ball Bearings 6202-2ZN/C3HT

Snap Ring Groove Ball Bearings 6202-2ZN/C3HT

The 6202-2ZN/C3HT is a compact snap ring groove ball bearing, measuring 15mm by 35mm by 11mm, crafted from durable chrome steel. It handles radial loads up to 1812 lbf and can spin at speeds up to 20,000 RPM.

Its shielded design keeps dirt out while the snap ring groove ensures secure fitting. The C3 radial clearance allows for slight thermal expansion, making it reliable in varying temperatures.

This bearing is interchangeable with SKF models, offering a practical replacement option. It’s well-suited for electric motors or small machinery where space is limited.

Weighing just 45g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it operates smoothly from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6202-2ZN/C3HT
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 35 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 11 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 35 mm
  • Width Of Snap Ring 1.35 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1812 lbf
  • Static Radial Load 843 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 20000 rpm
  • Weight 45 g
  • Price（$） 2.63
Snap Ring Groove Ball Bearings 6202-2ZN/C3HT dimension drawing
Download DWG Download PDF

Features

How Does 6202-2ZN/C3HT Bearing Reduce Friction?

6202-2ZN/C3HT Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design protects against contaminants, maintaining performance in various environments.
The snap ring groove on the outer ring provides secure mounting, enhancing stability during use.
With a maximum speed of 20,000 rpm, it delivers reliable performance for high-speed applications.

What Makes 6202-2ZN/C3HT Bearing Suitable for High-Temperature Applications?

6202-2ZN/C3HT Bearing operates effectively in temperatures ranging from -30°C to 120°C.
Its chrome steel construction ensures durability and resistance to thermal expansion.
The C3 radial clearance allows for thermal expansion, preventing premature wear.
This makes it ideal for applications where temperature fluctuations are common.

Engineered for Precision: 6202-2ZN/C3HT Bearing

6202-2ZN/C3HT Bearing is designed with ABEC 1 tolerance, ensuring high precision in radial applications.
The single-row construction and shielded seals provide consistent performance under radial loads.
Its dynamic radial load capacity of 1812 lbf ensures reliability in demanding conditions.
The lightweight design at 45 g makes it easy to integrate into various systems.

Application

Industrial Uses of 6202-2ZN/C3HT Bearing
6202-2ZN/C3HT Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design protects against contaminants. The snap ring groove ensures secure mounting, ideal for high-vibration environments.

In automotive applications, 6202-2ZN/C3HT Bearing fits well in alternators and small gearboxes, thanks to its radial load capacity and compact size. The C3 clearance allows for thermal expansion, making it reliable in varying temperatures.

For automation equipment, 6202-2ZN/C3HT Bearing’s chrome steel construction provides durability in robotic arms and conveyor systems. Its ABEC 1 tolerance balances cost and performance for general-purpose use.

In household appliances like washing machines, 6202-2ZN/C3HT Bearing offers quiet operation and long service life. The shielded seals help keep out dust and moisture, reducing maintenance needs.
