Self Aligning Ball Bearings 2206 E-2RS1TN9/W64F

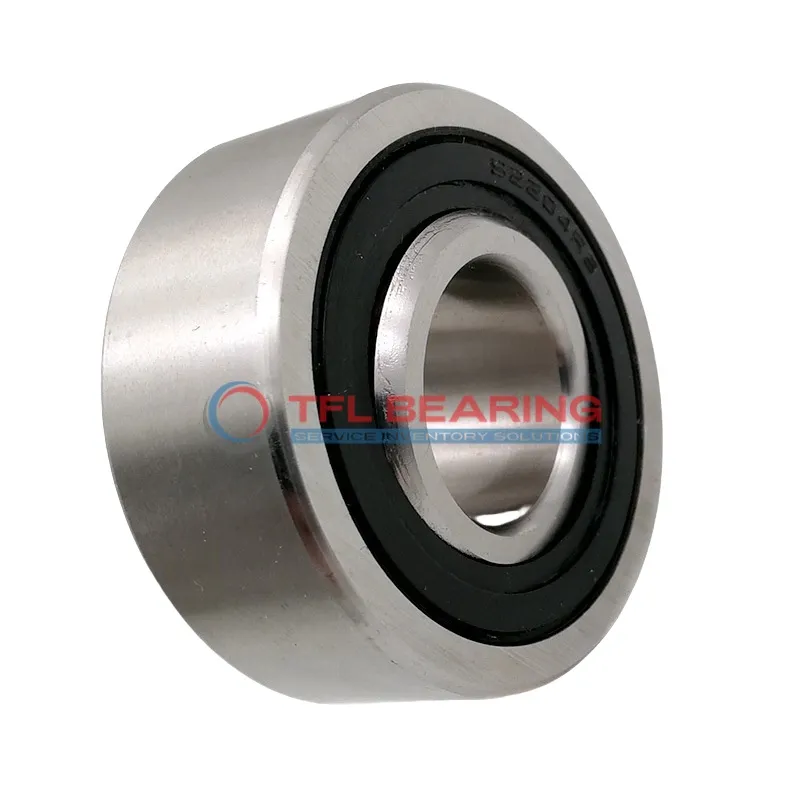

Self Aligning Ball Bearings 2206 E-2RS1TN9/W64F

The 2206 E-2RS1TN9/W64F is a self-aligning ball bearing with a 30mm bore and 62mm outer diameter, designed for radial loads. Its compact 20mm width makes it suitable for tight spaces, while the double-row construction enhances stability.

This bearing handles radial loads up to 3510 lbf and operates smoothly at speeds up to 7500 RPM. The sealed design keeps lubrication in and contaminants out, extending its lifespan. It works reliably in temperatures from -30°C to 110°C.

Made from chrome steel with a nylon cage, it offers durability and quiet operation. The self-aligning feature compensates for minor misalignments, reducing wear. Pre-lubricated for easy installation and maintenance.

Ideal for applications like electric motors or conveyor systems where alignment flexibility is needed. Weighing 0.26kg, it’s a lightweight yet robust solution. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 2206 E-2RS1TN9/W64F
  • Brand TFL & OEM
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • External Diameter On Inner Ring 36.7 mm
  • Internal Diameter On Outer Ring 54.06 mm
  • Chamfer Dimension 1 mm
  • System of Measurement Metric
  • Bearing Type Ball
  • Bore Type Cylindrical
  • For Load Direction Radial
  • Construction Double Row
  • Seal Type Sealed
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 3510 lbf
  • Static Radial Load 1046 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Radial Clearance CN
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.26 kg
  • Price（$） 84.43
Self Aligning Ball Bearings 2206 E-2RS1TN9/W64F dimension drawing
Download DWG Download PDF

Features

Why Choose 2206 E-2RS1TN9/W64F Bearing for Precision Tasks?

2206 E-2RS1TN9/W64F Bearing features a double-row design with chrome steel rings and balls, ensuring precise radial load handling.

Its sealed construction keeps contaminants out, making it suitable for dusty or humid environments.

The nylon cage reduces friction and noise, enhancing smooth operation in sensitive applications.

With a dynamic radial load capacity of 3510 lbf, it delivers reliable performance under stress.

Application

Common Applications of 2206 E-2RS1TN9/W64F Bearing
2206 E-2RS1TN9/W64F Bearing is widely used in industrial machinery, especially in conveyor systems and pumps, where its self-aligning feature compensates for minor misalignments. The sealed design keeps contaminants out, ensuring longer service life in dusty environments.

In automotive applications, 2206 E-2RS1TN9/W64F Bearing is often found in wheel hubs and transmissions, providing smooth rotation under radial loads. Its nylon cage reduces friction, making it a quiet and efficient choice for vehicle components.

For home appliances like washing machines, 2206 E-2RS1TN9/W64F Bearing offers reliable performance with minimal maintenance. The lubricated design ensures quiet operation, which is essential for household comfort.

In automation equipment, 2206 E-2RS1TN9/W64F Bearing supports robotic arms and assembly lines, where precision and durability are key. The chrome steel construction handles moderate loads while maintaining consistent performance.
