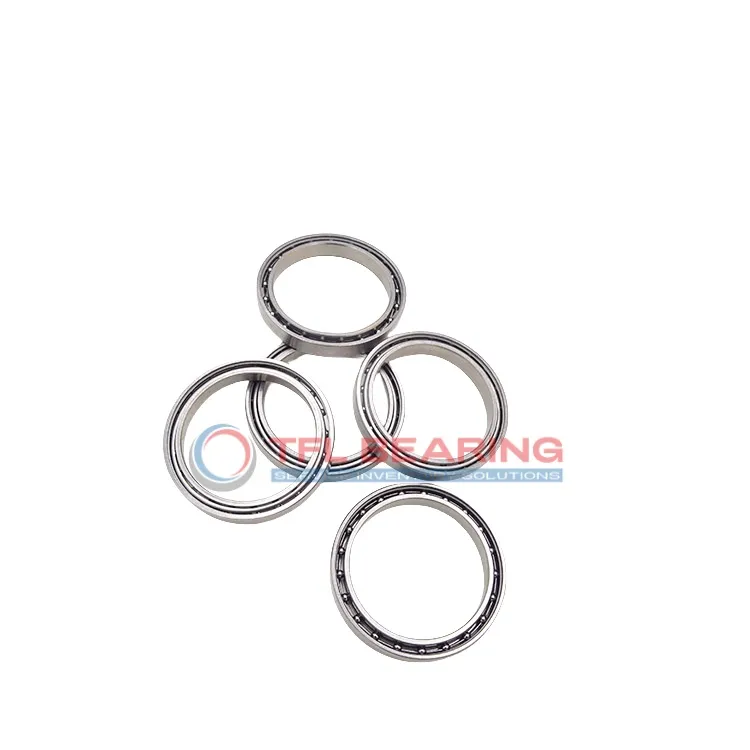

Thin Section Ball Bearings S6701

Thin Section Ball Bearings S6701

The S6701 is a slim, lightweight ball bearing measuring 12mm by 18mm by 4mm, crafted entirely from stainless steel for durability. It handles radial loads up to 188 lbf and can spin at speeds up to 11,700 RPM, making it a versatile choice for compact applications.

With an open design, it requires regular lubrication but offers easy maintenance. The ABEC-1 tolerance ensures reliable performance, while the C0 radial clearance provides smooth operation.

This bearing operates in temperatures from -86°F to 230°F, suitable for various environments. Its small size and stainless steel construction make it ideal for precision instruments or small machinery.

Weighing just 3.1 grams, it’s a practical option where space and weight are critical. Compliant with RoHS and REACH standards, it’s safe for most industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S6701
  • Brand TFL
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 18 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 4 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 188 lbf
  • Static Radial Load 108 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11700 rpm
  • Weight 3.1 g
  • Price（$） 1
Thin Section Ball Bearings S6701 dimension drawing
Download DWG Download PDF

Features

Performance Features of S6701 Bearing

S6701 Bearing is crafted with stainless steel rings and balls, offering reliable radial load support.
Its compact 12 mm×18 mm×4 mm size makes it ideal for space-constrained applications.

The ABEC-1 tolerance ensures consistent performance, while the C0 radial clearance suits general-purpose use.
With a dynamic radial load capacity of 188 lbf, it handles moderate loads efficiently.

S6701 Bearing operates smoothly at speeds up to 11,700 rpm, balancing speed and durability.
Its stainless steel construction resists corrosion, extending service life in varied conditions.

The open design simplifies lubrication, ensuring optimal performance with minimal maintenance.
S6701 Bearing works in temperatures from -86 to 230 °F, adapting to diverse environments.

Application

Common Applications of S6701 Bearing
S6701 Bearing is widely used in small industrial equipment, such as miniature motors and precision instruments, where its compact size and radial load capacity are beneficial. The stainless steel construction ensures durability in various operating conditions.

In robotics, S6701 Bearing is often found in joint mechanisms and lightweight robotic arms, providing smooth motion with minimal friction. Its open design allows for easy lubrication, extending service life in continuous operations.

For consumer electronics like printers and small fans, S6701 Bearing offers reliable performance due to its low noise and high-speed capabilities. The metric dimensions make it compatible with many standard designs.

Medical devices such as dental tools and diagnostic equipment benefit from S6701 Bearing’s precision and resistance to wear. The ABEC-1 tolerance ensures consistent performance in critical applications.
