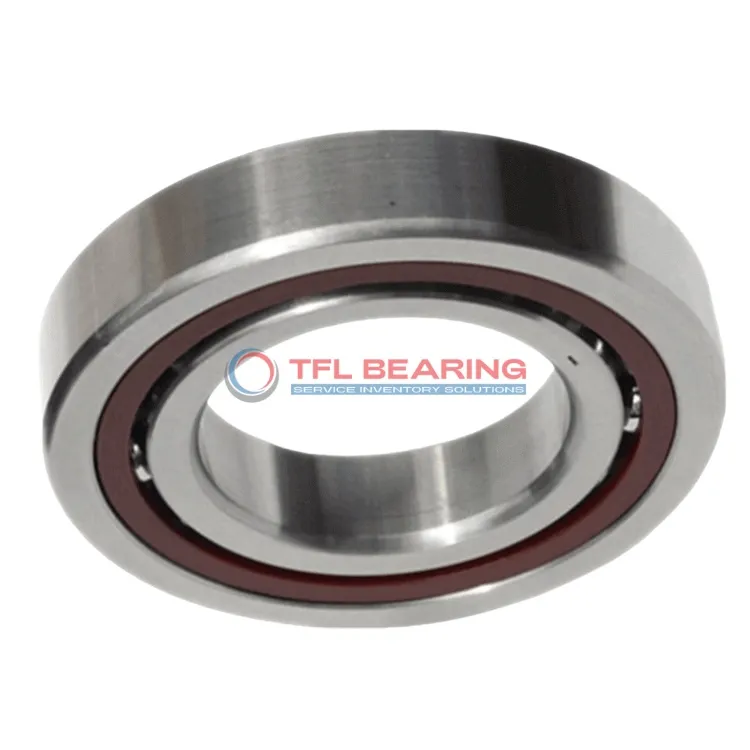

Super Precision Angular Contact Ball Bearings S71905 CDTP/HCP4B

Brand: TFL Bearing Interchangeable: SKF S71905 CDTP/HCP4B 25 mm × 42 mm × 9 mm Metric Sealed
Part number: S71905 CDTP/HCP4B
Super Precision Angular Contact Ball Bearings S71905 CDTP/HCP4B
In Stock
US$194.83 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia25 mm
Bore Dia Tolerance-0.005mm to 0
Outer Dia42 mm
Outer Dia Tolerance-0.006mm to 0
Width9 mm
Width Tolerance-0.2mm to 0
Ball Dia4.762 mm
Performance
PreloadAvailable
Dynamic Radial Load1,521 lbf
Static Radial Load900 lbf
Temperature Range-30° to 110 °C
Max Speed45,000 rpm
Characteristics
Ball Qty18
Contact Angle15°
Tolerance ClassP4 (ABEC-7)
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementAvailable
For Load DirectionAngular Contact
LubricationLubricated
Weight0.038 kg
Material
Ring MaterialChrome Steel
Ball MaterialCeramic
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S71905 CDTP/HCP4B is a super precision angular contact ball bearing with a 25mm bore and 42mm outer diameter, crafted from chrome steel for durability. Its compact 9mm width makes it suitable for tight spaces, while the ceramic balls enhance performance.

Designed for angular contact loads, it handles up to 1521 lbf dynamically and spins smoothly at speeds up to 45,000 RPM. The sealed design keeps lubrication in and contaminants out, ensuring long service life.

With a phenolic cage and P4 tolerance class, it offers high precision and reliability. Ideal for applications like machine tools or high-speed spindles where accuracy is crucial.

Weighing just 0.038kg, it’s lightweight yet robust. Compliant with standard temperature ranges from -30°C to 110°C, making it versatile for various industrial uses.

Features

Why Choose S71905 CDTP/HCP4B Bearing for Precision Tasks?

S71905 CDTP/HCP4B Bearing features a 15° contact angle, ideal for high-precision angular contact applications.
The ceramic balls and chrome steel rings ensure smooth operation with minimal friction.

With a dynamic radial load capacity of 1521 lbf, it handles demanding tasks reliably.
Its P4 tolerance class guarantees exceptional accuracy for precision instruments.

The sealed design and lubrication extend service life, reducing maintenance needs.
S71905 CDTP/HCP4B Bearing operates at speeds up to 45,000 rpm, balancing performance and durability.

Application

Ideal for Precision: S71905 CDTP/HCP4B Bearing
S71905 CDTP/HCP4B Bearing is commonly used in high-speed machine tools, where its angular contact design ensures accurate spindle rotation. The ceramic balls reduce friction, making it suitable for prolonged operation.

In robotics, S71905 CDTP/HCP4B Bearing provides smooth motion control for articulated arms, thanks to its phenolic cage and sealed design. The P4 tolerance class guarantees consistent performance in automated systems.

For medical imaging devices, S71905 CDTP/HCP4B Bearing’s low vibration and high-speed capability enhance scan precision. Its compact size fits well in space-constrained equipment.

The matched arrangement option makes S71905 CDTP/HCP4B Bearing a reliable choice for paired bearing applications, such as in precision measuring instruments. The lubricated design further extends its service life.
