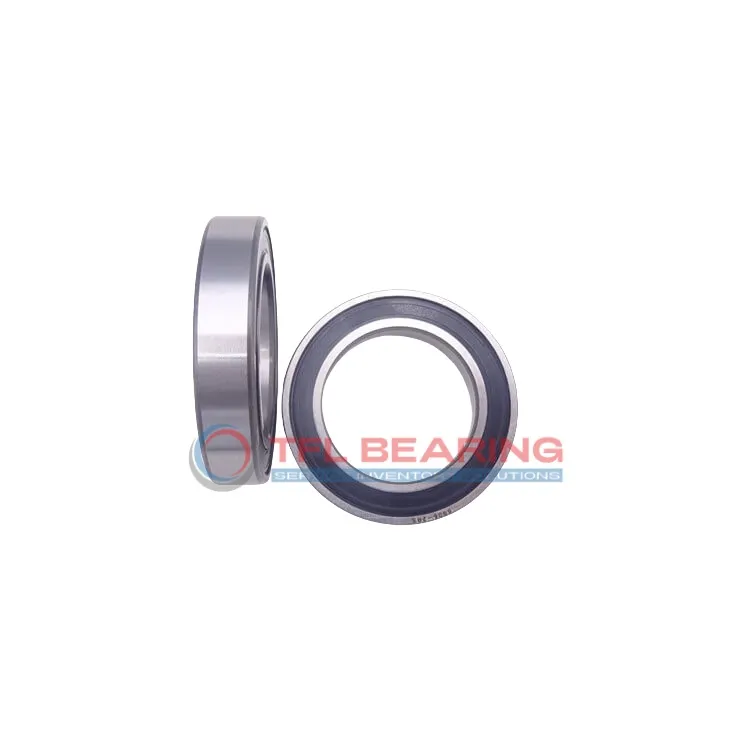

Thin Section Ball Bearings S63801 2rs

Thin Section Ball Bearings S63801 2rs

The S63801 2RS is a compact thin-section ball bearing measuring 12mm by 21mm by 7mm, crafted entirely from stainless steel for durability. It handles radial loads up to 388 lbf and spins smoothly at speeds up to 32,400 RPM.

Its sealed design keeps out dust and moisture, making it low-maintenance, while the stainless steel cage ensures reliable performance. The bearing operates in temperatures from -86°F to 230°F, suitable for varied environments.

With ABEC-1 precision and C0 radial clearance, it offers consistent performance for light to moderate loads. Ideal for small machinery, medical devices, or precision instruments where space is limited.

Weighing just 8.5g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S63801 2rs
  • Brand TFL
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 21 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.120mm to 0
  • Radial Clearance 0.003mm to 0.018mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 388 lbf
  • Static Radial Load 210 lbf
  • Temperature Range -86 to 230 °F
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 32400 rpm
  • Weight 8.5 g
  • Price（$） 1.8
Thin Section Ball Bearings S63801 2rs dimension drawing
Download DWG Download PDF

Features

Why Choose S63801 2rs Bearing for Precision Tasks?

S63801 2rs Bearing features a compact design with dimensions of 12 mm×21 mm×7 mm, making it ideal for space-constrained applications.
The stainless steel construction ensures resistance to corrosion, enhancing durability in various environments.

With a dynamic radial load capacity of 388 lbf, S63801 2rs Bearing handles demanding radial loads efficiently.
Its sealed design helps retain lubrication and prevents contamination, reducing maintenance needs.

S63801 2rs Bearing operates smoothly at high speeds, reaching up to 32,400 rpm.
The ABEC-1 tolerance class ensures reliable performance for precision tasks.

The temperature range of -86 to 230 °F allows S63801 2rs Bearing to perform in diverse conditions.
Its lightweight design at just 8.5 g makes it suitable for applications where weight is a concern.

Application

Ideal for Precision: S63801 2rs Bearing
S63801 2rs Bearing works well in small robotics, especially in robotic arms where its thin section design saves space without sacrificing performance. The sealed construction keeps out dust, making it reliable in cleanroom environments.

In medical devices like dental handpieces, S63801 2rs Bearing offers smooth rotation thanks to its stainless steel components. Its compact size fits neatly into tight spaces, which is handy for precision instruments.

For consumer electronics such as high-end camera gimbals, S63801 2rs Bearing ensures steady movement with minimal friction. The ABEC-1 tolerance provides just the right balance of accuracy and affordability for hobbyist gear.

Automotive applications like dashboard controls benefit from S63801 2rs Bearing’s resistance to temperature fluctuations. It handles frequent use without wearing out quickly, keeping knobs and switches responsive over time.

In 3D printers, S63801 2rs Bearing helps maintain precise layer alignment during rapid movements. The lightweight design reduces inertia, contributing to cleaner prints with fewer vibrations.
