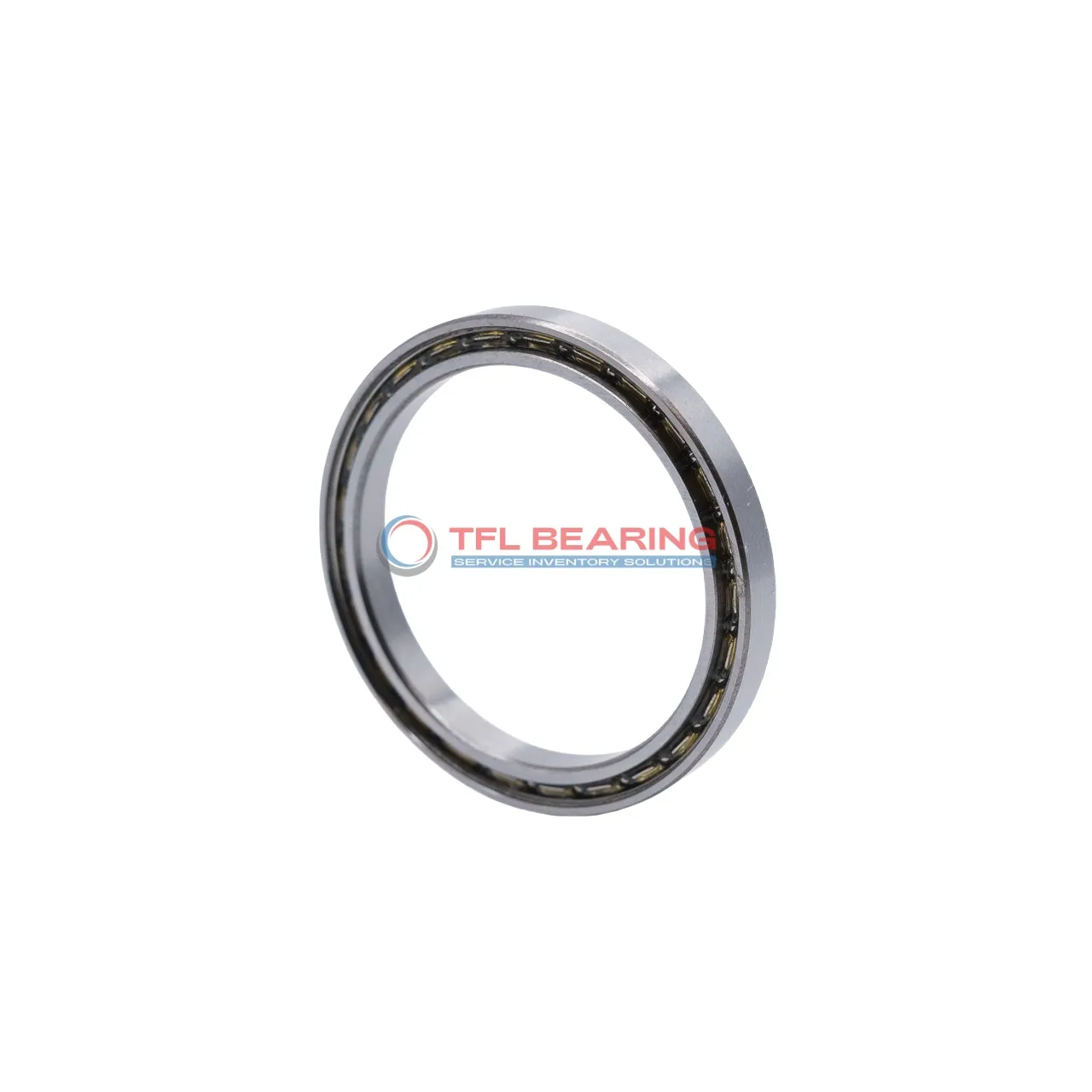

Thin Section Ball Bearings 6817

Thin Section Ball Bearings 6817

The 6817 is a thin-section ball bearing with an 85mm bore and 110mm outer diameter, designed for radial loads. Its compact width of 13mm makes it ideal for space-saving applications.

Made from chrome steel with a stainless steel cage, it handles dynamic radial loads up to 4208 lbf. With a maximum speed of 6600 RPM, it offers smooth rotation for various uses.

The open design allows for easy lubrication, while ABEC-1 tolerance ensures reliable performance. It operates in temperatures from -30°C to 110°C.

Suitable for machinery where slim profiles are needed, such as robotics or medical equipment. Compliant with RoHS and REACH standards, it’s a practical choice for engineers and maintenance teams. Weighing 266g, it’s lightweight yet durable.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6817
  • Brand TFL
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 13 mm
  • Width Tolerance -0.200mm to 0
  • Radial Clearance 0.012mm to 0.036mm
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No C0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 4208 lbf
  • Static Radial Load 4275 lbf
  • Temperature Range -30°C to 110 °C
  • Lubrication Required
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 6600 rpm
  • Weight 266 g
  • Price（$） 2.8
Thin Section Ball Bearings 6817 dimension drawing
Download DWG Download PDF

Features

How Does 6817 Bearing Reduce Friction?

6817 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its single-row design and ABEC-1 tolerance class provide consistent performance in radial load applications.
The stainless steel cage maintains ball alignment, reducing wear and extending the bearing’s lifespan.
With a maximum speed of 6,600 rpm, it offers reliable efficiency for various industrial uses.

Application

Industrial Uses of 6817 Bearing
6817 Bearing is commonly used in machine tools, where its thin section design saves space without compromising load capacity. The open seal allows for easy lubrication, extending its service life in demanding conditions.

In robotics, 6817 Bearing provides smooth rotation for joints and arms, thanks to its precise ABEC-1 tolerance. The chrome steel construction ensures durability even in high-cycle applications.

For packaging machinery, 6817 Bearing’s radial load capacity makes it suitable for conveyor rollers and sorting systems. Its lightweight design also helps reduce overall equipment weight.

Where Is 6817 Bearing Used?
You’ll often find 6817 Bearing in medical imaging devices, where its low friction and quiet operation are essential. The stainless steel cage adds corrosion resistance for sterile environments.

In textile machinery, 6817 Bearing handles high-speed rotations with ease, ensuring consistent fabric quality. The metric sizing makes it a versatile choice for global equipment manufacturers.

Built for Heavy-Duty Use: 6817 Bearing
6817 Bearing excels in construction equipment, supporting radial loads in gearboxes and pulleys. Its wide temperature range ensures reliability in both hot and cold climates.

For agricultural machinery, 6817 Bearing’s robust design withstands dust and debris. The easy maintenance feature is a bonus in remote field operations.

Automotive vs Aerospace: Applications of 6817 Bearing
In automotive systems, 6817 Bearing fits well in steering columns and electric motors. Its compact size is ideal for space-constrained designs.

Aerospace applications benefit from 6817 Bearing’s lightweight yet strong construction. The ABEC-1 tolerance ensures precision in navigation and control systems.
