Snap Ring Groove Ball Bearings 6212-ZNB

Snap Ring Groove Ball Bearings 6212-ZNB

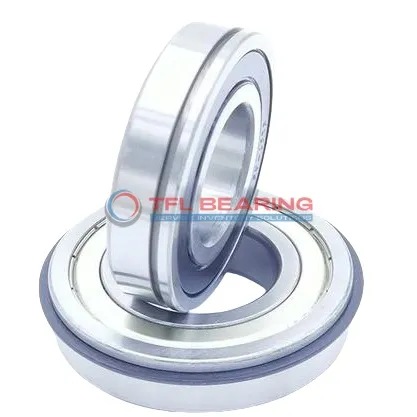

The 6212-ZNB is a shielded snap ring groove ball bearing with a 60mm bore and 110mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1178 lbf and operates smoothly at speeds up to 5600 RPM.

Its snap ring groove design ensures secure fitting, while the shielded construction keeps dirt out for longer service life. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for machinery like pumps or electric motors where radial loads and secure mounting are key.

Weighing 762g, it offers a sturdy build for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6212-ZNB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 22 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 110 mm
  • Width Of Snap Ring 2.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1178 lbf
  • Static Radial Load 8138 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 762 g
  • Price（$） 21.8
Snap Ring Groove Ball Bearings 6212-ZNB dimension drawing
Download DWG Download PDF

Features

How Does 6212-ZNB Bearing Reduce Friction?

6212-ZNB Bearing features a chrome steel construction, ensuring smooth operation with minimal friction.
Its shielded design helps keep contaminants out, maintaining consistent performance over time.

The snap ring groove on the outer ring simplifies installation, making it a practical choice for various applications.
With a dynamic radial load capacity of 1178 lbf, it handles demanding conditions reliably.

6212-ZNB Bearing operates efficiently within a temperature range of -30° to 120°C, suitable for diverse environments.
Its ABEC 1 tolerance class ensures dependable precision in everyday use.

Application

Industrial Uses of 6212-ZNB Bearing
6212-ZNB Bearing works well in conveyor systems, where its shielded design keeps dust out and extends service life. The snap ring groove makes installation simpler in tight spaces, which is handy for factory maintenance.

How Does 6212-ZNB Bearing Improve Performance?
In electric motors, 6212-ZNB Bearing handles radial loads smoothly, thanks to its chrome steel construction. The ABEC 1 tolerance ensures reliable operation without needing frequent adjustments.

Built for Heavy-Duty Use: 6212-ZNB Bearing
You’ll find 6212-ZNB Bearing in agricultural machinery, where its sturdy build handles rough conditions. The shielded seals protect against dirt, making it a solid choice for outdoor equipment.

Automotive vs Industrial: Applications of 6212-ZNB Bearing
In car alternators, 6212-ZNB Bearing offers quiet performance, while its snap ring groove suits industrial gearboxes. The metric sizing fits most European and Asian machinery seamlessly.

Perfect Fit for Automation: 6212-ZNB Bearing
For robotic arms, 6212-ZNB Bearing provides smooth rotation with minimal maintenance. Its chrome steel cage ensures durability even with constant movement in automated lines.
