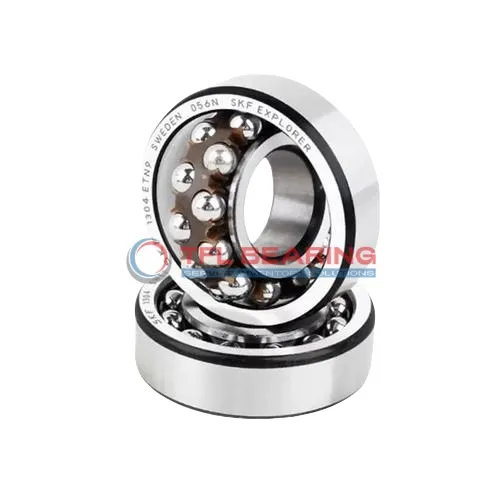

Self Aligning Ball Bearings 1218 K/C4

Brand: TFL Bearing Interchangeable: SKF 1218 K/C4 90 mm × 160 mm × 30 mm Metric Open
Part number: 1218 K/C4
Self Aligning Ball Bearings 1218 K/C4
In Stock
US$153.33 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia90 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia160 mm
Outer Dia Tolerance-0.025mm to 0
Width30 mm
Width Tolerance-0.2mm to 0
External Diameter On Inner Ring112.5 mm
Internal Diameter On Outer Ring138.7 mm
Chamfer Dimension2 mm
Performance
Dynamic Radial Load12,870 lbf
Static Radial Load5,310 lbf
Temperature Range-30° to 110 °C
Max Speed5,300 rpm
Characteristics
System of MeasurementMetric
Bearing TypeBall
Bore TypeTaper 1:12
For Load DirectionRadial
ConstructionDouble Row
Seal TypeOpen
LubricationLubricated
Radial ClearanceC4
Weight2.4 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 1218 K/C4 is a self-aligning ball bearing with a 90mm tapered bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 12870 lbf and operates smoothly at speeds reaching 5300 RPM.

Its double-row design and open seal allow for easy lubrication, while the nylon cage reduces friction for quieter performance. The bearing functions reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for machinery with misalignment issues, such as conveyor systems or agricultural equipment.

Weighing 2.4kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Features

Why Choose 1218 K/C4 Bearing for Precision Tasks?

1218 K/C4 Bearing features a double-row design with chrome steel rings and balls, ensuring high radial load capacity.
Its dynamic radial load reaches 12870 lbf, making it suitable for demanding applications.

The nylon cage maintains ball alignment, reducing friction and noise during operation.
With a maximum speed of 5,300 rpm, it offers both durability and smooth performance.

1218 K/C4 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its C4 radial clearance provides flexibility in various operating conditions.

The open design simplifies maintenance, while the tapered bore ensures secure fitting.
This bearing is ideal for applications requiring precision and reliability.

Application

Industrial Uses of 1218 K/C4 Bearing
The 1218 K/C4 Bearing is commonly used in heavy machinery, such as conveyor systems and industrial fans, where its self-aligning feature helps compensate for misalignment. Its double-row design provides reliable radial load support, making it suitable for demanding environments.

In automotive applications, 1218 K/C4 Bearing can be found in gearboxes and drivetrains, where its tapered bore ensures a secure fit. The chrome steel construction offers durability, even under continuous use.

For automation equipment, 1218 K/C4 Bearing’s nylon cage reduces friction, enhancing efficiency in robotic arms and assembly lines. The open seal design allows for easy lubrication, extending its service life.

Medical devices like diagnostic scanners benefit from 1218 K/C4 Bearing’s precision and smooth operation. Its C4 radial clearance ensures consistent performance in sensitive applications.
