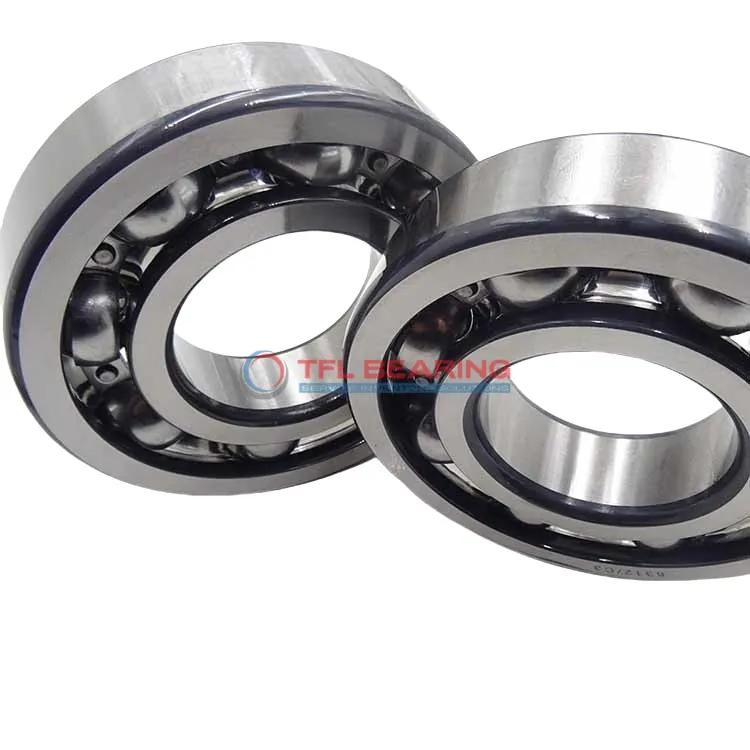

Single Row Deep Groove Ball Bearings 61860 MA

Single Row Deep Groove Ball Bearings 61860 MA

The 61860 MA is a single-row deep groove ball bearing with a 300mm bore and 380mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 38667 lbf and operates smoothly at speeds up to 2600 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 10.4kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards for safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 61860 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 380 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 38 mm
  • Width Tolerance -0.35mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 38667 lbf
  • Static Radial Load 55078 lbf
  • Max Speed 2600 rpm
  • Weight 10.4 kg
  • price（$） 847.053
Single Row Deep Groove Ball Bearings 61860 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 61860 MA Bearing

61860 MA Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 38667 lbf.
Its stainless steel cage ensures smooth operation and reduces wear, even at high speeds.

The single row deep groove design of 61860 MA Bearing enhances its radial load handling capabilities.
With a maximum speed of 2,600 rpm, it balances performance and durability in various applications.

61860 MA Bearing operates efficiently within a temperature range of -30° to 120°C.
Its open seal design allows for easy maintenance and lubrication adjustments.

The precision P6 tolerance class of 61860 MA Bearing ensures consistent performance.
Its robust construction makes it suitable for heavy-duty industrial use.

Application

Industrial Uses of 61860 MA Bearing
61860 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its robust design handles significant radial loads. The open seal type allows for easy lubrication, ensuring long service life in demanding environments.

What Makes 61860 MA Bearing a Preferred Choice?
In automotive applications, 61860 MA Bearing fits well in large gearboxes and transmission systems, providing smooth operation under high radial forces. Its chrome steel construction offers durability, making it suitable for continuous use in vehicles.

Perfect Fit for Automation: 61860 MA Bearing
For automated production lines, 61860 MA Bearing supports conveyor systems and robotic arms, where precision and reliability are key. The stainless steel cage enhances its performance in high-speed operations, reducing maintenance needs.

Medical vs Industrial: Where 61860 MA Bearing Excels
In medical imaging devices, 61860 MA Bearing ensures quiet and smooth operation, crucial for accurate diagnostics. Meanwhile, in industrial settings, its ability to handle heavy loads makes it ideal for large-scale equipment.
