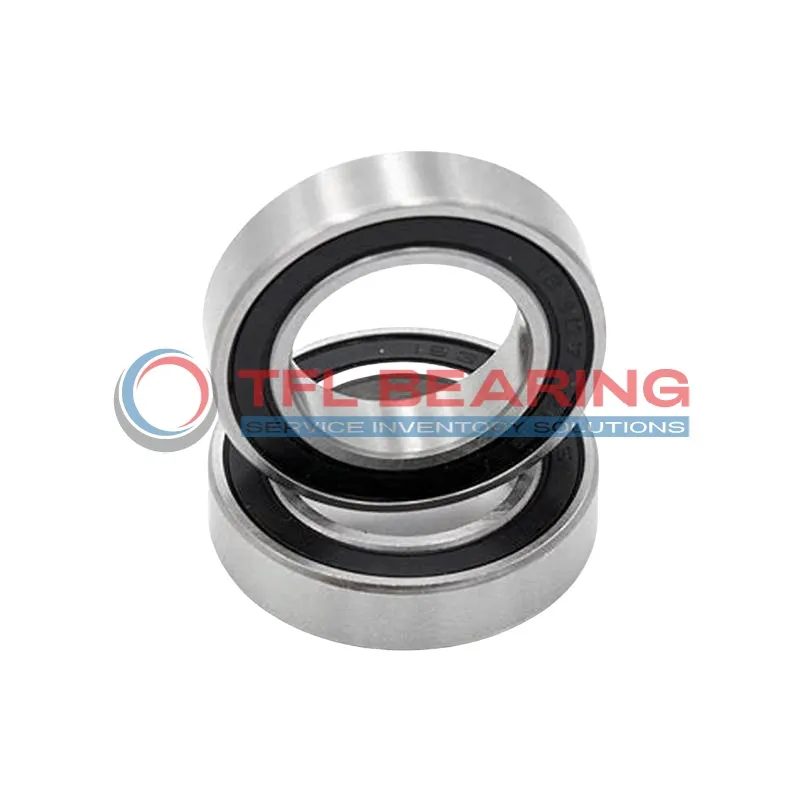

Super Precision Angular Contact Ball Bearings S71915 ACB/P4ADT

Super Precision Angular Contact Ball Bearings S71915 ACB/P4ADT

The S71915 ACB/P4ADT is a super precision angular contact ball bearing with a 75mm bore and 105mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 4860 lbf and operates smoothly at high speeds up to 28,000 RPM.

Its sealed design keeps grease in and contaminants out, while the phenolic cage ensures quiet, long-lasting performance. The 25° contact angle and matched arrangement (2 bearings << DT) provide excellent stability for angular loads. This bearing is ideal for precision applications like machine tool spindles or high-speed motors, where accuracy and reliability are key. It works well in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation. Weighing 0.76kg, it’s a robust yet manageable choice for demanding setups. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for convenient replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S71915 ACB/P4ADT
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 32 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 6.35 mm
  • Ball Qty 34
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement 2 bearings << DT
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Available
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 4860 lbf
  • Static Radial Load 5625 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 28000 rpm
  • Weight 0.76 kg
Super Precision Angular Contact Ball Bearings S71915 ACB/P4ADT dimension drawing
Download DWG Download PDF

Features

Why Choose S71915 ACB/P4ADT Bearing for Precision Tasks?

S71915 ACB/P4ADT Bearing features a 25° contact angle, ideal for handling combined radial and axial loads.
Its P4A tolerance class ensures high precision, making it suitable for demanding applications.

The sealed design and grease lubrication reduce maintenance needs while protecting against contaminants.
With a maximum speed of 28,000 rpm, it delivers reliable performance in high-speed operations.

The phenolic cage and chrome steel construction enhance durability and reduce wear.
Its matched arrangement of two bearings provides stability and consistent performance under load.

Application

Essential Roles of S71915 ACB/P4ADT Bearing
S71915 ACB/P4ADT Bearing is widely used in high-speed machine tools, where its precision and angular contact design ensure accurate performance. The sealed construction helps maintain lubrication, reducing maintenance needs in demanding environments.

How Does S71915 ACB/P4ADT Bearing Improve Performance?
In robotics, S71915 ACB/P4ADT Bearing enhances motion control in robotic arms, thanks to its matched arrangement and preload capability. The phenolic cage provides stability, even during rapid directional changes.

Built for Heavy-Duty Use: S71915 ACB/P4ADT Bearing
This bearing excels in aerospace applications, such as helicopter gearboxes, where its high dynamic load capacity is crucial. The grease lubrication ensures smooth operation across a broad temperature range.

Automotive vs Aerospace: Applications of S71915 ACB/P4ADT Bearing
In automotive systems, S71915 ACB/P4ADT Bearing supports high-performance transmissions, while in aerospace, it handles extreme loads in turbine engines. Its P4A tolerance class guarantees reliability in both fields.

Perfect Fit for Automation: S71915 ACB/P4ADT Bearing
S71915 ACB/P4ADT Bearing is ideal for automated production lines, where its low friction and high-speed capability improve efficiency. The chrome steel construction ensures long service life under continuous use.
