Single Row Deep Groove Ball Bearings R20-RS 15x38

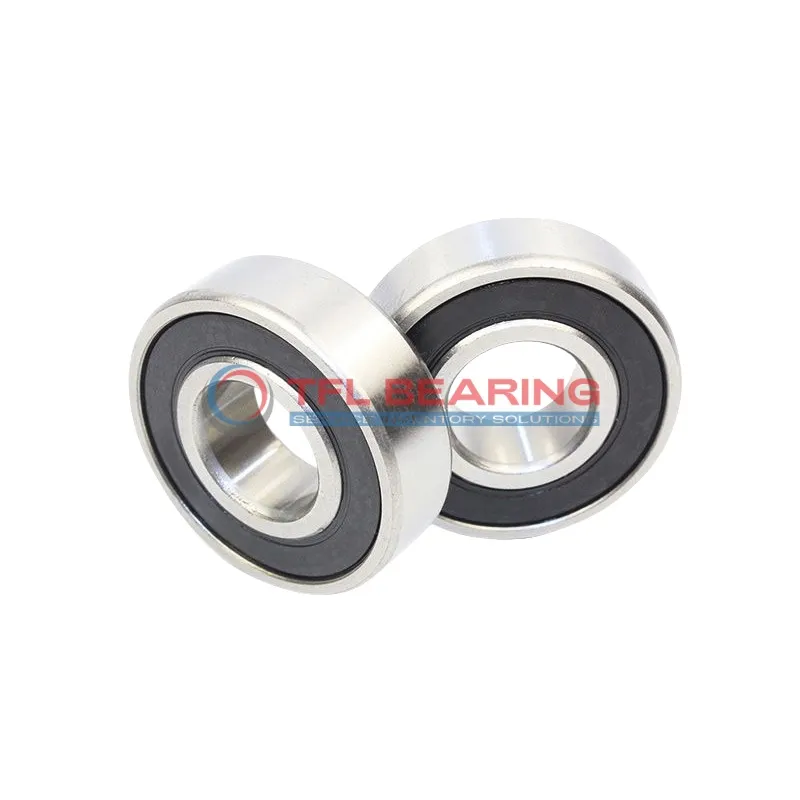

Single Row Deep Groove Ball Bearings R20-RS 15×38

The R20-RS 15×38 is a sealed single row deep groove ball bearing with a 1.25″ bore and 2.25″ outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 3695 lbf and operates smoothly at speeds up to 7000 RPM.

Its sealed design keeps dirt out and grease in, reducing maintenance needs. The chrome steel cage adds durability, making it a long-lasting choice.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF bearings, offering a reliable replacement option.

Ideal for applications like electric motors or small machinery where radial loads are common. Weighing just 102g, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number R20-RS 15x38
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Inch
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 1.25"
  • Bore Dia Tolerance -0.0005" to 0"
  • Outer Dia 2.25"
  • Outer Dia Tolerance -0.0005" to 0"
  • Width 0.375"
  • Width Tolerance -0.005" to 0"
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 3695 lbf
  • Static Radial Load 1986 lbf
  • Max Speed 7000 rpm
  • Weight 102 g
Single Row Deep Groove Ball Bearings R20-RS 15x38 dimension drawing
Download DWG Download PDF

Features

How Does R20-RS 15×38 Bearing Reduce Friction?

R20-RS 15×38 Bearing features a sealed design, preventing contaminants from entering and reducing friction.
Its chrome steel construction ensures smooth operation, even under radial loads up to 3695 lbf.

The single-row deep groove design enhances efficiency, making it suitable for various applications.
With a maximum speed of 7,000 rpm, it balances performance and durability.

R20-RS 15×38 Bearing operates in temperatures from -30°C to 120°C, adapting to different environments.
Its ABEC 1 tolerance class ensures reliable precision for everyday use.

Application

Key Fields for R20-RS 15×38 Bearing
R20-RS 15×38 Bearing works well in industrial equipment like conveyor belts and small machinery, where its sealed design keeps out dust and debris. The chrome steel construction ensures it can handle regular wear and tear.

In automotive applications, R20-RS 15×38 Bearing fits nicely in electric motors and pumps, providing smooth rotation under radial loads. Its inch sizing makes it a good match for older or custom-built vehicles.

For home appliances, R20-RS 15×38 Bearing is often used in fans and small power tools, where reliability matters. The sealed feature helps it last longer, even with frequent use.

Automation systems benefit from R20-RS 15×38 Bearing in robotic arms and precision tools, thanks to its consistent performance. The ABEC 1 tolerance ensures it meets basic accuracy needs without overcomplicating the design.
