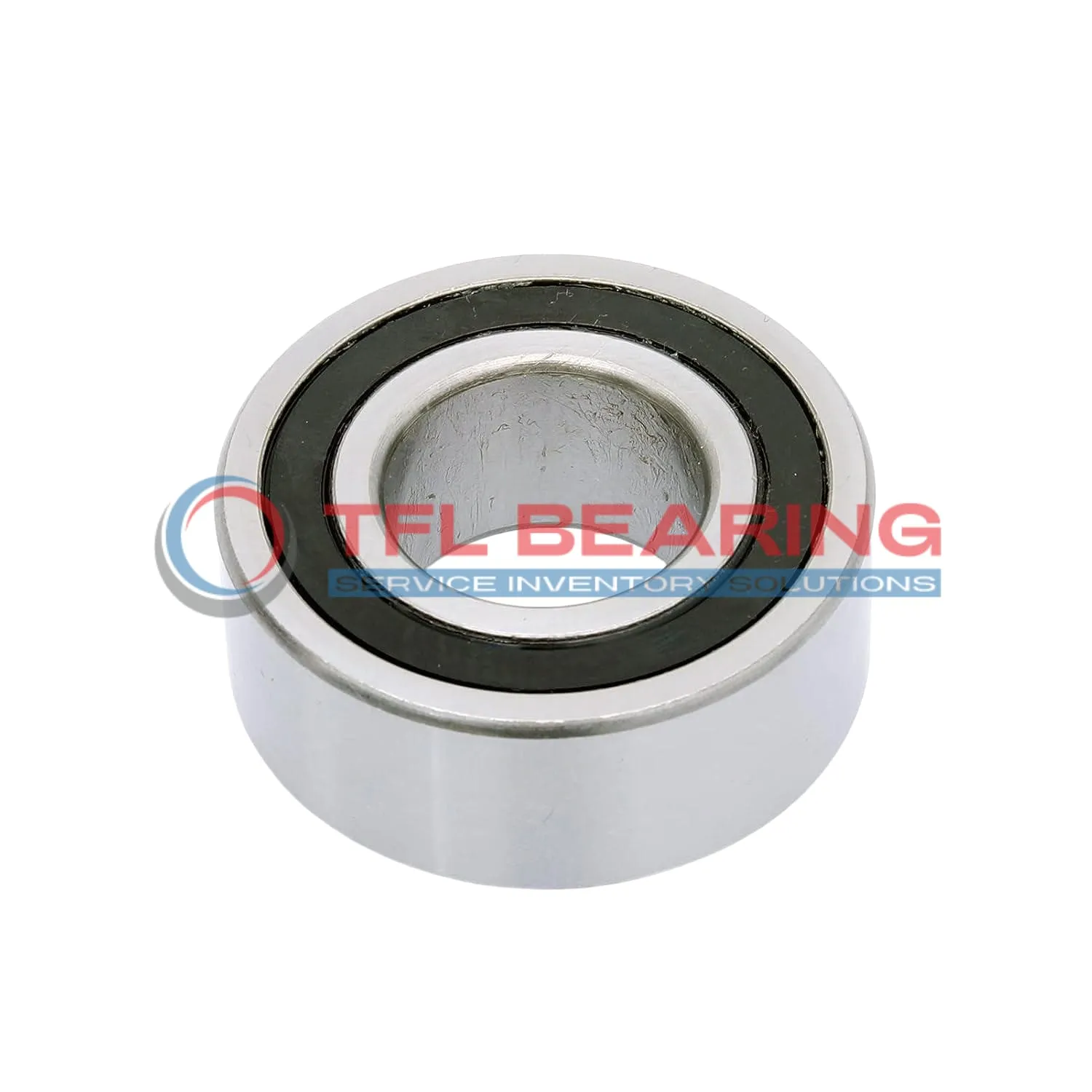

Super Precision Angular Contact Ball Bearings S7206 CDGA/P4A

Brand: TFL Bearing Interchangeable: SKF S7206 CDGA/P4A 30 mm × 62 mm × 16 mm Metric Sealed
Part number: S7206 CDGA/P4A
Super Precision Angular Contact Ball Bearings S7206 CDGA/P4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.004mm to 0
Width16 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadExtra light / Class A
Dynamic Radial Load5,445 lbf
Static Radial Load3,600 lbf
Temperature Range- 30°C to 110 °C
Max Speed100,500 rpm
Characteristics
Ball Qty13
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationGrease
Weight0.2 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7206 CDGA/P4A is a super precision angular contact ball bearing, measuring 30mm by 62mm by 16mm. Made from chrome steel, it handles radial loads up to 5445 lbf and spins smoothly at speeds up to 100,500 RPM.
Its 15° contact angle and sealed design ensure reliable performance in demanding conditions. The phenolic cage adds durability while keeping the weight light at just 0.2kg.
This bearing is ideal for high-precision applications like machine tools or spindles. It can be paired in back-to-back, face-to-face, or tandem arrangements for added versatility.
With a temperature range of -30°C to 110°C, it suits various industrial environments. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for easy replacement.

Features

Performance Features of S7206 CDGA/P4A Bearing

S7206 CDGA/P4A Bearing is crafted with a 15° contact angle, ideal for handling combined radial and axial loads efficiently.
Its chrome steel rings and balls ensure durability and smooth operation under high-speed conditions.

The phenolic cage maintains ball alignment, reducing friction and enhancing performance.
With a maximum speed of 100,500 rpm, it excels in precision applications requiring high rotational accuracy.

S7206 CDGA/P4A Bearing operates reliably in temperatures from -30°C to 110°C.
Its sealed design and grease lubrication minimise maintenance needs, ensuring long service life.

The P4A tolerance class guarantees superior precision, making it suitable for demanding industrial uses.
Its universal matching capability allows flexible arrangement options like back-to-back or face-to-face configurations.

Application

Key Fields for S7206 CDGA/P4A Bearing
S7206 CDGA/P4A Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate spindle rotation. The sealed construction helps keep contaminants out, extending service life in demanding workshop conditions.

Where Is S7206 CDGA/P4A Bearing Used?
You’ll often find S7206 CDGA/P4A Bearing in automotive transmissions, supporting smooth gear shifts with its extra light preload. Its phenolic cage reduces friction, making it ideal for high-revving applications.

Built for Heavy-Duty Use: S7206 CDGA/P4A Bearing
In robotics, S7206 CDGA/P4A Bearing handles combined loads in articulated arms, thanks to its 15° contact angle. The P4A tolerance class ensures consistent performance in automated assembly lines.

Medical vs Industrial: Where S7206 CDGA/P4A Bearing Excels
S7206 CDGA/P4A Bearing works well in medical centrifuges, offering quiet operation crucial for lab environments. Industrial pumps also benefit from its grease lubrication, reducing maintenance needs in continuous operations.

How Does S7206 CDGA/P4A Bearing Support High-Speed Operations?
With a max speed of 100,500 rpm, S7206 CDGA/P4A Bearing is perfect for dental drill handpieces. The chrome steel construction provides durability while maintaining precision under rapid rotation.
