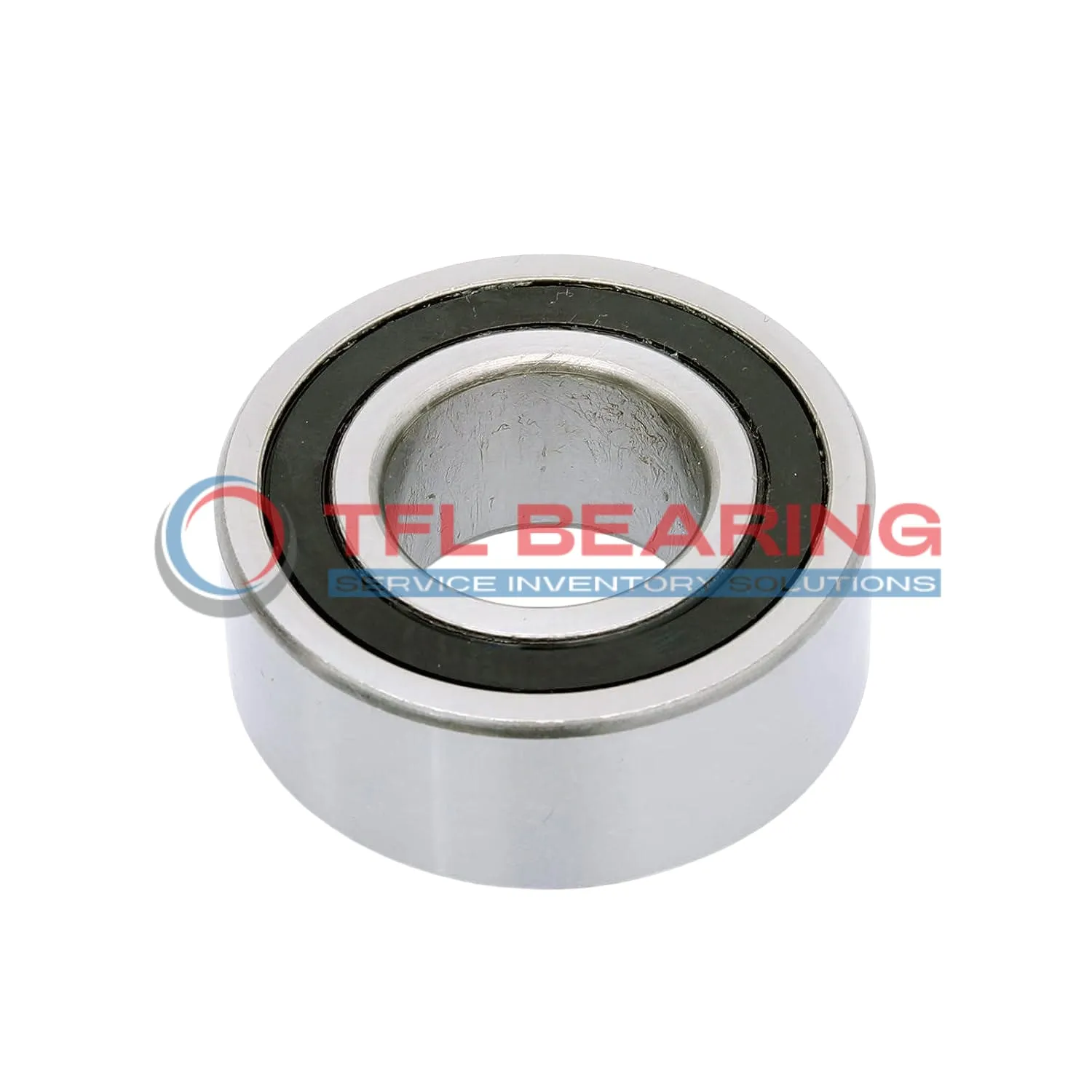

Super Precision Angular Contact Ball Bearings S7206 ACDGB/P4A

Brand: TFL Bearing Interchangeable: SKF S7206 ACDGB/P4A 30 mm × 62 mm × 16 mm Metric Sealed
Part number: S7206 ACDGB/P4A
Super Precision Angular Contact Ball Bearings S7206 ACDGB/P4A
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia62 mm
Outer Dia Tolerance-0.004mm to 0
Width16 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadLight / Class B
Dynamic Radial Load5,265 lbf
Static Radial Load3,442 lbf
Temperature Range- 30°C to 110 °C
Max Speed100,500 rpm
Characteristics
Ball Qty13
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeSealed
Matched ArrangementNo
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationGrease
Weight0.2 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The S7206 ACDGB/P4A is a super precision angular contact ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 5265 lbf and spins smoothly at speeds up to 100,500 RPM.
Its sealed design keeps grease in and contaminants out, while the phenolic cage ensures quiet operation. The 25° contact angle makes it ideal for handling combined radial and axial loads.
This bearing is suitable for high-precision applications like machine tool spindles or robotics. It operates reliably in temperatures from -30°C to 110°C and comes pre-greased for easy installation.
Weighing just 0.2kg, it’s lightweight yet robust. Compliant with P4A tolerance standards, it ensures precise performance in demanding setups.

Features

Performance Features of S7206 ACDGB/P4A Bearing

S7206 ACDGB/P4A Bearing is crafted with chrome steel rings and balls, ensuring durability and high performance.
Its 25° contact angle allows for efficient handling of combined radial and axial loads.

The phenolic cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a dynamic radial load capacity of 5265 lbf, it excels in demanding applications.

S7206 ACDGB/P4A Bearing operates at speeds up to 100,500 rpm, making it suitable for high-speed machinery.
Its sealed design protects against contaminants, ensuring reliable performance in various environments.

The P4A tolerance class guarantees precision, making it ideal for applications requiring high accuracy.
Light preload ensures minimal vibration and noise, enhancing overall efficiency.

Application

Industrial Uses of S7206 ACDGB/P4A Bearing
S7206 ACDGB/P4A Bearing is commonly used in high-speed machine tools, where its precision and angular contact design ensure accurate spindle performance. The sealed construction helps maintain lubrication, reducing downtime in demanding industrial environments.

What Makes S7206 ACDGB/P4A Bearing a Preferred Choice?
In automotive applications, S7206 ACDGB/P4A Bearing supports components like turbochargers and electric motors, thanks to its ability to handle combined radial and axial loads. The phenolic cage offers quiet operation, ideal for electric vehicle systems.

Perfect Fit for Automation: S7206 ACDGB/P4A Bearing
S7206 ACDGB/P4A Bearing excels in robotic arms and CNC machines, where its light preload and P4A tolerance class provide smooth, repeatable motion. The grease lubrication ensures long service life even in continuous operation.

Medical vs Industrial: Where S7206 ACDGB/P4A Bearing Excels
S7206 ACDGB/P4A Bearing is trusted in medical imaging devices for its quiet, vibration-free performance. In industrial settings, it’s equally reliable for high-speed compressors and pumps, thanks to its chrome steel construction.

Where to Use S7206 ACDGB/P4A Bearing
S7206 ACDGB/P4A Bearing is a go-to for 3D printers and precision instruments, where its 25° contact angle ensures stability. The metric sizing makes it easy to integrate into European and Asian equipment designs.
