Super Precision Angular Contact Ball Bearings S7024 ACD/P4AQBCC

Super Precision Angular Contact Ball Bearings S7024 ACD/P4AQBCC

The S7024 ACD/P4AQBCC is a super precision angular contact ball bearing with a 120mm bore and 180mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 65475 lbf and operates smoothly at speeds up to 10000 RPM.

Its sealed design keeps lubrication in and contaminants out, while the phenolic cage ensures quiet, long-lasting performance. The 25° contact angle and moderate preload (Class C) provide excellent stability for high-precision applications.

This set includes four matched bearings (QBC arrangement), ideal for demanding setups like machine tool spindles or high-speed robotics. It works reliably in temperatures from -30°C to 110°C.

Weighing 8.61kg, it’s robust yet precision-engineered for accuracy. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for easy replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7024 ACD/P4AQBCC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 112 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 19.05 mm
  • Ball Qty 22
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement 4 bearings <<>> QBC
  • Number Of Bearings In Matched Set 4
  • Universal Matching Bearing No
  • Preload Moderate / Class C
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 65475 lbf
  • Static Radial Load 104625 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 10000 rpm
  • Weight 8.61 kg

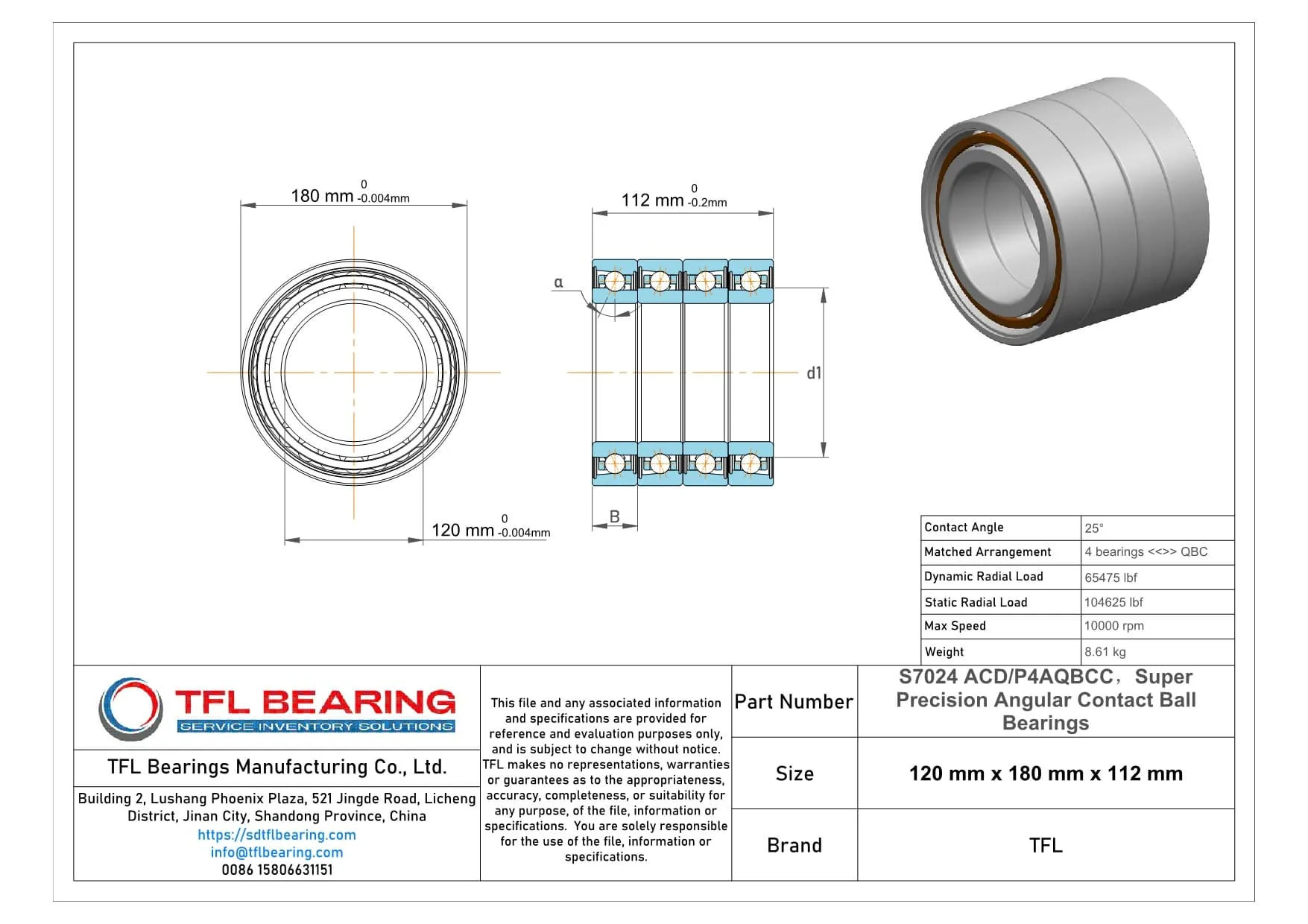

Super Precision Angular Contact Ball Bearings S7024 ACD/P4AQBCC dimension drawing
Download DWG Download PDF

Features

Performance Features of S7024 ACD/P4AQBCC Bearing

S7024 ACD/P4AQBCC Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction and wear.

The bearing set includes four matched units, providing balanced performance under moderate preload conditions.
With a dynamic radial load capacity of 65475 lbf, it handles demanding operations with ease.

S7024 ACD/P4AQBCC Bearing operates smoothly at speeds up to 10,000 rpm, thanks to its precision P4A tolerance class.
The sealed design and grease lubrication minimise maintenance, ensuring long-term reliability.

Application

Industrial Uses of S7024 ACD/P4AQBCC Bearing
S7024 ACD/P4AQBCC Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The sealed construction keeps contaminants out, extending service life in demanding workshop conditions.

What Makes S7024 ACD/P4AQBCC Bearing a Preferred Choice?
In automotive testing rigs, S7024 ACD/P4AQBCC Bearing handles combined radial and axial loads with ease, thanks to its 25° contact angle. The matched set arrangement provides consistent performance across multiple bearing positions.

Perfect Fit for Automation: S7024 ACD/P4AQBCC Bearing
S7024 ACD/P4AQBCC Bearing works well in robotic arms, where its phenolic cage reduces vibration during high-speed movements. The P4A tolerance class guarantees the precision needed for repeatable positioning tasks.

Medical vs Industrial: Where S7024 ACD/P4AQBCC Bearing Excels
While suitable for industrial grinders, S7024 ACD/P4AQBCC Bearing also performs reliably in medical imaging devices due to its smooth operation. The grease lubrication ensures quiet running in sensitive environments.
