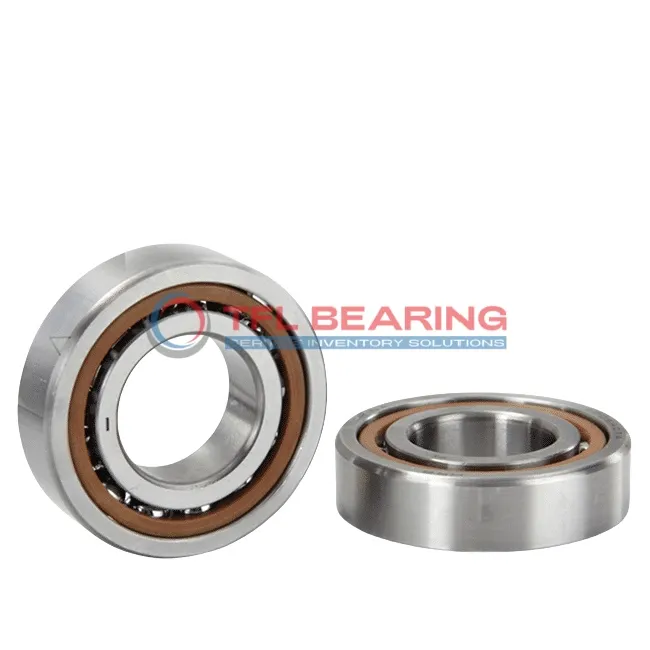

Super Precision Angular Contact Ball Bearings 71915 CD/P4ADGB

Brand: TFL Bearing Interchangeable: SKF 71915 CD/P4ADGB 75 mm × 105 mm × 32 mm Metric Open
Part number: 71915 CD/P4ADGB
Super Precision Angular Contact Ball Bearings 71915 CD/P4ADGB
In Stock
US$361.83 / piece
Reference price · volume pricing on request
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia75 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia105 mm
Outer Dia Tolerance-0.004mm to 0
Width32 mm
Width Tolerance-0.2mm to 0
Ball Dia9.525 mm
Performance
PreloadLight / Class B
Dynamic Radial Load13,162 lbf
Static Radial Load16,875 lbf
Temperature Range- 30°C to 110 °C
Max Speed36,000 rpm
Characteristics
Ball Qty26
Contact Angle15°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched ArrangementUniversal matching
Number Of Bearings In Matched Set2
Universal Matching BearingYes, back-to-back (<>), face-to-face (><) or tandem (>>)
For Load DirectionAngular Contact
LubricationLubricated
Weight0.7 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic
Dimension drawing · click to enlarge

Description

The 71915 CD/P4ADGB is a super precision angular contact ball bearing with a 75mm bore and 105mm outer diameter, crafted from high-quality chrome steel. It handles radial loads up to 13162 lbf and operates smoothly at speeds up to 36000 RPM.

Its 15° contact angle and universal matching design allow flexible arrangements like back-to-back or face-to-face, ideal for precision applications. The phenolic cage ensures durability and reduces friction.

This bearing comes pre-lubricated and works in temperatures from -30°C to 110°C. It’s interchangeable with SKF bearings, making it a reliable choice for replacements. Perfect for high-speed machinery like spindles or CNC equipment where precision is key.

Weighing 0.7kg, it’s part of a matched set of two bearings, offering versatility for complex setups. Compliant with P4A tolerance standards for exceptional accuracy.

Features

Performance Features of 71915 CD/P4ADGB Bearing

71915 CD/P4ADGB Bearing is crafted with a 15° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel construction ensures durability and high performance in precision applications.

The phenolic cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a dynamic radial load capacity of 13162 lbf, it excels in demanding conditions.

Designed for high-speed applications, 71915 CD/P4ADGB Bearing supports speeds up to 36,000 rpm.
Its universal matching feature allows flexible arrangement options for varied operational needs.

The open seal design simplifies maintenance while ensuring efficient lubrication.
Operating within a temperature range of -30°C to 110°C, it adapts to diverse environments.

Light preload class B enhances precision, making it suitable for high-accuracy machinery.
Its 26-ball configuration and 9.525 mm ball diameter contribute to balanced load distribution.

Application

Common Applications of 71915 CD/P4ADGB Bearing
71915 CD/P4ADGB Bearing is widely used in high-speed machine tools, where its precision angular contact design ensures accurate spindle rotation. The light preload and universal matching make it adaptable for various configurations, enhancing machine performance.

In robotics, 71915 CD/P4ADGB Bearing supports articulated arms, providing smooth movement and load handling. Its phenolic cage reduces friction, making it ideal for repetitive tasks in automated systems.

For aerospace applications, 71915 CD/P4ADGB Bearing’s chrome steel construction withstands rigorous conditions in flight control systems. The P4A tolerance class ensures reliability in critical components where precision is non-negotiable.

In medical imaging devices, 71915 CD/P4ADGB Bearing offers quiet and stable operation, essential for accurate diagnostics. The open design allows for easy lubrication, maintaining performance over extended periods.

Consumer electronics like high-end printers benefit from 71915 CD/P4ADGB Bearing’s low noise and high-speed capabilities. Its compact size fits seamlessly into designs where space is at a premium.
