Super Precision Angular Contact Ball Bearings S7020 ACD/P4AQGA

The S7020 ACD/P4AQGA is a super precision angular contact ball bearing with a 100mm bore and 150mm outer diameter, designed for high accuracy applications. Its 25° contact angle and sealed design ensure smooth operation under angular loads.

Made from chrome steel with a phenolic cage, it handles radial loads up to 46800 lbf and spins at speeds up to 16250 RPM. The extra light preload (Class A) reduces friction for efficient performance.

This bearing comes in a matched set of four, allowing universal arrangements like back-to-back or face-to-face mounting. Ideal for machine tools or high-speed spindles where precision is key.

Weighing 5.09kg, it operates in temperatures from -30°C to 110°C and is lubricated with grease for easy maintenance. Compliant with P4A tolerance standards for reliable performance.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number S7020 ACD/P4AQGA
Brand TFL
Interchangeable SKF
Bore Dia 100 mm
Bore Dia Tolerance -0.004mm to 0
Outer Dia 150 mm
Outer Dia Tolerance -0.004mm to 0
Width 96 mm
Width Tolerance -0.2mm to 0
Ball Dia 15.875 mm
Ball Qty 22
Contact Angle 25°
Tolerance Class P4A
System of Measurement Metric
Seal Type Sealed
Matched Arrangement Universal matching
Number Of Bearings In Matched Set 4
Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
Preload Extra light / Class A
For Load Direction Angular Contact
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Phenolic
Dynamic Radial Load 46800 lbf
Static Radial Load 72000 lbf
Lubrication Grease
Temperature Range - 30°C to 110 °C
Max Speed 16250 rpm
Weight 5.09 kg

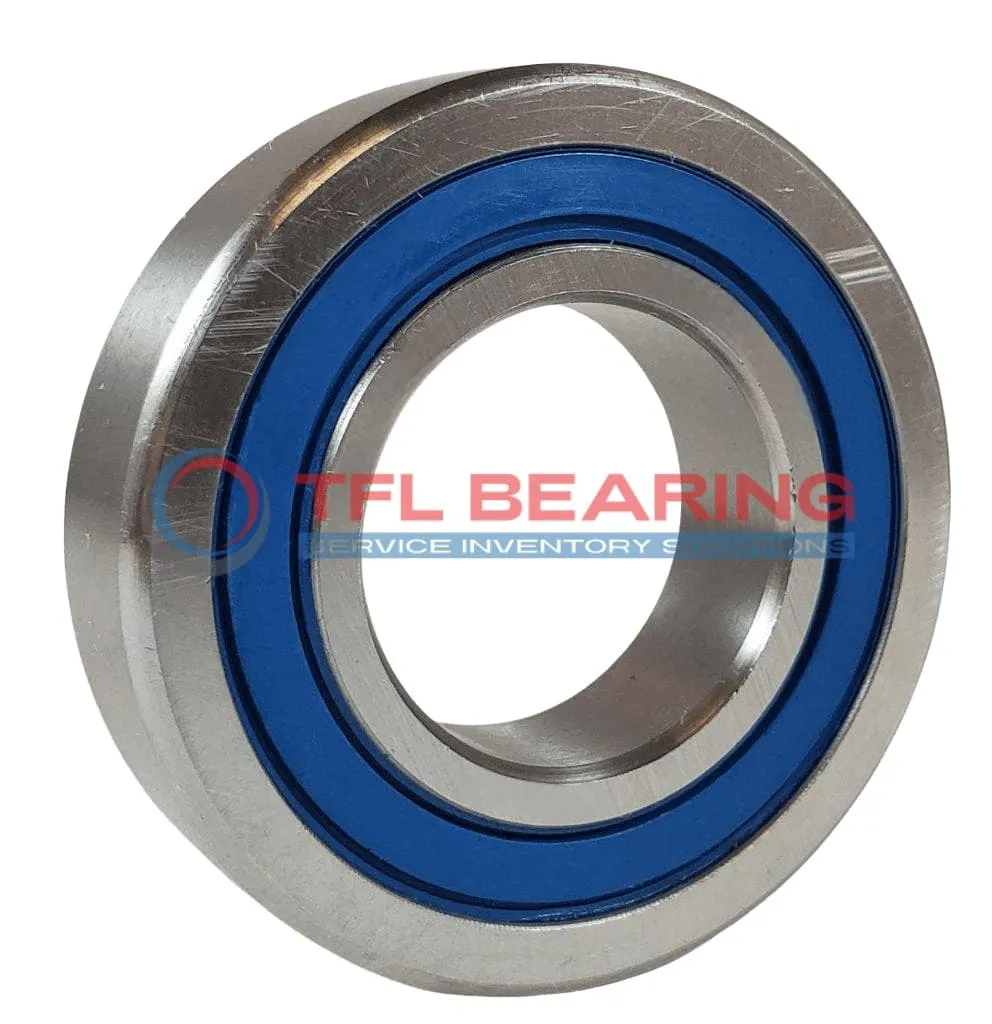

Super Precision Angular Contact Ball Bearings S7020 ACD/P4AQGA dimension drawing

Download DWG Download PDF

Features

Performance Features of S7020 ACD/P4AQGA Bearing

S7020 ACD/P4AQGA Bearing is crafted with chrome steel rings and balls, ensuring high precision and durability.
Its 25° contact angle provides excellent angular contact load capacity, ideal for complex applications.

The sealed design and phenolic cage enhance protection against contaminants while maintaining smooth operation.
With a dynamic radial load of 46,800 lbf, it handles demanding conditions with ease.

S7020 ACD/P4AQGA Bearing supports universal matching for versatile mounting configurations.
Its extra light preload ensures minimal friction, contributing to extended service life.

The bearing operates efficiently at speeds up to 16,250 rpm, balancing performance and reliability.
Its temperature range of -30°C to 110°C makes it suitable for various industrial environments.

Application

Key Fields for S7020 ACD/P4AQGA Bearing
S7020 ACD/P4AQGA Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The sealed construction helps maintain performance in environments with dust or debris.

In robotics, S7020 ACD/P4AQGA Bearing supports articulated arms, providing smooth movement under varying loads. Its universal matching feature allows flexible arrangement in complex assemblies.

For aerospace applications, S7020 ACD/P4AQGA Bearing’s phenolic cage and grease lubrication ensure reliability in extreme conditions. The P4A tolerance class meets stringent requirements for precision and durability.

Automotive testing equipment benefits from S7020 ACD/P4AQGA Bearing’s high-speed capability and radial load handling. The chrome steel construction offers long service life even in demanding test cycles.
