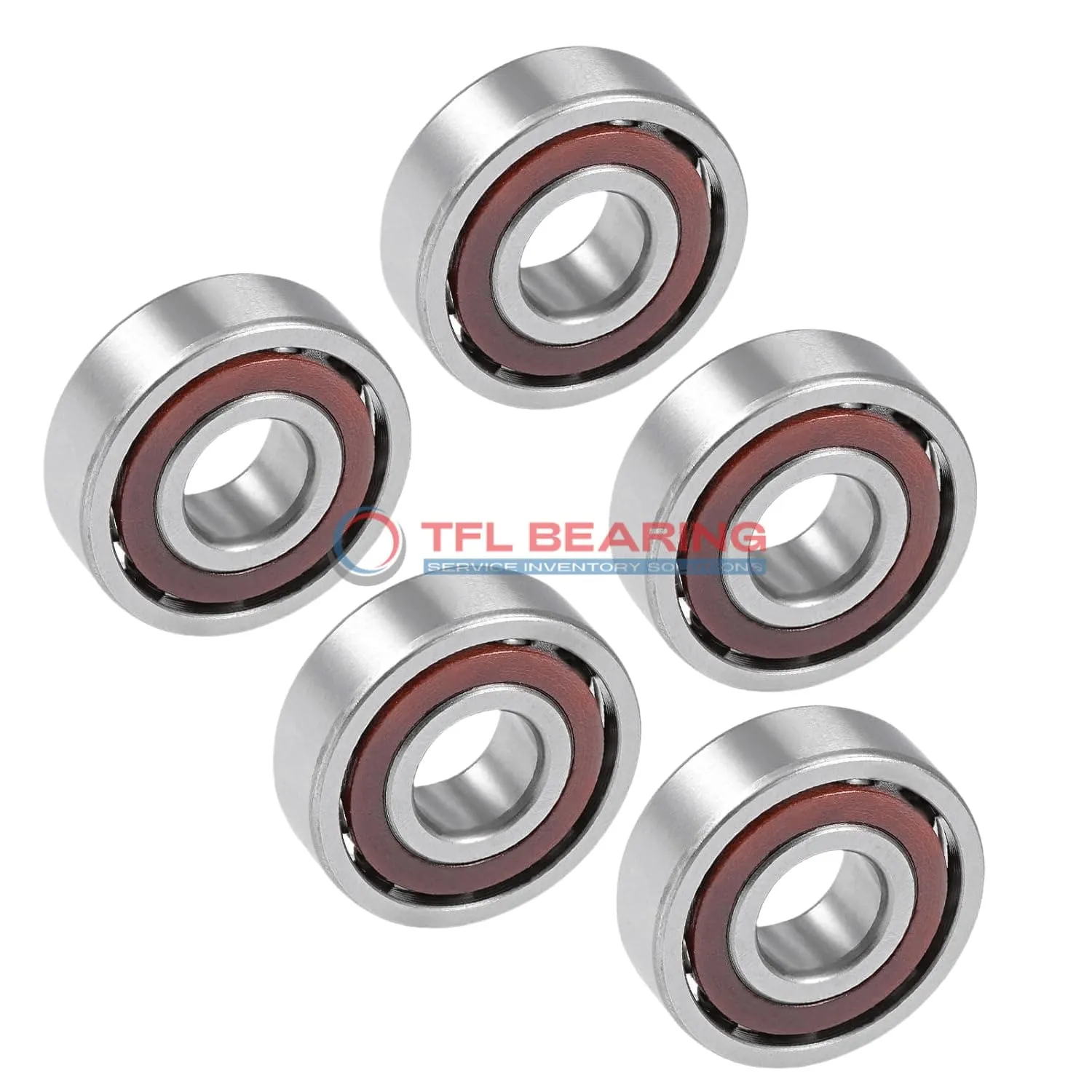

Super Precision Angular Contact Ball Bearings S7206 ACD/HCP4ADGC

Super Precision Angular Contact Ball Bearings S7206 ACD/HCP4ADGC

The S7206 ACD/HCP4ADGC is a super precision angular contact ball bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It features a 25° contact angle and ceramic balls for smooth operation.

This sealed bearing handles radial loads up to 8482 lbf and reaches speeds of 100,500 RPM with grease lubrication. Its phenolic cage and universal matching design ensure reliable performance in paired arrangements.

The moderate preload (Class C) and P4A tolerance make it ideal for high-precision applications like machine tool spindles. It works in temperatures from -30°C to 110°C.

Weighing 0.35kg, this set includes two bearings suitable for back-to-back, face-to-face, or tandem mounting. Interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number S7206 ACD/HCP4ADGC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 32 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 13
  • Contact Angle 25°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Sealed
  • Matched Arrangement Universal matching
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Moderate / Class C
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Ceramic
  • Cage Material Phenolic
  • Dynamic Radial Load 8482 lbf
  • Static Radial Load 6862 lbf
  • Lubrication Grease
  • Temperature Range - 30°C to 110 °C
  • Max Speed 100500 rpm
  • Weight 0.35 kg
Super Precision Angular Contact Ball Bearings S7206 ACD/HCP4ADGC dimension drawing
Download DWG Download PDF

Features

How Does S7206 ACD/HCP4ADGC Bearing Achieve High-Speed Performance?

S7206 ACD/HCP4ADGC Bearing features ceramic balls and a phenolic cage, reducing friction for smoother high-speed operation.
Its maximum speed of 100,500 rpm makes it suitable for demanding applications requiring precision and reliability.

The 25° contact angle enhances load distribution, improving performance under angular contact loads.
With a dynamic radial load capacity of 8482 lbf, it handles both speed and pressure efficiently.

S7206 ACD/HCP4ADGC Bearing’s sealed design protects against contaminants, ensuring consistent performance.
Its universal matching capability allows flexible arrangement options, including back-to-back or face-to-face configurations.

Application

Industrial Uses of S7206 ACD/HCP4ADGC Bearing
S7206 ACD/HCP4ADGC Bearing is commonly used in high-speed machine tools, where its precision and moderate preload ensure accurate spindle performance. The ceramic balls reduce friction, making it suitable for continuous operation.

In robotics, S7206 ACD/HCP4ADGC Bearing provides smooth motion control in articulated arms, thanks to its universal matching design. The sealed construction also protects against contaminants in dynamic environments.

For aerospace applications, S7206 ACD/HCP4ADGC Bearing handles angular loads in flight control systems, offering reliability under varying temperatures. Its phenolic cage adds durability without adding excessive weight.

What Makes S7206 ACD/HCP4ADGC Bearing a Preferred Choice?
S7206 ACD/HCP4ADGC Bearing excels in medical imaging devices, where its P4A tolerance class ensures minimal vibration. The grease lubrication extends service life, reducing maintenance needs.

In automation systems, S7206 ACD/HCP4ADGC Bearing supports high-speed conveyor belts, with its chrome steel rings resisting wear. The tandem arrangement option allows for custom load distribution in compact spaces.
