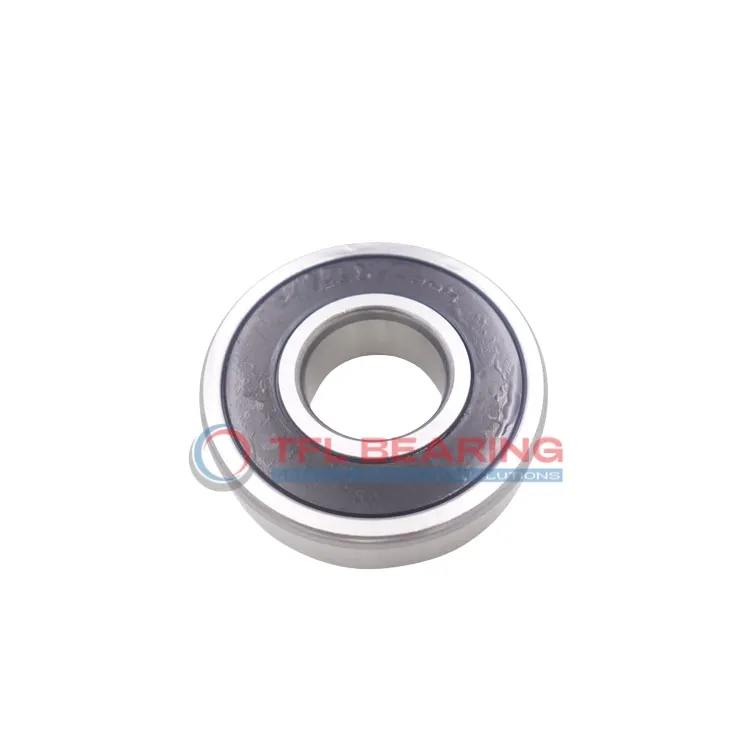

Stainless Steel Deep Groove Ball Bearings W 609-2RS1

Stainless Steel Deep Groove Ball Bearings W 609-2RS1

The W 609-2RS1 is a compact stainless steel deep groove ball bearing, measuring 9mm by 24mm by 7mm. It handles radial loads up to 456 lbf and spins smoothly at speeds up to 20,000 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction resists corrosion and lasts longer in harsh conditions.

This bearing works well in temperatures from -30°C to 120°C, suitable for damp or wet environments. It’s interchangeable with SKF models for easy replacement.

Ideal for small machinery, electric motors, or food processing equipment where hygiene matters. Weighing just 14 grams, it’s lightweight yet durable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 609-2RS1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 9 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 24 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 456 lbf
  • Static Radial Load 183 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 20000 rpm
  • Weight 0.014 kg
  • Price（$） 4.07
Stainless Steel Deep Groove Ball Bearings W 609-2RS1 dimension drawing
Download DWG Download PDF

Features

How Does W 609-2RS1 Bearing Reduce Friction?

W 609-2RS1 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design keeps contaminants out, maintaining consistent performance over time.

The single-row construction of W 609-2RS1 Bearing provides reliable radial load support up to 456 lbf.
With a maximum speed of 20,000 rpm, it delivers efficient performance in various applications.

W 609-2RS1 Bearing’s grease lubrication reduces wear, extending its service life.
The stainless steel cage ensures durability, even in demanding conditions.

Application

Industrial Uses of W 609-2RS1 Bearing
W 609-2RS1 Bearing is commonly used in small industrial machinery, such as pumps and compressors, where its sealed design helps keep contaminants out. The stainless steel construction ensures it performs well in humid or corrosive environments.

Where Is W 609-2RS1 Bearing Used?
In automotive applications, W 609-2RS1 Bearing can be found in electric motors and small gearboxes, providing reliable radial load support. Its compact size and metric dimensions make it a versatile choice for various vehicle components.

Perfect Fit for Automation: W 609-2RS1 Bearing
For automation equipment like small robotic arms, W 609-2RS1 Bearing offers smooth rotation and low maintenance due to its grease lubrication. The sealed design also extends its lifespan in dusty or wet conditions.

Medical vs Industrial: Where W 609-2RS1 Bearing Excels
In medical devices, W 609-2RS1 Bearing is suitable for precision instruments like dental tools, thanks to its consistent performance. Meanwhile, in industrial settings, it handles light loads in conveyor systems effectively.

Essential Roles of W 609-2RS1 Bearing
W 609-2RS1 Bearing is a reliable choice for household appliances like fans and small power tools, where quiet operation is important. Its stainless steel build ensures durability even with frequent use.
