Super Precision Angular Contact Ball Bearings 7220 CD/P4ATBTA

Super Precision Angular Contact Ball Bearings 7220 CD/P4ATBTA

The 7220 CD/P4ATBTA is a super precision angular contact ball bearing with a 100mm bore and 180mm outer diameter, crafted from high-quality chrome steel. It measures 100mm×180mm×102mm and comes in a set of three matched bearings for balanced performance.

This bearing handles radial loads up to 76050 lbf and spins smoothly at speeds up to 16250 RPM, thanks to its 15° contact angle and phenolic cage. Its extra-light preload ensures minimal friction during operation.

The open design allows for easy lubrication, while the P4A tolerance class guarantees tight precision. It operates reliably in temperatures from -30°C to 110°C, making it suitable for demanding environments.

Ideal for high-precision applications like machine tool spindles or industrial gearboxes, where accuracy and durability are key. Weighing 9.73kg, it’s a robust choice for heavy-duty use. Interchangeable with SKF bearings for convenient replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7220 CD/P4ATBTA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 102 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 25.4 mm
  • Ball Qty 15
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 3 bearings <>> TBT
  • Number Of Bearings In Matched Set 3
  • Universal Matching Bearing No
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 76050 lbf
  • Static Radial Load 91125 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 16250 rpm
  • Weight 9.73 kg

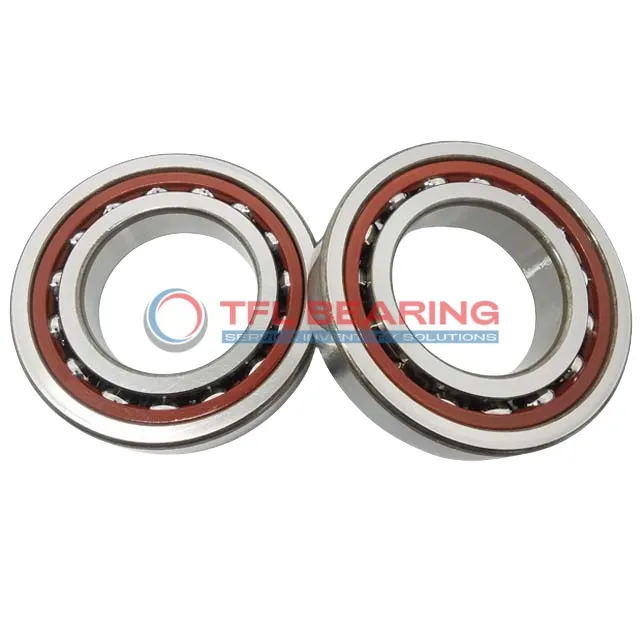

Super Precision Angular Contact Ball Bearings 7220 CD/P4ATBTA dimension drawing
Download DWG Download PDF

Features

Performance Features of 7220 CD/P4ATBTA Bearing

7220 CD/P4ATBTA Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability and consistent performance under high radial loads.

The phenolic cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a dynamic radial load capacity of 76050 lbf, it handles demanding conditions reliably.

7220 CD/P4ATBTA Bearing operates at speeds up to 16,250 rpm, balancing precision and efficiency.
Its extra light preload (Class A) ensures minimal resistance, ideal for high-precision tasks.

The open design allows for easy lubrication, extending service life in varied temperature ranges (-30°C to 110°C).
Matched sets of three bearings (TBT arrangement) provide enhanced stability for complex applications.

Application

Key Fields for 7220 CD/P4ATBTA Bearing
7220 CD/P4ATBTA Bearing is widely used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of three bearings provides stability in demanding operations.

In aerospace applications, 7220 CD/P4ATBTA Bearing handles radial and axial loads in turbine engines, thanks to its phenolic cage and chrome steel construction. Its extra-light preload also minimises friction at high speeds.

For robotics, 7220 CD/P4ATBTA Bearing offers reliable performance in articulated arms, where smooth movement is essential. The open seal design allows for easy lubrication, extending service life in continuous use.

Medical imaging systems benefit from 7220 CD/P4ATBTA Bearing’s precision, ensuring quiet and vibration-free operation. The P4A tolerance class guarantees consistent performance in sensitive environments.

In automotive testing equipment, 7220 CD/P4ATBTA Bearing supports high-speed rotors with minimal heat generation. Its durable design makes it suitable for long-term use in rigorous testing conditions.
