Super Precision Angular Contact Ball Bearings 7224 ACD/P4ATBTB

Brand: TFL Bearing Interchangeable: SKF 7224 ACD/P4ATBTB 120 mm × 215 mm × 120 mm Metric Open
Part number: 7224 ACD/P4ATBTB
Super Precision Angular Contact Ball Bearings 7224 ACD/P4ATBTB
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia120 mm
Bore Dia Tolerance-0.004mm to 0
Outer Dia215 mm
Outer Dia Tolerance-0.004mm to 0
Width120 mm
Width Tolerance-0.2mm to 0
Ball Dia30.162 mm
Performance
PreloadLight / Class B
Dynamic Radial Load92,250 lbf
Static Radial Load123,750 lbf
Temperature Range- 30°C to 110 °C
Max Speed10,000 rpm
Characteristics
Ball Qty15
Contact Angle25°
Tolerance ClassP4A
System of MeasurementMetric
Seal TypeOpen
Matched Arrangement3 bearings <>> TBT
Number Of Bearings In Matched Set3
Universal Matching BearingNo
For Load DirectionAngular Contact
LubricationLubricated
Weight16.3 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialPhenolic

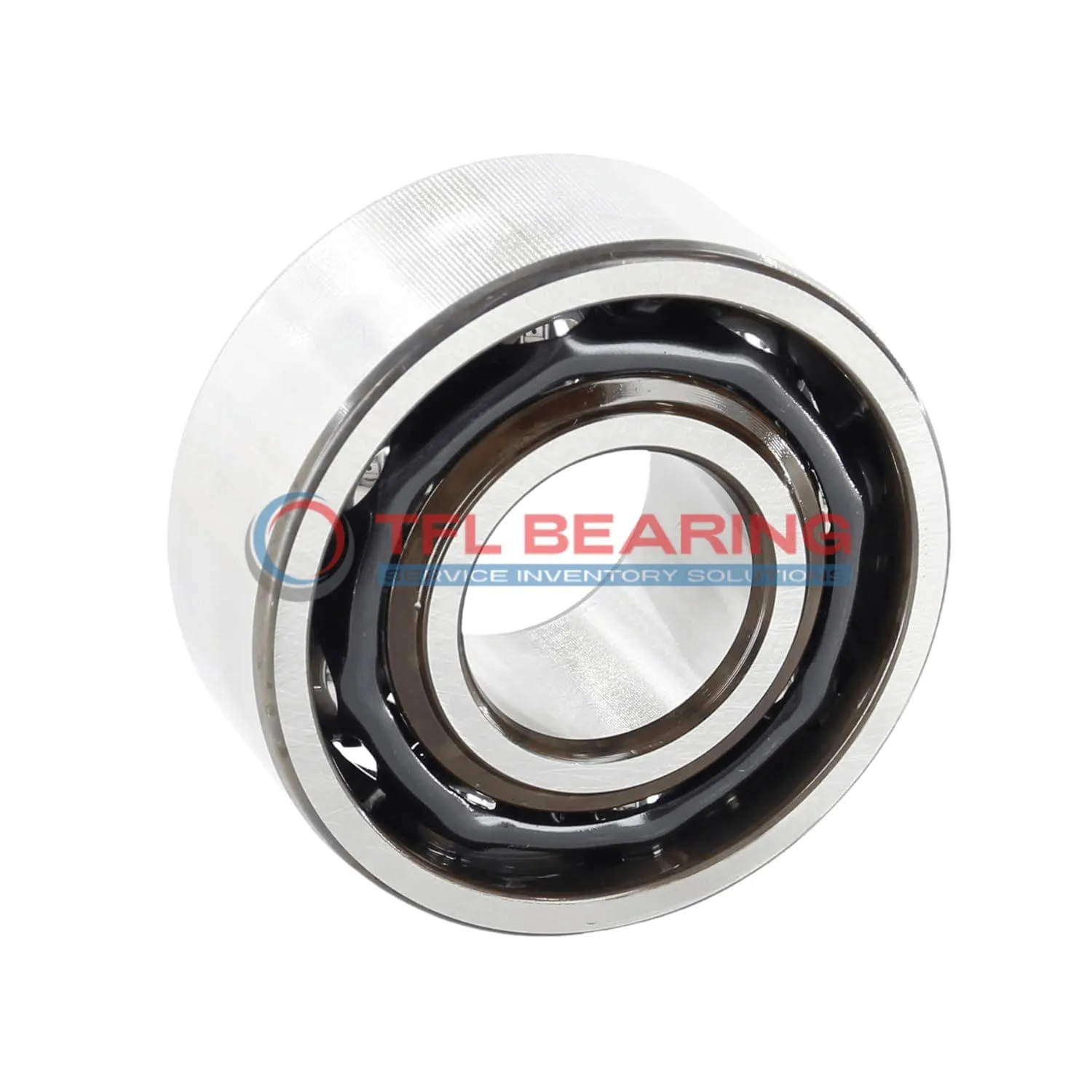

Dimension drawing · click to enlarge

Description

The 7224 ACD/P4ATBTB is a super precision angular contact ball bearing with a 120mm bore and 215mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 92250 lbf and operates smoothly at speeds up to 10000 RPM.

Its 25° contact angle and matched set of three bearings (arranged > TBT) provide excellent stability under angular loads. The phenolic cage ensures quiet, long-lasting performance.

Designed for precision applications, this bearing is ideal for machine tools or high-speed spindles. It works in temperatures from -30°C to 110°C and comes pre-lubricated for easy installation.

Weighing 16.3kg, it’s robust yet suitable for demanding environments. Compliant with P4A tolerance standards, it’s interchangeable with SKF bearings for reliable replacements.

Features

Performance Features of 7224 ACD/P4ATBTB Bearing

7224 ACD/P4ATBTB Bearing is designed with a 25° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability, supporting dynamic radial loads up to 92250 lbf.

The phenolic cage ensures smooth operation, even at high speeds of 10,000 rpm.
Precision-matched in sets of three, these bearings provide consistent performance in demanding conditions.

With a temperature range of -30°C to 110°C, 7224 ACD/P4ATBTB Bearing adapts to various environments.
Its P4A tolerance class guarantees high precision for critical applications.

The open design simplifies lubrication, maintaining efficiency over time.
Light preload (Class B) reduces vibration, ensuring quiet and reliable operation.

Application

Industrial Uses of 7224 ACD/P4ATBTB Bearing
7224 ACD/P4ATBTB Bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The matched arrangement of three bearings provides stability in heavy-cutting operations.

In aerospace applications, 7224 ACD/P4ATBTB Bearing supports helicopter rotor systems, handling both radial and axial loads efficiently. Its phenolic cage offers lightweight durability, ideal for high-speed rotations.

For automation equipment, 7224 ACD/P4ATBTB Bearing enables smooth motion in robotic arms, thanks to its P4A tolerance class. The open seal design allows for easy lubrication, extending service life in continuous operations.

Medical imaging devices benefit from 7224 ACD/P4ATBTB Bearing’s low vibration, ensuring clear scans without interference. The chrome steel construction maintains precision even under constant use.

In wind turbines, 7224 ACD/P4ATBTB Bearing handles variable loads from changing wind conditions. Its light preload setting reduces friction, improving energy efficiency.
