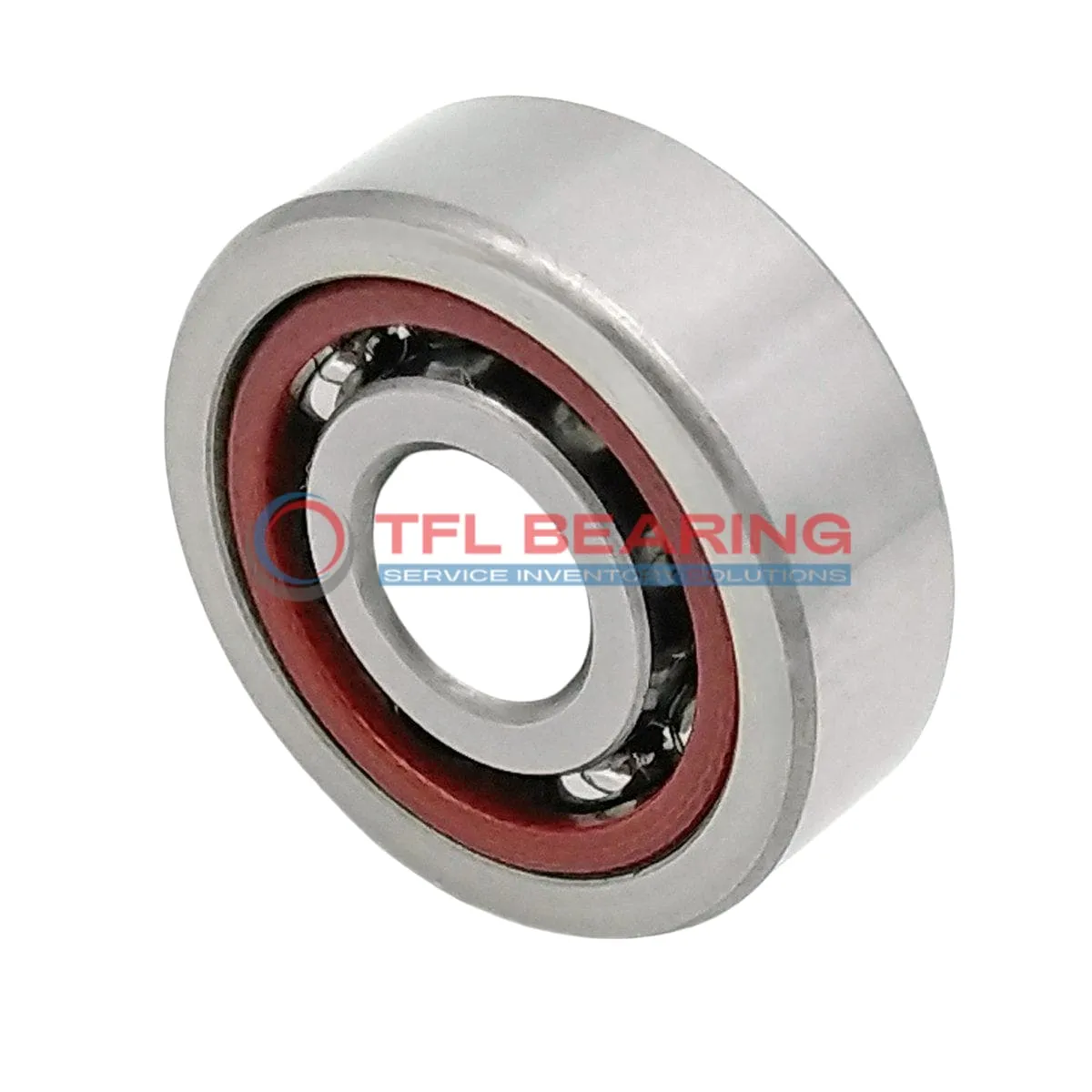

Super Precision Angular Contact Ball Bearings 7206 CD/P4ADBB

Super Precision Angular Contact Ball Bearings 7206 CD/P4ADBB

The 7206 CD/P4ADBB is a super precision angular contact ball bearing with a 30mm bore and 62mm outer diameter, crafted from robust chrome steel. It handles radial loads up to 8932 lbf and spins smoothly at speeds up to 71,500 RPM.

Its 15° contact angle and matched arrangement (2 bearings DB) provide excellent stability under angular loads. The phenolic cage ensures quiet operation and durability, even at high speeds.

This bearing is lubricated for easy maintenance and performs well in temperatures from -30°C to 110°C. Ideal for precision applications like machine tool spindles or high-speed robotics.

Weighing 0.39kg, it meets P4A tolerance standards for exceptional accuracy. Interchangeable with SKF bearings, making it a reliable choice for replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7206 CD/P4ADBB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 32 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 9.525 mm
  • Ball Qty 13
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings <> DB
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Light / Class B
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 8932 lbf
  • Static Radial Load 7200 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 71500 rpm
  • Weight 0.39 kg
Super Precision Angular Contact Ball Bearings 7206 CD/P4ADBB dimension drawing
Download DWG Download PDF

Features

Performance Features of 7206 CD/P4ADBB Bearing

7206 CD/P4ADBB Bearing is designed with a 15° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure durability under dynamic radial loads up to 8932 lbf.

The matched arrangement of two bearings in a DB configuration enhances stability and precision.
With a maximum speed of 71,500 rpm, it delivers reliable performance in high-speed operations.

Phenolic cage material reduces friction, contributing to smoother operation.
Its P4A tolerance class ensures high precision, making it suitable for demanding applications.

The light preload (Class B) minimises vibration and noise.
Operating between -30°C to 110°C, 7206 CD/P4ADBB Bearing performs well in varied temperature conditions.

Application

Industrial Uses of 7206 CD/P4ADBB Bearing
7206 CD/P4ADBB Bearing is commonly used in machine tools, where its super precision and angular contact design ensure accurate spindle rotation. The matched arrangement of two bearings provides stability in high-speed operations.

Where Is 7206 CD/P4ADBB Bearing Used?
In automotive applications, 7206 CD/P4ADBB Bearing supports gearbox systems, offering reliable performance under radial and axial loads. Its phenolic cage reduces friction, making it suitable for long-term use.

Built for Heavy-Duty Use: 7206 CD/P4ADBB Bearing
7206 CD/P4ADBB Bearing excels in robotics, particularly in robotic arms requiring precise movement. The light preload ensures smooth operation without excessive wear.

Medical vs Industrial: Where 7206 CD/P4ADBB Bearing Excels
7206 CD/P4ADBB Bearing is ideal for medical imaging devices, where its P4A tolerance class guarantees precision. In industrial settings, it handles heavy loads in conveyor systems effortlessly.

Perfect Fit for Automation: 7206 CD/P4ADBB Bearing
7206 CD/P4ADBB Bearing is a great choice for 3D printers, ensuring smooth linear motion. Its chrome steel construction provides durability in continuous operation.
