Super Precision Angular Contact Ball Bearings 71814 ACDGA/P4

Super Precision Angular Contact Ball Bearings 71814 ACDGA/P4

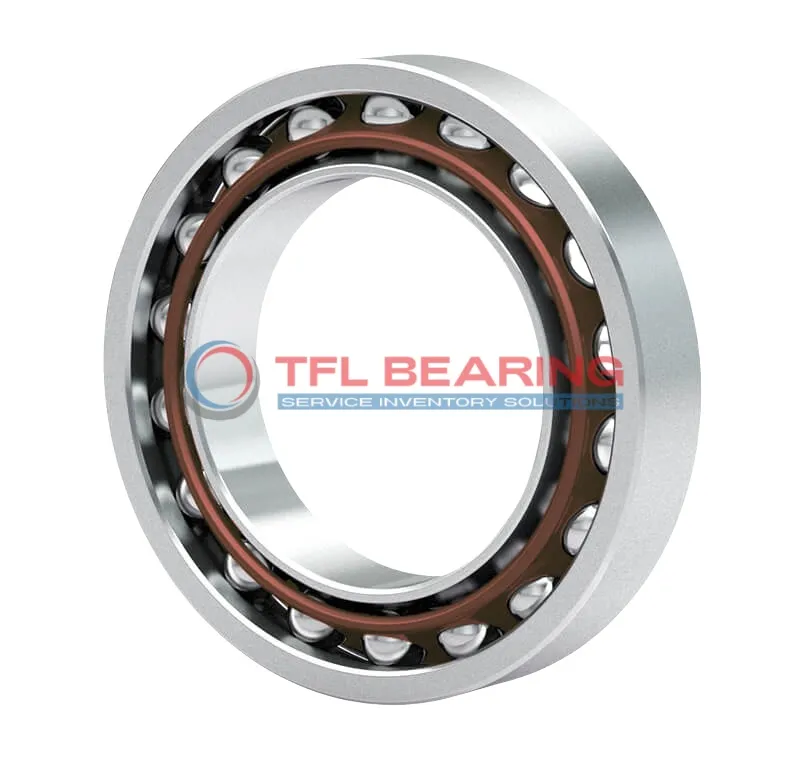

The 71814 ACDGA/P4 is a super precision angular contact ball bearing with a 70mm bore and 90mm outer diameter, crafted from high-quality chrome steel. Its 25° contact angle efficiently manages both radial and axial loads, making it versatile for various applications.

With a dynamic radial load capacity of 2925 lbf, it handles high-speed operations up to 28,000 RPM smoothly. The phenolic cage ensures durability and reduces friction, enhancing performance.

Designed for extra light preload (Class A), it offers precise movement and minimal vibration. Its open seal type allows easy lubrication, ideal for maintenance-friendly setups.

This bearing is interchangeable with SKF models and comes in matched sets of four for universal mounting options (back-to-back, face-to-face, or tandem). Perfect for precision machinery like spindles or CNC equipment.

Weighing just 0.13kg, it’s lightweight yet robust, suitable for temperatures from -30°C to 110°C. A reliable choice for engineers needing accuracy and durability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 71814 ACDGA/P4
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 10 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 5.556 mm
  • Ball Qty 31
  • Contact Angle 25°
  • Tolerance Class P4
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement No
  • Number Of Bearings In Matched Set 4
  • Universal Matching Bearing Yes, back-to-back (<>), face-to-face (><) or tandem (>>)
  • Preload Extra light / Class A
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 2925 lbf
  • Static Radial Load 3375 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 28000 rpm
  • Weight 0.13 kg
Super Precision Angular Contact Ball Bearings 71814 ACDGA/P4 dimension drawing
Download DWG Download PDF

Features

Performance Features of 71814 ACDGA/P4 Bearing

71814 ACDGA/P4 Bearing is designed for precision with a 25° contact angle, ideal for angular contact applications.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.

With a dynamic radial load capacity of 2925 lbf, it handles demanding conditions reliably.
The P4 tolerance class guarantees high precision, making it suitable for critical tasks.

Operating at speeds up to 28,000 rpm, it balances performance and efficiency.
Its temperature range of -30°C to 110°C ensures stability in varied environments.

Application

Essential Roles of 71814 ACDGA/P4 Bearing
71814 ACDGA/P4 Bearing is widely used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The extra light preload makes it ideal for applications demanding minimal friction and smooth operation.

In robotics, 71814 ACDGA/P4 Bearing supports articulated arms, providing stability during high-speed movements. Its phenolic cage offers excellent durability, even in continuous operation scenarios.

For medical imaging devices, 71814 ACDGA/P4 Bearing’s P4 tolerance class guarantees consistent performance in sensitive equipment. The chrome steel construction ensures long-lasting reliability in sterile environments.

Automotive applications benefit from 71814 ACDGA/P4 Bearing in electric motor systems, where its high-speed capability enhances efficiency. The open design allows for easy lubrication, extending service life in demanding conditions.

In aerospace systems, 71814 ACDGA/P4 Bearing handles precise angular loads in control mechanisms. Its lightweight phenolic cage reduces overall weight without compromising strength.
