Single Row Deep Groove Ball Bearings 16020/W64

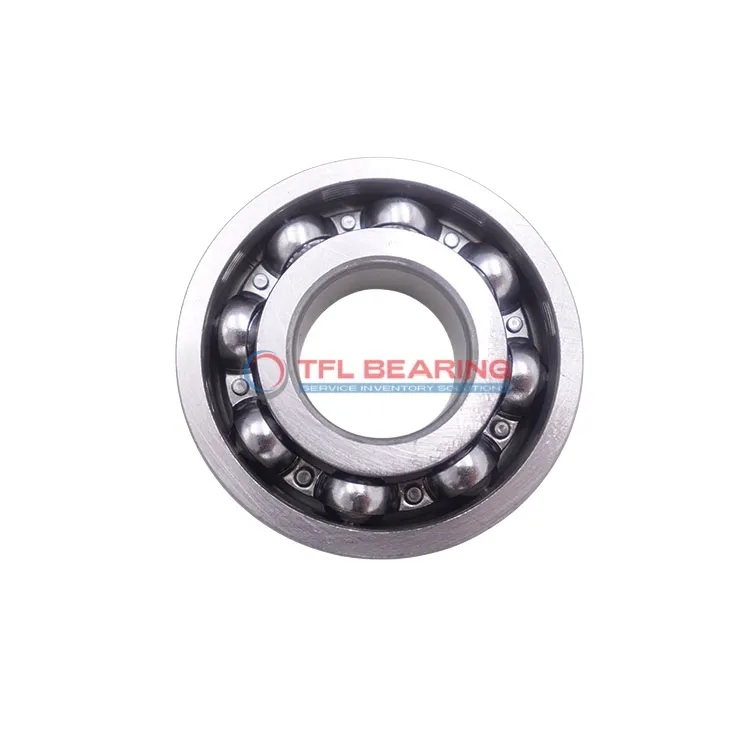

Single Row Deep Groove Ball Bearings 16020/W64

The 16020/W64 is a single row deep groove ball bearing with a 100mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It supports radial loads up to 9847 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. Suitable for applications like electric motors or pumps where radial loads are predominant.

Weighing 740g, it balances strength and compactness. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16020/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 16 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 9847 lbf
  • Static Radial Load 9959 lbf
  • Max Speed 3800 rpm
  • Weight 740 g
  • price（$） 72.981
Single Row Deep Groove Ball Bearings 16020/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16020/W64 Bearing

16020/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 9847 lbf, ensuring reliable performance in various applications.

The solid oil lubrication reduces friction, enhancing smooth operation and extending maintenance intervals.
With a maximum speed of 3,800 rpm, it balances durability and efficiency for consistent use.

16020/W64 Bearing operates in temperatures from -30° to 120°C, making it suitable for diverse environments.
The open design simplifies installation, saving time and effort during setup.

Application

Industrial Uses of 16020/W64 Bearing
16020/W64 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The solid oil lubrication helps extend service life in continuous operation environments.

Where Is 16020/W64 Bearing Used?
You’ll often find 16020/W64 Bearing in automotive applications such as wheel hubs and transmission systems. Its chrome steel construction provides durability under high-speed conditions.

Built for Heavy-Duty Use: 16020/W64 Bearing
16020/W64 Bearing handles radial loads efficiently in construction equipment like conveyor belts. The open design allows for easy inspection and maintenance in dusty environments.

Automotive vs Industrial: Applications of 16020/W64 Bearing
In automotive settings, 16020/W64 Bearing supports smooth rotation in alternators and fans. For industrial uses, it’s a go-to choice for gearboxes due to its balanced load distribution.

Perfect Fit for Automation: 16020/W64 Bearing
16020/W64 Bearing works well in robotic arms and assembly line equipment, where precision is key. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.
