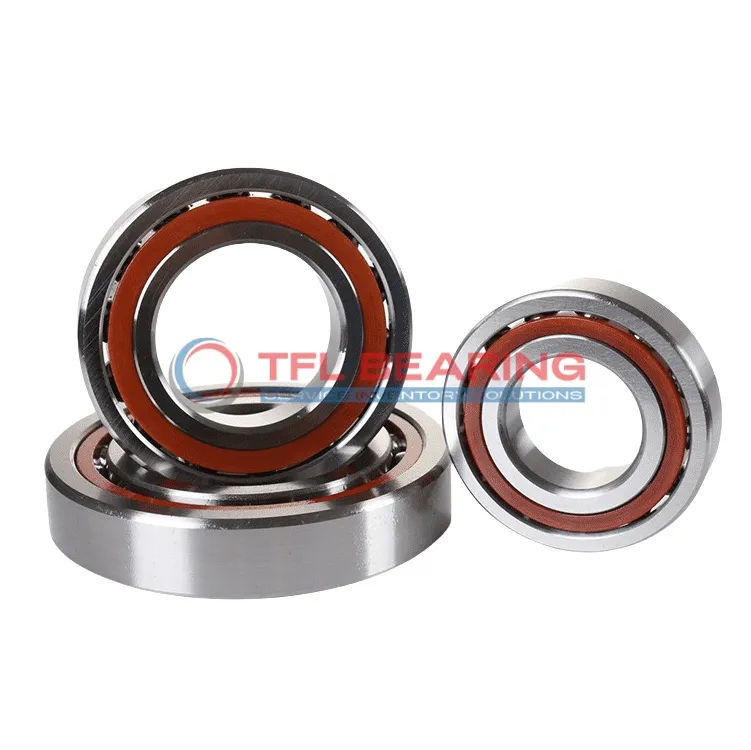

Super Precision Angular Contact Ball Bearings 7016 CD/P4ADFC

Super Precision Angular Contact Ball Bearings 7016 CD/P4ADFC

The 7016 CD/P4ADFC is a super precision angular contact ball bearing with an 80mm bore and 125mm outer diameter, crafted from high-quality chrome steel. It features a 15° contact angle and comes in a matched set of two bearings arranged face-to-face for balanced performance.

This bearing handles dynamic radial loads up to 23850 lbf and operates smoothly at speeds up to 28000 RPM. Its phenolic cage ensures durability while the open design allows for easy lubrication.

With a moderate preload (Class C), it offers stable operation in applications requiring high precision. The P4A tolerance class guarantees tight dimensional control for demanding setups.

Ideal for machine tools or high-speed spindles, it works in temperatures from -30°C to 110°C. Weighing 1.71kg, it’s robust yet manageable for its size. Interchangeable with SKF bearings for convenient replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 7016 CD/P4ADFC
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.004mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.004mm to 0
  • Width 44 mm
  • Width Tolerance -0.2mm to 0
  • Ball Dia 14.288 mm
  • Ball Qty 20
  • Contact Angle 15°
  • Tolerance Class P4A
  • System of Measurement Metric
  • Seal Type Open
  • Matched Arrangement 2 bearings >< DF
  • Number Of Bearings In Matched Set 2
  • Universal Matching Bearing No
  • Preload Moderate / Class C
  • For Load Direction Angular Contact
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Phenolic
  • Dynamic Radial Load 23850 lbf
  • Static Radial Load 27450 lbf
  • Lubrication Lubricated
  • Temperature Range - 30°C to 110 °C
  • Max Speed 28000 rpm
  • Weight 1.71 kg
Super Precision Angular Contact Ball Bearings 7016 CD/P4ADFC dimension drawing
Download DWG Download PDF

Features

Why Choose 7016 CD/P4ADFC Bearing for Precision Tasks?

7016 CD/P4ADFC Bearing features a 15° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls ensure durability, while the phenolic cage reduces friction for smoother operation.

With a dynamic radial load capacity of 23,850 lbf, it performs reliably in high-demand applications.
The P4A tolerance class guarantees exceptional accuracy, making it suitable for precision machinery.

Designed for moderate preload, 7016 CD/P4ADFC Bearing maintains stability even at high speeds up to 28,000 rpm.
Its open design allows easy lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 7016 CD/P4ADFC Bearing
This bearing is commonly used in high-precision machine tools, where its angular contact design ensures accurate spindle rotation. The moderate preload and P4A tolerance make it suitable for applications demanding tight control.

In automotive systems, 7016 CD/P4ADFC Bearing supports high-speed components like turbochargers and transmission shafts. Its chrome steel construction provides durability under continuous angular loads.

For robotics, 7016 CD/P4ADFC Bearing offers reliable performance in articulated arms and precision joints. The matched DF arrangement enhances stability in dynamic movements.

Medical imaging devices benefit from 7016 CD/P4ADFC Bearing’s smooth operation and low vibration. The phenolic cage reduces friction, ensuring quiet performance in sensitive environments.

In aerospace applications, 7016 CD/P4ADFC Bearing handles both radial and axial loads in control systems. Its high-speed capability and temperature resistance make it a dependable choice.
