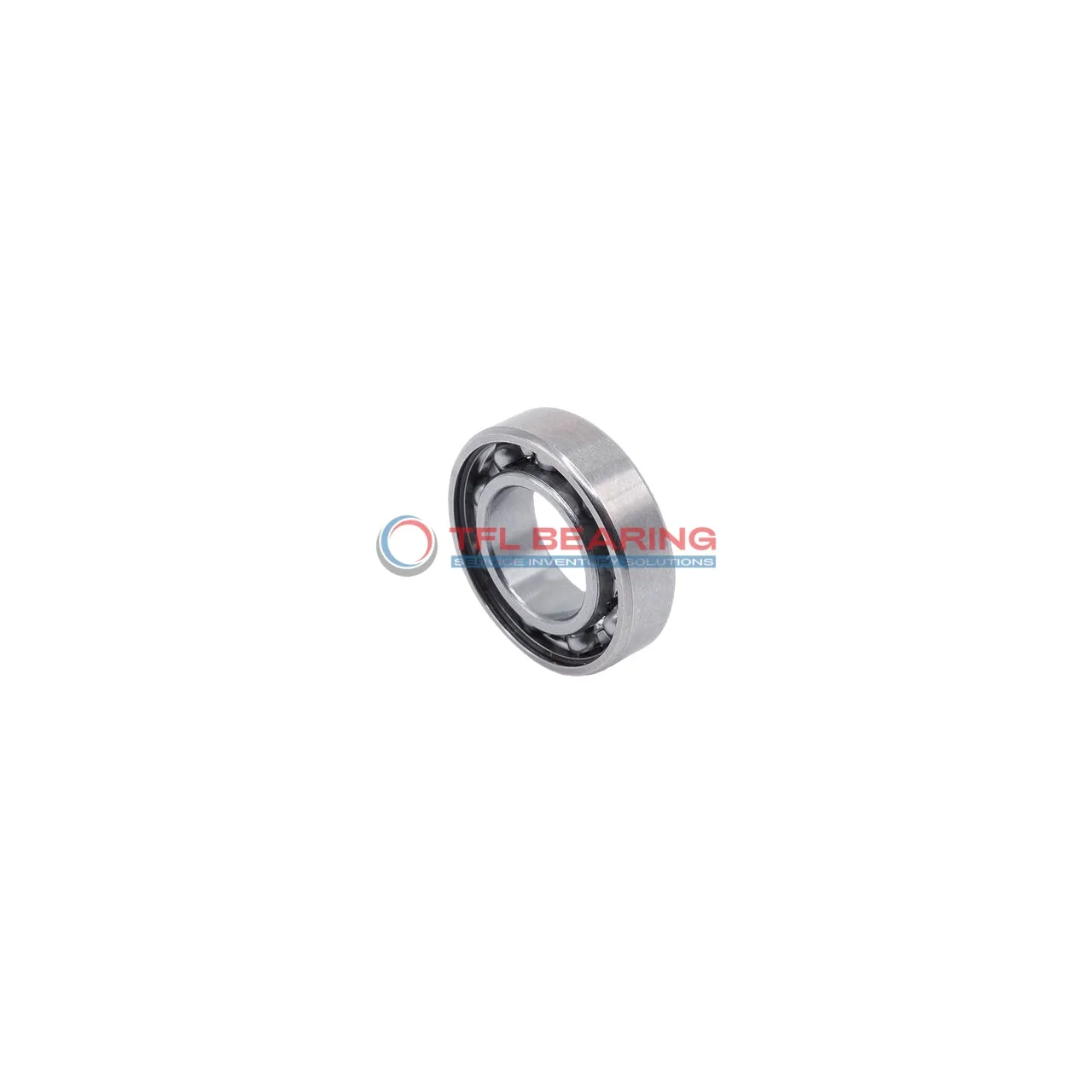

Single Row Deep Groove Ball Bearings 6408/W64

Single Row Deep Groove Ball Bearings 6408/W64

The 6408/W64 is a single-row deep groove ball bearing with a 40mm bore and 110mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 1432 lbf and operates smoothly at speeds up to 6700 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage enhances durability. The bearing works efficiently in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 1250g, it offers a robust build for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable option for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6408/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 27 mm
  • Width Tolerance -0.120mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 1432 lbf
  • Static Radial Load 8206 lbf
  • Max Speed 6700 rpm
  • Weight 1250 g
Single Row Deep Groove Ball Bearings 6408/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6408/W64 Bearing

6408/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1432 lbf, making it suitable for various industrial applications.

The solid oil lubrication ensures smooth operation and reduces the need for frequent maintenance.
With a maximum speed of 6,700 rpm, it delivers reliable performance in demanding conditions.

6408/W64 Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its open design allows for easy inspection and maintenance, saving time and effort.

Application

Essential Roles of 6408/W64 Bearing
6408/W64 Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

Where Is 6408/W64 Bearing Used?
In automotive applications, 6408/W64 Bearing supports components like alternators and water pumps, ensuring smooth operation. Its chrome steel construction provides durability under high-speed conditions, making it a reliable choice for vehicle systems.

Built for Heavy-Duty Use: 6408/W64 Bearing
For automation equipment, 6408/W64 Bearing offers stability in robotic arms and conveyor systems. The solid oil lubrication reduces maintenance needs, making it ideal for continuous operation in manufacturing plants.

Medical vs Industrial: Where 6408/W64 Bearing Excels
In medical devices, 6408/W64 Bearing ensures precision in imaging equipment and lab instruments. Its ISO P0 tolerance guarantees consistent performance, while the chrome steel cage enhances wear resistance in high-use environments.
